DJI FPV Combo

by DJI
Raspoloživost: Isporuka 7-10 dana
SKU
CP.FP.00000002.01

Immersive Flight Experience
4K/60fps Super-Wide 150° FOV
10km HD Low-Latency Video Transmission
Brand-New S Mode
Emergency Brake and Hover

1.379,00 €/10.390,08kn 1.103,20 €/8.312,06kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • DJI FPV Drone
  • DJI FPV Intelligent Flight Battery
  • DJI FPV Propellers (Pair)
  • DJI FPV Gimbal Protector
  • DJI FPV Top Shell
  • DJI FPV Remote Controller 2
  • Spare Control Sticks (Pair)
  • DJI FPV Goggles V2
  • DJI FPV Goggles Antenna (Dual Band)
  • DJI FPV Goggles Battery
  • DJI FPV Goggles Power Cable (USB-C)
  • DJI FPV Goggles Headband
  • DJI FPV Goggles Foam Padding
  • DJI FPV AC Power Adapter
  • DJI FPV AC Power Cable
  • USB-C Data Cable
  • USB-C OTG Cable

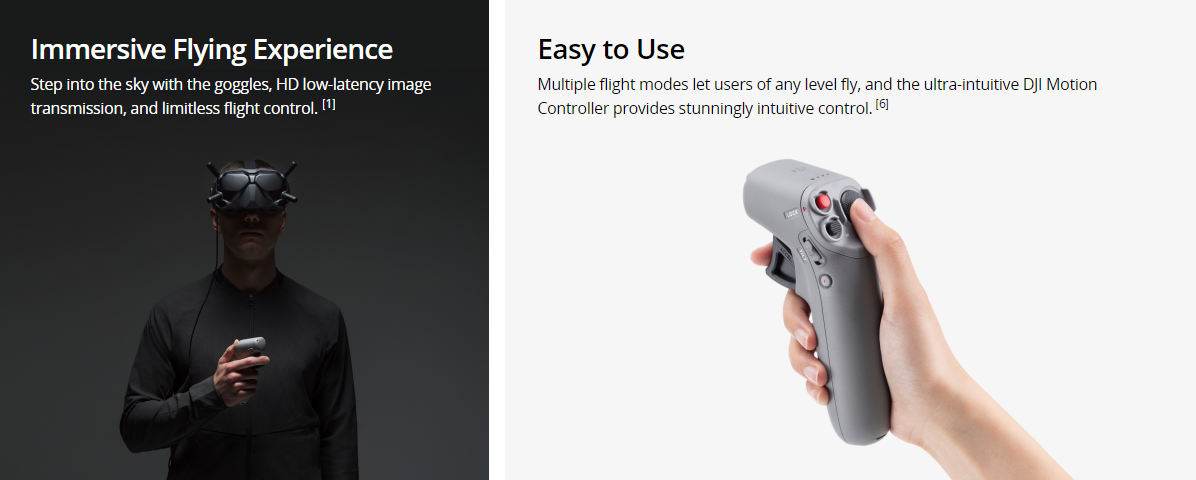

Fully immerse yourself in the amazing aerial views and unbridled speed of drone flying with the combo version of the DJI FPV Drone. Using the bundled FPV Goggles V2, you get a first-person view of what the drone sees, with footage that makes it feel like you're the one flying through the sky. The onboard 4K60 fps gimbal camera can send low-latency video to your goggles for a near real-time experience. The 150° super-wide FOV lets you take in and appreciate the scope of the vistas you fly over.

With three different flying modes to choose from, you can fly at your own personal comfort level. When fully unleashed, the FPV Drone can speed across the sky at up to 87 mph. Even at this blistering speed, DJI's RockSteady EIS (Electronic Image Stabilization) technology will help ensure the footage you capture is smooth. You can capture video on an optional microSD card (up to 256GB) at 120 Mb/s. Whether you enjoy breakneck racing or leisurely touring beautiful terrain, the FPV Drone gives you an intimate experience, unlike traditional piloting.

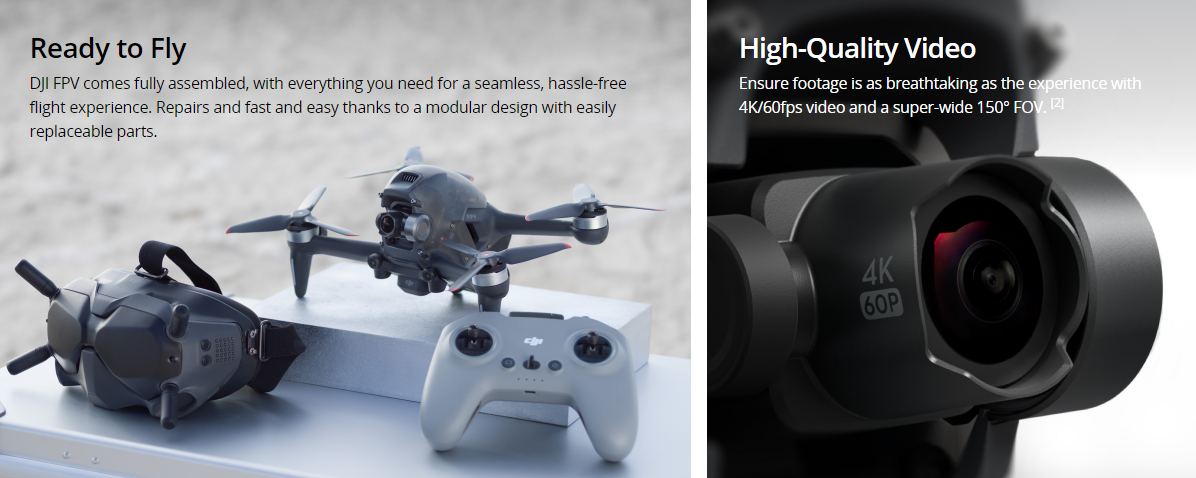

Ready-to-Fly Combo Version

Everything you need to get into the sky is included in one box. Simply turn on the drone, activate the drone, remote, and goggles, and start flying.

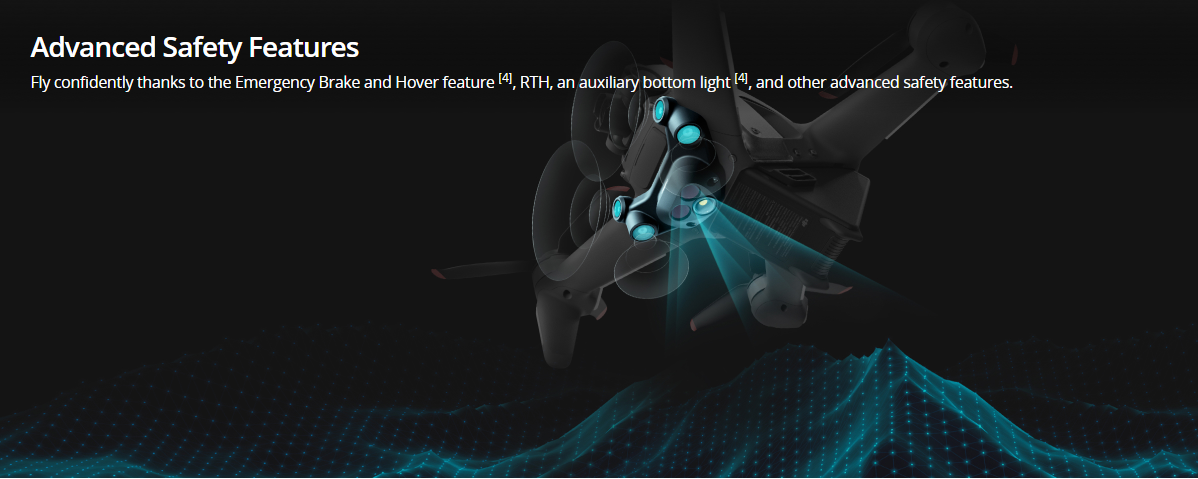

Fly Safely

When piloting in a first-person view, and at such high speeds, it's essential the drone and everything around it remain safe. The FPV Drone comes equipped with a feature called Emergency Brake and Hover, which does exactly that with the push of a button. It's ideal if you're feeling overwhelmed or need to essentially "pause" your flying in a few seconds, regardless of mode or speed. In addition to that, the FPV Drone will return to home if the video signal to the goggles is lost, and it sports forward and downward ToF obstacle sensing, an auxiliary bottom light, smart return to home, and low-battery return to home features.

Customizable Lighting

Equipped with color-customizable front LEDs and drone arm lights, you can make your FPV Drone look the way you want while providing essential lighting to alert others of the drone's presence.

Three Flying Modes

N Mode: Geared for new pilots, with simplified drone flight controls and safety features engaged, such as obstacle sensing.
S Mode: A hybrid flight mode that lets you fly manually for more freedom but keeps the easier-to-use simplified controls.
M Mode: For skilled pilots, with limitless control over the flight experience.
OcuSync 3.0
This technology is engineered to deliver clear HD video transmission from the drone to the goggles in near-real-time from up to 6.2 miles away.

Auto-Switching Frequencies

The video transmission frequencies automatically switch between 2.4 and 5.8 GHz to help ensure your 50 Mb/s bit rate footage remains clear of stutter and compression artifacts. To assist with this, high-gain antennas on the drone include three transmitters and four receivers.

DJI Virtual Flight App

This app lets you practice piloting in lifelike, simulated scenarios with the actual equipment you would use in the real world. Simply connect your FPV Goggles V2 and remote.

DJI Fly App

This mobile app gives you the ability to view and adjust footage and enhance your piloting experience. Features include:
Smartphone Live View: Displays the live view from the Goggles on a phone when connected via an optional cable.
Edit and Share: Play back, edit, and share footage on social media.
Fly Spots: Discover popular aerial photography spots near you to maximize your flying experience.

Audience Mode

Share the thrill of FPV flying with additional optional sets of FPV Goggles V2. When connected to your FPV Drone's channel, everyone can share the view you see from the aircraft.

Replaceable Parts

The gimbal camera, landing gear, and top shell of the DJI FPV aircraft are all modular and easily replaceable, making repairs more convenient.

4x Slow Motion

Record footage at four times the standard rate of recording for a slow-motion effect.

Firmware Activation

Please note that the FPV Goggles included with this combo contain the DJI FPV firmware, which requires the DJI FLY app to activate.

Sensor 1/2.3” CMOS
Effect pixels: 12 million
Lens  FOV: 150°<br>
35mm Format Equivalent: 14.66 mm<br>
Aperture: f/2.8<br>
Focus Mode: Fixed Focus<br>
Focus Range: 0.6 m to ∞
ISO 100-12800
Shutter Speed 1/50-1/8000 s
Still Photography Modes Single shot
Max Image Size 3840×2160
Photo Format JPEG
Video Resolution 4K: 3840×2160 at 50/60fps<br>
FHD: 1920×1080 at 50/60/100/120fps<br>
Video Formats MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Max Video Bitrate 120 Mbps
Color Profile Standard, D-Cinelike
RockSteady EIS Available
Distortion Correction Available
Supported File Formats exFAT (recommended)<br>
FAT32 <br>

Mechanical Range Tilt: -65° to 70°
Controllable Range Tilt: -50° to 58°
Stabilization Single-axis (tilt), electronic roll axis
Max Control Speed  60°/s
Angular Vibration Range ±0.01° (N mode)
Electronic Roll Axis Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)
Takeoff Weight Approx. 795 g
Dimensions 255×312×127 mm (with propellers) <br>
178×232×127 mm (without propellers)
Diagonal Distance 245 mm
Max Ascent Speed M mode: No limit <br>S mode: 15 m/s <br>N mode: 8 m/s
Max Descent Speed M mode: No limit <br>S mode: 10 m/s <br>N mode: 5 m/s
Max Speed 140 kph;
M mode: 39 m/s (27 m/s in Mainland China)<br>
S mode: 27 m/s <br>
N mode: 15 m/s
Max Acceleration 0-100 kph: 2 s (in ideal conditions while flying in M mode)
Max Service Ceiling Above Sea Level 6,000 m
Max Flight Time Approx. 20 mins (measured while flying at 40 kph in windless conditions)
Max Hover Time  Approx. 16 mins (measured when flying in windless conditions)
Max Flight Distance 16.8 km (measured while flying in windless conditions)
Max Wind Speed Resistance 39-49 kph (25-31 mph)
Operating Temperature -10° to 40° C (14° to 104° F)
Transmitter Power (EIRP) 2.400-2.4835 GHz<br>
FCC: ≤ 31.5dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br>
5.725-5.850 Ghz<br>
FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 25.5 dBm
Number of Antennas Four
GNSS GPS+GLONASS+GALILEO
Hovering Accuracy Range Vertical: <br>
±0.1 m (with Vision Positioning)<br> ±0.5 m (with GPS positioning)<br><br>
Horizontal: <br>
±0.3 m (with Vision Positioning)<br> ±1.5 m (with GPS positioning)
Supported SD Cards microSD (up to 256 GB)
Internal Storage N/A
Forward  Precision Measurement Range: 0.5-18 m <br>
Obstacle Sensing: Available in N mode only
FOV: 56° (horizontal), 71° (vertical)
Downward (dual vision sensors + TOF) TOF Effective Sensing Height: 10 m <br>
Hovering Range: 0.5-15 m <br>
Vision Sensor Hovering Range: 0.5-30 m<br>
Downward Auxillary Light Single LED
Operating Environment Refers to non-reflective, discernible surfaces<br>Diffuse reflectivity >20% (e.g. walls, trees, people)<br>
Adequate lighting conditions (lux >15 in normal indoor lighting conditions)
Input 100-240 V, 50/60 Hz, 1.8 A
Output Battery charging interface: <br>
25.2 V ± 0.1 V<br>
3.57 A ± 0.1 A (high current)<br>1 A ± 0.2 A (low current)<br><br>
USB Port: <br>5V/2A (×2)
Rated Power 90 W
Battery Capacity 2000 mAh
Voltage 22.2 V
Max Charging Voltage 25.2 V
Battery Type LiPo 6S
Energy 44.4 Wh@0.5C
Discharge Rate Standard: 10C <br>
Weight 295 g
Charging Temperature 5° to 40° C (41° to 104° F)
Max Charging Power 90 W
Operating Frequency 2.400-2.4835 GHz<br>
5.725-5.850 GHz
Communication Bandwidth 40 MHz (Max.)
Live View Mode Low-Latency Mode: 810p/120fps ≤ 28ms
High-Quality Mode: 810p/60fps ≤ 40ms
Max Video Bitrate 50 Mbps
Transmission Range 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Audio Transmission Support Yes
Weight Approx. 420 g (headband and antennas included)
Dimensions 184×122×110 mm (antennas excluded) <br>
202×126×110 mm (antennas included)
Screen Size 2-inches (×2)
Screen Refresh Rate 144 Hz
Communication Frequency <sup>[1]</sup> 2.400-2.4835 GHz<br>
5.725-5.850 GHz
Transmitter Power (EIRP) 2.400-2.4835 GHz<br>
FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br>
5.725-5.850 GHz<br>
FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 19 dBm
Communication Bandwidth 40 MHz (Max.)
Live View Mode Low-Latency Mode: 810p/120fps ≤ 28ms*<br>
High-Quality Mode: 810p/60fps ≤ 40ms*<br>
* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.
Max Video Bitrate 50 Mbps
Transmission Range <sup>[2]</sup> 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Video Format MP4 (Video format: H.264)
Supported Video and Audio Playback Formats MP4, MOV, MKV (Video format: H.264; Audio format:  AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature 0° to 40° C (32° to 104° F)
Power Input Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
FOV FOV: 30° to 54°; Image size: 50-100%
Interpupillary Distance Range 58-70 mm
Supported microSD Cards microSD (up to 256 GB)
Capacity 1800 mAh
Voltage 9 V (Max.)
Type LiPo 2S
Energy 18 Wh
Charging Temperature 0° to 45° C
Max Charging Power 10 W
Battery Life  Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
Operating Frequency 2.400-2.4835 GHz<br>
5.725-5.850 GHz
Transmitter Power (EIRP) 2.400-2.4835 GHz<br>
FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br>
5.725-5.850 GHz<br>
FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 19 dBm
Max. Transmission Distance 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Gimbal Dimensions 190×140×51 mm
Weight 346 g
Battery Life  Approx. 9 hours
Charging Time 2.5 hours
Model  FC7BMC
Weight  167 g
Operating Frequency Range  2.400-2.4835 GHz; 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference)  10 km (FCC), 6 km (CE/SRRC/MIC)
Transmitter Power (EIRP)  2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC)
5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE)
Operating Temperature Range  -10° to 40° C (14° to 104° F)
Battery Life  300 minutes
Supported microSD cards Max 256 GB
UHS-I Speed Grade 3
