Sennheiser AMBEO VR Mic
by SennheiserThe new dimension of VR audio productions. With the easy to handle AMBEO® VR Mic you are able to record high-quality VR sound from just one single point. Bringing your listeners a whole new and highly emotional experience.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- AMBEO VR Mic
- Balanced split cable 4x XLRs 3-pins
- Extension cable, 1.5m, DIN12F to DIN12M
- Rycote suspension mount
- Foam wind shield
- Proprietary A-B format Encoder, available in VST plugins (Mac OS X and Windows) and AAX plugins (Mac OS X)
Capture the world in a new spatial way

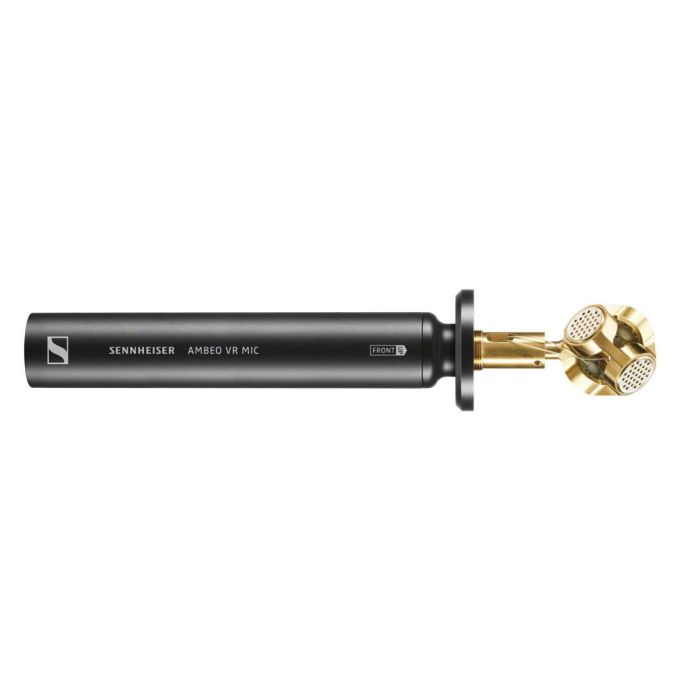

The easy-to-use AMBEO® VR Mic is an ambisonic microphone fitted with four matched KE 14 capsules in a tetrahedral arrangement. This special design allows you to capture the sound that surrounds you from a single point. As a result you get fully spherical ambisonics sound to match your VR video/spherical 360 content.
Benefit from a design developed with you in mind
By means of the VR Creators Program Sennheiser made sure to involve the professionals of the industry in the realization of the AMBEO® VR Mic right from the beginning. Thus, we developed a comprehensive product package including many well-conceived accessories that allow for a smooth workflow ¬– not least the A-B encoder software that works as a plugin, which can be seamless embedded in your post-production process.
Technology for you to shape the future of audio
The AMBEO® VR Mic works with ambisonics, a multi- channel technique that lets you spherically capture the sound arriving from all directions, at a single point in space. For playback this representation is rendered binaurally, allowing you to virtually rotate the orientation of the perspective in all directions, horizontally and vertically. Ambisonics is also supported by all of the major post-production and playback tools on the market today. This makes ambisonics the appropriate tool for Virtual Reality and all other applications involving 3D sound and interactively controlled audio. A tool to create new worlds of sound with.
Transducer Principle | Externally-polarized condenser |
Pickup Pattern | 4x cardioid, in Ambisonics A-format arrangement
|
Frequency Response | 20 Hz to 20 kHz |
Matrix Reference | Center of the capsule holder |
Mixing to B-Format | W: FLU + FRD + BLD + BRU X: FLU + FRD - BLD - BRU Y: FLU - FRD + BLD - BRU Z: FLU - FRD - BLD + BRU |
Sensitivity | 31 mV/Pa (-30 dBV), free field, no load |
Impedance | Nominal: approximately 200 Ohms Minimal Terminating Impedance: 1000 Ohms |
Equivalent Noise Level | 18 dBA as per IEC 61672-1 27 dB CCIR as per CCIR 468-3 |
Maximum SPL | 130 dBA for 1 kHz (for K = 1%) |
Power Supply | 4x phantom powering (P48) as per IEC 61938 (48 ± 4 V), 2.2 mA each |
Microphone Connector | DIN12M (use enclosed adapter cable to convert to 4x XLR3M) |
Polarity | Pin1 (GND), Pin2 (+), Pin3 (-) |
Operating Temperature | 14 to 131°F / -10 to 55°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Relative Humidity | Max 90% at 104°F / 40°C |
Dimensions (L x D) | 8.5 x 1.9/1.0" / 215.0 x 49.0/25.0 mm |
Weight | 14.1 oz / 400.0 g |
Packaging Info | |
---|---|
Package Weight | 2.4 lb |
Box Dimensions (LxWxH) | 16.0 x 10.8 x 3.0" |
