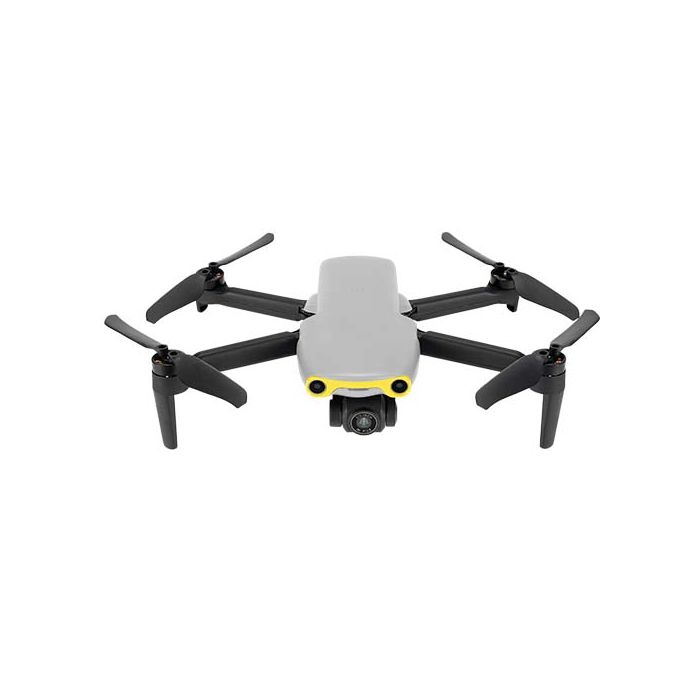

Autel EVO Nano+ Standard Package/Gray

by Autel
Dostupnost: Dostupno
SKU
102000862
  • Weighs only 249g
  • 6.2 mile Image Transmission
  • 28-30 min battery life
819,75 € 655,80 €

Sadržaj pakiranja

  • 1 x Autel EVO Nano+ Drone
  • 1 x Simple Remote Controller
  • 1 x Remote controller battery
  • 1 x Battery
  • 1 x USB Lightning cable
  • 1 USB Type C cable
  • 1 x USB Type B cable
  • 1 x Gimbal cover
  • 1 x Spare proppeler
  • 8 x Spare screws
  • 1 x Screwdriver

1/1.28inch CMOS Sensor
The Autel EVO Nano+ Drone comes equipped with a 1/1.28inch CMOS sensor that is capable of producing 50MP photos. Low-light images are made possible thanks to the large f/1.9 aperture and RYYB colour filter array design.

PDAF (Phase Detection Auto Focus) + CDAF (Contrast Detection Auto Focus) allows for incredible precision while tracking fast-moving subjects.

HDR mode takes several photos at different exposrures that can be stitched together in post-production so that you will be able to capture all the rich detail from shadows and highlights no matter how extreme the lighting conditions.

Weighs just 249g
Weighing in at only 249g, the Autel EVO Nano+ is compact and convenient for everyday flying. This impressive drone will fit in the palm of your hand but this doesn’t mean it compromises on performance.

28 minute flight time
You will have ample time to capture all the footage you need thanks to the drone’s impressive 28 minute flight time.

6.2 mile transmission range
The EVO Nano+ has a transmission range of 6.2 miles and is capable of 2.7K/30fps quality video. The remote controller also has a built-in microphone so that you can record ambient sounds on the ground so that you can utilize it in post later.

Easy footage transfer
Transferring your footage is easier than ever thanks to the Autel Sky app which allows the user to upload photos and video to your smartphone by simply placing it close to the drone.

Three-way obstacle avoidance
Another fantastic feature of the EVO Nano series is its three-way obstacle avoidance system which is a first for an aircraft of its size. The drones three-way binocular vision sensors enable it to detect obstructions in front of it, behind it and below it and can easily break to avoid any collisions.

Perfect for content creators
The EVO Nano+ has a number of shooting modes that are perfect for content creators and filmmakers. The Master Subject Tracking mode allows the drone to automatically follow any person, animal or vehicle. Other modes available are Flick, Rocket, Fade Away and Orbit.

Autel Sky app
You can also add a soundtrack and filters to your video via the Autel Sky app. You can apply templates for quick and easy movie-making so that you can edit footage ready to share even faster than ever.

Nano Aircraft

Takeoff Weight 249g
(without Accessories)
Dimensions Folded: 140×90×50mm
(including blades) Unfolded: 264×310×50mm
Wheelbase 231mm
Max Ascent Speed/strong> 6m/s (sport), 4m/s (normal), 3m/s (stable)
Max Level Flight Speed 4m/s (sport), 3m/s (normal), 2m/s (stable)
Max Level Flight Speed 15m/s (sport), 10m/s (normal), 5m/s (stable)
(no wind, near sea level)
Max Takeoff Altitude 4000m
Max Flight Time (no wind) 28min
Max Hovering Time (no wind) 26min
Max Flight Distance (no wind) 16.8km
Max Wind Resistance Level 5
Max Tilt Angle 33°(movement), 25°(normal), 25°(stable)
Max Angular Velocity 200°(movement), 120°(normal), 60°(stable)
Operating Temperature -10°C ~ 40°C
Transmission Power (EIRP) FCC:≤30dBm
GNSS GPS
Hovering Accuracy Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning);
Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning);
Built-in storage No
SD storage Max. support 256GB(UHS-3 rating required)

Gimbal
Stabilization 3-axis
Mechanical Range Pitch: -125°~35°
  Roll: -34°~33°
  Yaw: -25°~25°
Controllable Range Pitch: -90°~ 0°
Max Control Speed (pitch) 30°/s
Angular Vibration Range ±0.003°

Perception System

Forward Accurate measurement range:0.5~16m
  Effective sensing speed:<10m/s
  FOV:Horizontal<40°,Vertical<30°
Backward Accurate measurement range:0.5~18m
  Effective sensing speed:<12m/s
FOV:Horizontal<40°,Vertical<30°
Downward Accurate measurement range:0.5~20m
Visual hovering range:0.5~40m
  FOV:Horizontal<40°,Vertical<30°
Operating environment Forward, backward:
  Surface with clear pattern and adequate lighting(lux> 15)
  Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)

Camera
  EVO Nano EVO Nano+
Sensor CMOS:1/2 inch; CMOS:1/1.28 inch
Effective pixels:48M Effective pixels:50MP
Pixel size:1.6μm*1.6μm(Bin2) Pixel size: 2.44μm*2.44μm (Bin2)
Lens FOV:84° FOV: 85°
Equivalent focal length:24mm Equivalent focal length: 23mm
Aperture:f/2.8 Aperture: f/1.9
Focus range:1m ~ ∞ Focus range: 0.5m ~ ∞
Focus mode: fixed focus Focus mode::PDAF+CDAF/MF
Shooting mode Automatic mode (P gear): EV adjustable, ISO/Shutter automatic Automatic mode (P gear): EV adjustable, ISO/Shutter automatic
  Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable
  Shutter priority (S file): Shutter/EV adjustable, ISO automatic Shutter priority (S file): Shutter/EV adjustable, ISO automatic
ISO range Video:ISO100 ~ ISO3200 Video:ISO100 ~ ISO6400
  Photo:ISO100 ~ ISO3200 Photo:ISO100 ~ ISO6400
Shutter speed Photo Mode:1/8000 ~ 8s Photo Mode:1/8000 ~ 8s
  Other:1/8000 ~ 1/frame rates Other:1/8000 ~ 1/frame rates
Portrait blur Real-time image transmission portrait blur and photo portrait blur Real-time image transmission portrait blur and photo portrait blur
Defog mode Support Support
Zoom Range Digital zoom:1 ~ 16 times Digital zoom:1 ~ 16 times
Photo format JPG / DNG / JPG+DNG JPG / DNG / JPG+DNG
Photo resolution 48MP:8000x6000(4:3) 50MP:8192x6144(4:3)
  12MP(default):4000x3000(4:3) 12.5MP(default):4096x3072(4:3)
  4K:3840x2160(16:9) 4K:3840x2160(16:9)
Photo shooting mode Single shot Single shot
  Burst shooting: 3/5 Burst shooing: 3/5
  Auto exposure bracketing(AEB): 3/5 shots Auto exposure bracketing(AEB): 3/5 shots
  Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s) Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
  HDR imaging: 3840x2160 HDR imaging: 3840x2160
Video coding format H265/H264 H265/H264
Video resolution 3840x2160 p30/25/24 3840x2160 p30/25/24
  2720x1528 p30/25/24 2720x1528 p30/25/24
  1920x1080 p60/50/48/30/25/24 1920x1080 p60/50/48/30/25/24
Max bitrate 100Mbps 100Mbps
Timelapse Original image:3840*2160,JPG/DNG Original image:3840*2160,JPG/DNG
  Video: 4K P25 Video: 4K P25
Panorama Horizontal/Vertical/Wide-angle/Spherical Horizontal/Vertical/Wide-angle/Spherical
  Original image: 4000*3000, JPG/DNG Original image: 4096*3072, JPG/DNG
Supported file system Fat32、exFat Fat32、exFat
Video format MP4/MOV MP4/MOV
WIFI transfer 20MB/s 20MB/s

Remote controllor and image transmission

Operating frequency 2.400-2.4835GHz
5.725-5.850GHz
5.150-5.250GHz
Backward Accurate measurement range:0.5~18m
Effective sensing speed:<12m/s
FOV: Horizontal<40°, Vertical<30°
Max transmission distance FCC:10km
(unobstructed, free of interference)
Operating temperature 0°C ~40°C
Transmission power (EIRP) FCC:≤30dBm
Battery capacity 3930mAh
Max battery life ~ 3.5h (when connected to a mobile phone)
~ 2.5h (when not connected to mobile phone)
Interface type Type C
Transmission system Autel SkyLink
Realtime transmission quality Transmission distance<1km:2.7K 30fps
Transmission distance>1km:720P 30fps
Transmission bitrate 90Mbps
Transmission delay ≤200ms
Adapter
Input 100-240V/50-60HZ
Output 5V==3A,9V⎓==A,12V==2.5A
Rated power 30W
Aircraft Battery
Capacity 2250mAh
Voltage 7.7V
Max charging voltage 8.8V
Battery Type Li-Po 2S
Energy 17.32Wh
Charging temperature 5~45℃
Single battery charging time 90min
Max charging power 30W
App
Mobile App Autel Sky
Mobile system required iOS 12.0 and above
Android 8.0 and above
