Hollyland Solidcom M1-4B

by Hollyland
Dostupnost: Isporuka 7-10 dana
SKU
HO-SO-M1-4B

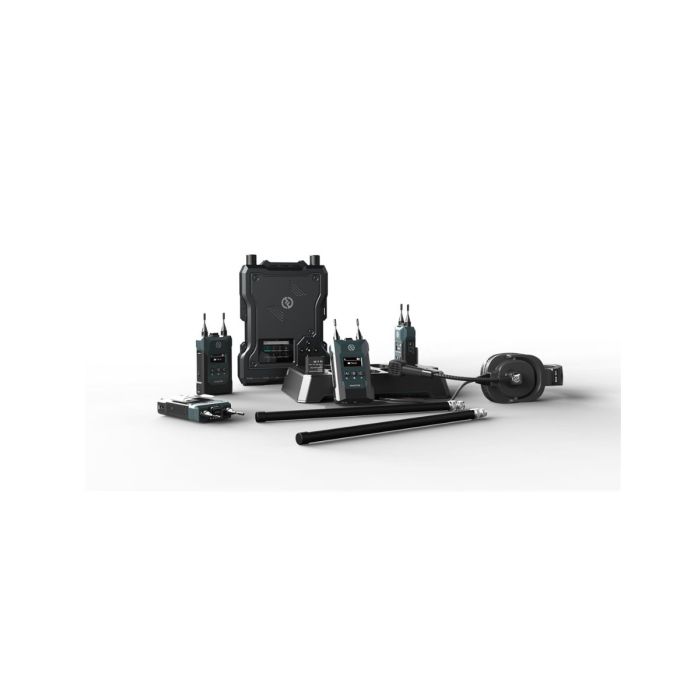

Wireless intercom setup, supports up to 4 team members, providing each of them with a wireless beltpack and professional wired single-ear LEMO headset

4.638,75 € 3.711,00 €

Sadržaj pakiranja

    • Station x 1
    • Beltpack x 4
    • Charging Base x 1
    • High Gain Omnidirectional Antenna x 2
    • LEMO Single-Ear Headset x 4
    • RJ45 to XLR Cable (5 meters) x 1
    • USB-Type-A to Type-C Cable x 1
    • POE Adapter x 1
    • 4-Pin XLR Adapter x 1
    • Beltpack Battery x 8
    • 3/8 Installation Accessory x 1
    • User Guide x 1

    If you need a communication solution for a small production team, then the Solidcom M1 Full-Duplex Wireless Intercom Solution from Hollyland is an ideal solution. This wireless intercom setup supports up to 4 team members, providing each of them with a wireless beltpack and professional wired single-ear LEMO headset. Ideal for small- to medium-sized events (approximately 100 to 1000 guests), such as a concert, church function, or exhibition, the Solidcom M1 system works to deliver clear and conversational communication without interference and offers easy app or webpage-based setup.

    1.9 GHz Full-Duplex Transmission

    To avoid interference with other devices, the M1 intercom system communicates over the 1.9 GHz spectrum and offers full-duplex conversations. With full duplex, you can talk to other team members as you would over the phone, with each party being able to talk and listen simultaneously.

    Long-Range Communication

    The built-in panel antenna on the M1 base station can provide one-way transmission to beltpacks up 1312' away fronting the panel, and an extra 164' at the back (line-of-sight). Auxiliary external FRP antennas can deliver 360° reception at up to a 984' range.

    Sidetone Function

    When you're alone at an event and need to ensure that your headset and beltpack are transmitting correctly, you can use the sidetone function to hear yourself through the headset. This helps to ensure that your mic is picking up your voice, that your voice volume is properly set, and more.

    Cascade Connection

    If you need to expand your coverage and team support, you can utilize the cascade connection feature to join this system to a second Solidcom M1 intercom system, linking both base stations together.

    Additional Features

    • 4-Channel communication
    • POE base station power supply
    • 3.5mm & LEMO headset connection on beltpacks
    • Charging station for all 4 beltpacks
    • 2-wire and 4-wire intercom system interfaces
    • Removable lithium-ion batteries
    • Grouping talk mode
    • App and website-based system configuration

    Station Beltpack
    Interfaces Power Supply Interface (RJ45) 3.5mm Headset Interface
    POE Interface (RJ45) LEMO Headset Interface
    4 Wire Audio Interface USB-Type-C Interface
    USB Interface
    2 Wire Audio Interface
     Power Supply POE Power Supply  1500mAh Lithium Polymer Battery
    NP-F Type Battery
     Frequency Response 200Hz to 7KHz  200Hz to 7KHz
     Signal-to-Noise Ratio >50dB  >50dB
     Distortion <1%   <1%
    Use Range   450 Meters Line-of-Sight Usage 450 Meters Line-of-Sight Usage
     Frequency Band 1.9GHz  1.9GHz
     Modulation Mode  GFSK GFSK
     Transmitting Power  Maximum 21dBm  Maximum 21dBm
    Receiving Sensitivity  ≤-93dBm  ≤-93dBm
    Frequency Bandwidth  1.728MHz  1.728MHz
    Power Consumption <3W <0.6W
    Dimension (L*W*H): 255.5*180.4*48.5mm (L*W*H): 105*65*22.4mm
    Weight  Aprox.1560g Aprox.200g
    Working Temperature   0~+45℃ (Operating) 0~+45℃ (Operating)
    -20~+60℃ (Storing) -20~+60℃ (Storing)
