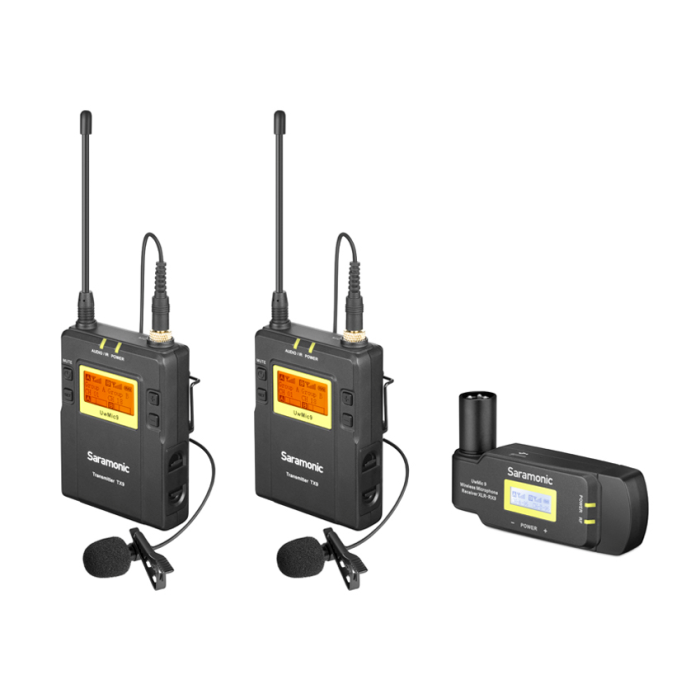

Saramonic UHF Wireless Microphone System (2xTX9, 1xRX9-XLR9)
by Saramonic- Reliable, broadcast-quality audio
- Compact XLR receiver
- 514 MHz - 596 MHz
- 96 selectable channels
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
UHF Wireless Lavalier Microphone System
The Saramonic UwMic9 UHF Wireless Microphone System is designed for portable wireless operation and can be used in multiple environments for applications such as DSLR video, field recording, broadcast TV, electronic news gathering ( ENG), on-site interviews, etc.
UwMic9-TX9 Protective Case Transmitter
This transmitter is a compact transmitter that uses a crystal controlled PLL synthesizer. It is equipped with a muting function and a locking microphone input connector. RF output power can be switched between high, medium and low.
UwMic9 RX-XLR9 plug-in receiver
The Saramonic UwMic9 RX-XLR9 is a compact XLR plug-in wireless receiver. It plugs directly into the microphone input of a video camera or recorder without interfering with other accessories. The XLR connector rotates both clockwise and counterclockwise.
The receiver can be powered by two AA batteries or DC power through the USB Type-C socket. It features high switching RF bandwidth, easy-to-read LCD display, 3.5mm headphone jack, and infrared sync between transmitter and receiver.
Technical characteristics
Transmitter:
Channels: 96
Groups: A or B
Oscillator type: PLL synthesizer
Frequency range: 514 MHz - 596 MHz
Reference deviation: +/- 5 kHz (-60 dBV, 1 kHz input)
Signal to noise ratio: 70 dB or more
Spur removal: -60 dB
Voice delay: 12ms
Antenna: 1 / 4λ wire antenna
Audio input connector: TX9: 3.5mm mini jack
HU9: none
TX-XLR9: XLR-3-11C type (female)
Reference audio input level: -60 dBV (MIC input, 0 dB attenuation)
Distortion: 0.5% or less
Weight: TX9: 170.9 x 63.5 x 30.0 mm
HU9: 254.0 x 52.0 x 52.0 mm
TX-XLR9: 105.5 x 43 x 34.7 mm
Operating temperature: 0 ℃ to 50 ℃
Storage temperature: -20 ℃ to + 55 ℃
Receiver:
Channels: 96
Groups: A or B
Oscillator type: PLL synthesizer
Audio output connector: XLR-3-11C type (male)
Antenna: 1 / 4λ wire antenna
Audio output level: –60 dBV
Spur removal: -60 dB
Headphone output level: 30 mW (16 Ω)
Reception frequencies: 514 MHz - 596 MHz
Receiving sensitivity: -95 dBm
Signal to noise ratio: 70 dB or more
Voice delay: 12 ms
Reference deviation ± 5 kHz (–60 dBV, 1 kHz input)
Frequency response: 40Hz to 18kHz (+/- 3dB)
Distortion: 0.5% or less
Spur removal: -60 dB
Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)
Weight (without batteries): approx. 96g
Battery: two AA batteries
DC input connector: Type C plug
Dimensions: 112 × 63 × 26 mm
Operating temperature: 0 ° C to 50 ° C
Storage temperature: –20 ° C to + 55 ° C
