Shimbol ZO600MS

by Shimbol
Raspoloživost: Isporuka 7-10 dana

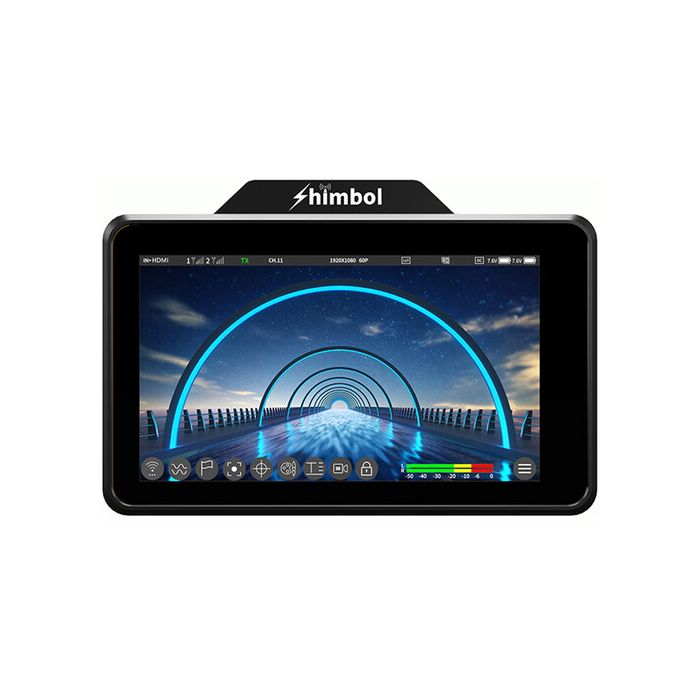

The ZO600M 5.5" Wireless HDMI Touchscreen Recorder/Monitor from Shimbol enables you to view and/or capture up to 1080p60 video with an applied 3D LUT.

589,00 €/4.437,82kn 471,20 €/3.550,26kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • Shimbol ZO600MS

The ZO600M 5.5" Wireless HDMI Touchscreen Recorder/Monitor from Shimbol enables you to view and/or capture up to 1080p60 video with an applied 3D LUT. This monitor can be used as either a transmitter or receiver, is compatible with Shimbol wireless transmitter and receiver components, and can b transmit video to your iPhone or iPad. It features a 5.5" 1920 x 1080 touchscreen display, one HDMI 2.0 input, one HDMI output, and a 3.5mm headphone jack for outputting embedded audio. Display features include 1000 cd/m² brightness, 3D LUTs, a luma waveform, vectorscope, zoom, focus peaking, and additional functions.

Wireless Transmission

  • This versatile monitor/recorder can be used in either transmitter or receiver mode.
  • Can be used with a separately available Shimbol wireless video transmitter or receiver.
  • Transmits to your iPhone or iPad.
  • Up to 500' line-of-sight wireless range.

Recording Monitor

  • The ZO600M monitor enables you to view and/or record up to 1080p60 video.
  • This monitor supports live LUT application with the ability to upload and adjust 3D LUTs.
  • Provides both recording and playback functions.

HDMI Input/Output

  • Connect to virtually any camcorder or cine-style camera via the HDMI input.
  • Monitor embedded audio via the 3.5mm stereo headphone jack.

Bright Touchscreen

  • The ZO600M features a smooth touchscreen interface.
  • The 1000cd/m² screen provides a bright, easily viewable display.

3D LUT Support

  • Load custom 3D LUTs via the micro-SD card slot.

Imaging Features

  • Precision luna waveform, vectorscope, and histogram.
  • Focus peaking, false color, exposure.
  • Check fields, selectable markers, RGB adjustments.
  • Zoom, gamma curve selection, and more.


  • Mount the Memory I using the bottom 1/4"-20 thread bottom.

Power Options

  • Power the ZO600M using two Sony L-series type batteries or input DC power via the barrel port.
Panel Type LCD
Display Size 5.5" / 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:09
Touchscreen Yes
Image Controls Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Peaking, Histogram, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O 1 x HDMI 1.4a Input
  1 x HDMI 1.4a Output
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Power I/O 1 x Barrel (16.8 VDC) Input
  1 x Barrel (0.8 A / 7.4 VDC) Output
Other I/O 1 x USB-C (Firmware)
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC
File System Support FAT32
Wireless Range 500' / 152.4 m
Frequency Range 5.1 to 5.8 GHz
Latency 80 ms
RF Power 17 dBm
RF Sensitivity -80 dBm
Wi-Fi Wi-Fi 5 (802.11ac)
Bluetooth None
Mobile App Compatible Yes: iOS Only
  App Name: Shimbol
Format Support
Video Format HDMI
  1080p: 60/59.94/50/30/29.97/25/24/23.98
  1080i: 60/59.94/50
  720p: 60/59.94/50
Audio Format 48 kHz
Wireless Video Compression Compressed
Timecode Support No
DC Input Power 7 to 16.8 VDC
Battery Type 2 x L-Series
Power Consumption 8 W
Mounting 1 x 1/4"-20 Female
Environmental Protection None
Certifications FCC, CE, RoHS, Kcc, TELEC
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 80%
Storage Temperature -4 to 140°F / -20 to 60°C
Material of Construction Plastic
Dimensions 5.9 x 4.1 x 1.2" / 151 x 103 x 29.5 mm
Weight 10.6 oz / 300 g
