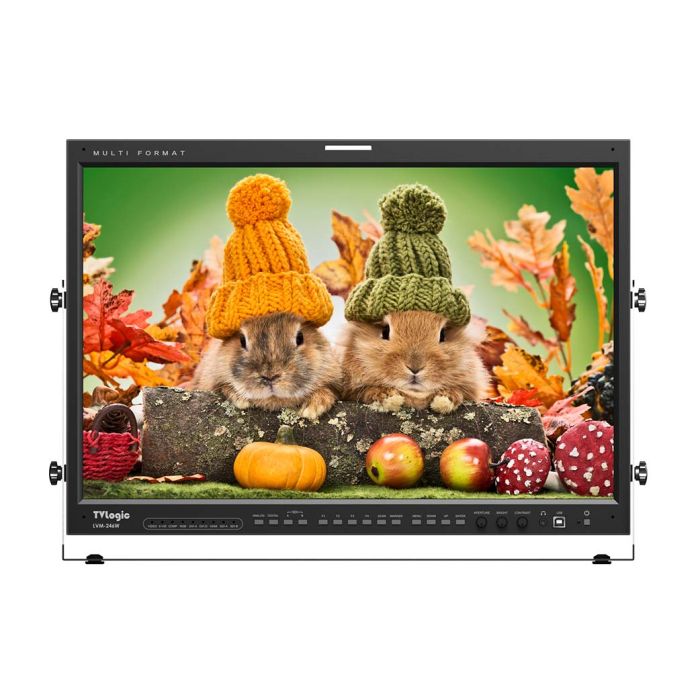

TVLogic LVM-246W 24'' 3G LCD Monitor HD/SD

by TVLogic

Dostupnost: Isporuka 14-20 dana

SKU

TVL-LVM-246W

24” 1920 x 1200 Native HD Resolution
3G-SDI Level A/B
Audio Level Meter DisplayBlue Only

3.275,00 € 2.620,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

1x LVM-246W Monitor
1x AC Power Cord
1x Stand

Opis

24” Full HD Display For Non-Critical Broadcast Monitoring Applications
The LVM-246W is TV Logic's mid-level broadcast monitor with a wide viewing angle IPS LCD.

It supports SD/HD/3G-SDI, HDMI, DVI, Component Video, S-Video and CVBS signals and offers professional features such as Waveform / Vector Scope, Markers/Mattes,Timecode, Closed Caption and colour calibration.

The LVM Series is designed to offer superior picture quality, wide viewing angle and professional broadcast functionality.

LVM series monitors accept most standard input formats and are compatible with a wide range of professional video monitoring requirements.

Slim, single-piece integrated designs, low power consumption, and easy-to-use rack mount kits for 7” - 24“ monitors help to meet all your monitoring requirements.

All LVM series models offer various broadcast features including Waveform, Vectorscope, Focus Assist, Embedded Audio Level Meter, Closed Caption, UMD, Markers/Mattes, 1:1 pixel mode and more.

Specifikacije

Size	24inch
Resolution	1920 x 1200 (16 : 10)
Pixel Pitch	0.270mm
Colour Depth	16.7M
Viewing Angle (Typ.)	178°(H) / 178°(V)
Luminance (Max.)	300cd/m2 (center)
Contrast Ratio	1000:01:00
Display Area	518(H) x 324(V) mm
Input
1 x DVI-I	DVI Input
3 x BNC	CVBS / Component Input
2 x BNC	SDI A/B Channel Input
1 x HDMI	HDMI Input
Output
3 x BNC	Analog (Loop Through Out)
1 x BNC	SDI A/B Selected Channel Output (Loop Through Out)
Input Signal
Analog	CVBS / S-Video / Component
3G-SDI	2.970Gb/s
HD-SDI	1.485Gb/s
SD-SDI	270Mb/s
HDMI	480i/480p/576i/576p/720p/1080i/1080p/640x480/720x400/800x600/1024x768/1280x1024/1600x1200/1920x1200
DVI-Analog	640x480/720x400/800x600/1024x768/1280x768/1280x1024/1366x768
DVI-D (PC mode)	640x480/720x400/800x600/1024x768/1280x768/1280x1024
DVI-D (HDMI mode)	1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/480i(60)/480p(60)/576i(50)/576p(50)
Analog Input Spec
CVBS	1.0Vp-p (With Sync) NTSC. PAL
S-Video	1.0Vp-p (Y With Sync), 0.286/0.300 Vp-p (Chroma)
Component Video	1.0Vp-p (Y With Sync), +350mV (Pb,Pr)
SDI Input Signal Formats
SMPTE-274M	1080i (60 / 59.94 / 50)
	1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M	720p (60/59.94/50)
SMPTE-260M	1035i (60/59.94)
SMPTE-125M	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)
Audio IN	Embedded Audio / Analog stereo (Phone Jack)
Audio OUT	Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Power	DC 24V / AC 100~240V (50~60Hz)
Power Consumption (Approx.)	77Watts
Operating Temperature	0°C to 40°C (32°F to 104°F )
Storage Temperature	-20°C to 60°C (-4°F to 140°F )
Dimensions
