Aputure INFINIMAT 4X4 KIT LED & Clear (EU)
by AputureModular full-colour RGBWW LED mats with inflatable structural airbags and hook-and-loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

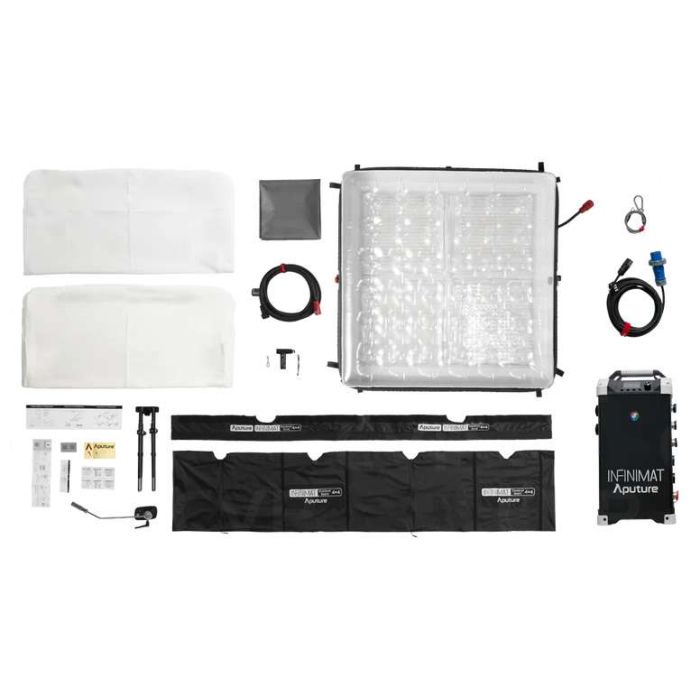

Sadržaj pakiranja
- 1x Carrying Case for INFINIMAT LED & Clear Softbox
- 1x Aputure INFINIMAT 4x4
- 1x Aputure INFINIMAT 7.5m Head Cable (1600W)
- 1x Aputure INFINIMAT Carbon Fiber Mounting Bracket 4x4
- 1x Aputure K-Mount Arm w/ Straight 5/8” Pin
- 1x Aputure INFINIMAT Inflatable Clear Softbox 4x4
- 1x INFINIMAT Diffusion Cloth (1 Stop) 4x4
- 1x INFINIMAT Diffusion Cloth (2 Stop) 4x4
- 1x Aputure INFINIMAT Control Skirt 4x4
- 1x Aputure INFINIMAT Control Grid 4x4
- 1x Aputure INFINIMAT Patch Kit
- 1x Aputure INFINIMAT Air Pump Mini
- 1x Carrying Case for Control Box 1600W Pack
- 1x Aputure INFINIMAT Control Box 1600W (V or Gold Mount)
- 1x AC Cable 1600W
- 1x Safety Rope (1.3m)
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook-and-loop diffusion cloths are available in various sizes ranging from 1x2 to 20x20 feet. Traditional rigid-frame softbox options are also available for select sizes. The lamp heads are designed with easy-to-replace tiles and can be powered and controlled using a single control box.
The INFINIMAT system offers a wide range of features including tunable CCT, green-magenta adjustment, stepless dimming, and multiple control methods. The inflatable airbag provides structural support and the system is IP65 dust- and water-resistant. INFINIMATs are designed for durability and portability, making them suitable for a variety of production settings.
|
COLOUR SPECIFICATIONS
|
|
| CCT | 2,000K – 10,000K |
| CRI | ≥96 |
| TLCI | ≥97 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 73 |
| TM-30 RF (Average) | 92 |
| TM-30 RG (Average) | 100 |
|
HARDWARE FEATURES
|
|
| Pixel Count | 4 pixels |
| Pixel Module | 2x2 |
| Softbox Inflation Time (Air Pump Mini) | 1 min 50 sec |
| Full-Inflation Duration | 7 days |
|
POWER SPECIFICATIONS
|
|
| Max Power Consumption | 800 W |
| Max Power Output | 640 W |
| Operating Voltage DC1 & DC2 |
12 V–16.8 V, 22 V–33.6 V
|
| Operating Voltage AC | 100 V ~ 264 V |
| WEIGHTS | |
| INFINIMAT 4x4 | 8.36 kg |
| 18.43 lbs | |
| INFINIMAT Air Pump Mini | 240 g |
| 0.53 lbs | |
| Control Box 1600W | 19.38 kg |
| 42.73 lbs | |
| Inflatable Clear Softbox 4x4 | 2.26 kg |
| 5.7 lbs | |
| 1-Stop Diffusion Cloth | 202 g |
| 0.45 lb | |
| 2-Stop Diffusion Cloth | 224 g |
| 0.49 lb | |
| Light Control Skirt 4x4 | 1.15 kg |
| 2.53 lbs | |
| Light Control Grid 4x4 | 1.25 kg |
| 2.75 lbs | |
| Rolling Case (INFINIMAT LED & Clear Softbox 4x4) | 16.28 kg |
| 35.89 lbs | |
| Rolling Case (Control Box 1600W Pack) | 7.50 kg |
| 16.53 lbs | |
| DIMENSIONS | |
| INFINIMAT 4x4 |
121.0 x 121.0 cm
|
| 4.0 x 4.0 ft | |
| INFINIMAT Air Pump Mini |
3.6 x 11.4 x 12.6 cm
|
| 1.4 x 4.5 x 5.0 in | |
| Control Box 1600W |
27.3 x 26.2 x 55.0 cm
|
|
10.8 x 10.3 x 21.7 in
|
|
| Inflatable Clear Softbox 4x4 |
121.0 x 121.0 x 17.0 cm
|
| 4.0 x 4.0 x 0.6 ft | |
| 1-Stop or 2-Stop Diffusion Cloth |
122.0 x 122.0 cm
|
| 48.0 x 48.0 in | |
| Light Control Skirt 4x4 |
120.0 x 120.0 cm
|
| 47.2 x 47.2 in | |
| Light Control Grid 4x4 |
117.0 x 117.0 cm
|
| 3.8 x 3.8 ft | |
| Rolling Case (INFINIMAT LED & Clear Softbox 4x4) |
85.3 x 73.4 x 36.8 cm
|
|
33.6 x 28.9 x 14.5 in
|
|
| Rolling Case (Control Box 1600W Pack) |
68.0 x 45.0 x 40.7 cm
|
|
26.8 x 17.7 x 16.0 in
|
|
|
CONTROL AND FIRMWARE
|
|
| Control Methods |
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
|
| Firmware Upgradeable |
Sidus Link, USB Drive
|
| Wireless Range (Bluetooth & CRMX) |
≤100 m / ≤328.1 ft
|
| Control Box Type |
INFINIMAT Control Box 1600W
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Weather Resistance Rating | IP65 |
| Operating Temperature | -20 ºC ~ 50 ºC |
| Storage Temperature | -20 ºC ~ 85 ºC |
| Control Box Noise Levels High Speed Mode | 35.9 dBA |
| Control Box Noise Levels Medium Speed Mode | 34.2 dBA |
