Atomos Ninja RAW

by Atomos

Dostupnost: Isporuka 7-10 dana

SKU

ATOMNJRW01

873,75 € 699,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

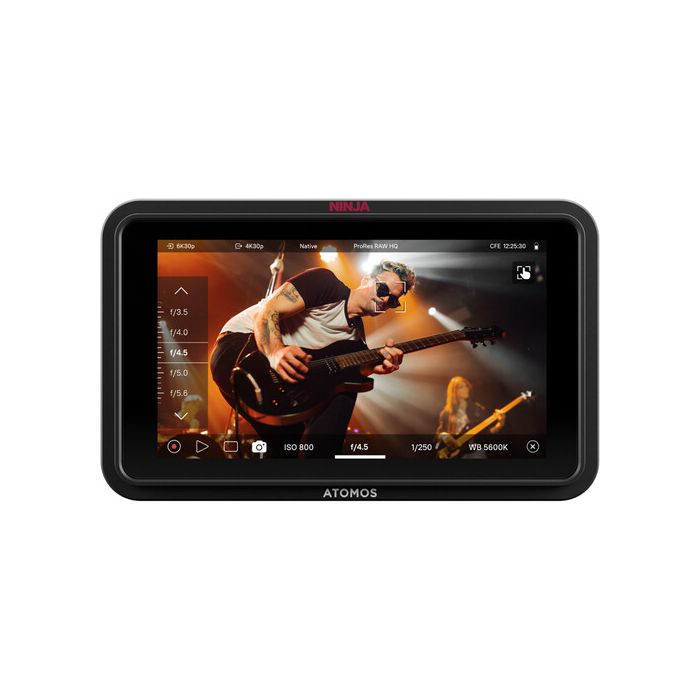

Atomos Ninja RAW 5.2" HDMI Monitor/Recorder
USB-C Locking Cable Adapter
HDMI Locking Cable Adapter
USB-C PD Locking Cable (17.7")

Opis

Designed as a wired companion to the Ninja TX and Ninja TX GO, the Atomos Ninja RAW 5.2" HDMI Monitor/Recorder from Atomos is a compact on-camera monitor and recorder ideal for use on professional sets and for content creators. Features include HDMI 2.0 input/output, camera control, a bright 1500 cd/m² touchscreen display, ProRes raw recording, recording to CFexpress Type B or USB-C, a tally light, NDI/HX3 and camera-to-cloud via an optional USB-C adapter, and all codecs such as ProRes RAW/DNx/H.265 are built in.

5.2" Touchscreen Display

The 5.2" IPS touchscreen of the Ninja RAW offers a 1920 x 1080 resolution with a bright 1500 cd/m² display for rich, accurate color precision, even in broad daylight. The 8/10-bit color processing, HDR support, Rec. 709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure color-accurate, high-quality monitoring of your footage.

Updated Linux Operating System

Designed for the Ninja TX/TX GO/RAW, the AtomOS Linux operating system provides updated tools, a sleeker design, and more efficient, cooler operation.

Comprehensive Color and Metadata

The Ninja RAW supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

You can record raw metadata such as white balance, exposure index, shutter speed/angle, iris f-stop, ISO, gamma, and gamut.

HDMI Input/Output

The HDMI input supports up to 8K30, DCI/UHD 4K60, and 1080p120 video.

A loop-through output passes the incoming HDMI signal from the camera to another device, such as an external monitor, wireless transmitter, or live streaming encoder.

Tally Light

Adding a tally light to the Ninja RAW is a simple process to provide a clear visual indicator of when the camera is recording or broadcasting.

When the Ninja is recording, the light automatically turns red (live/on-air). If the tally light is green, it indicates to the talent that the camera/monitor-recorder is on preview or standby.

Recording/USB Features

The Ninja RAW features a CFexpress Type B slot and dual USB-C recording outputs supporting ultrafast data transfer rates based on PCIe and NVMe protocols, designed for scalability and futureproofing. In addition to recording directly to storage, the USB-C ports can also be used for calibration, uploading custom 3D LUTs, adding audio devices, and firmware updates.

As of the AtomOS 12.2.1 free, over-the-air/download update, the Ninja RAW can record ProRes RAW from the Canon EOS R6 Mark III camera. RAW recording on the Canon EOS R6 Mark III supports up to 6960 x 3672p30 and 4320 x 2278p60.

Power Options

An L-series battery plate on the back of the Ninja RAW can support NP-F L-series batteries. An optional battery eliminator can be used to provide DC power to the monitor.

A USB-C port supports 30W PD power delivery with the included cable.

SegmentPro

The SegmentPro feature allows you to segment/split long recordings into smaller, user-defined chunks, all without dropping a frame so you can fit your files into any workflow.

This makes it easier to share smaller files to minimize the risk of losing one large file.

Optional Network Options

With a separately available USB-C network adapter, you can add a Camera to Cloud (C2C) workflow that allows you to upload your video files directly from your monitor-recorder to the cloud. Atomos supports direct progressive upload to their own cloud platform, ATOMOSphere, as well as Adobe Frame.io and Dropbox.

Via the optional network adapter, it can also be fully integrated into an NDI environment, either as an NDI source, visible to all other authorized devices on the network, or as an NDI receiver, providing high-quality, low-bandwidth video.

Comprehensive Monitoring Tools

The Ninja RAW offers a comprehensive suite of simple, one-touch monitoring tools for focus, framing, and exposure, including focus peaking, zoom (2:1, 1:1), zebras, false color (including ARRI and EL Zone), frame guides, SMPTE safe areas, grid markers, waveforms, RGB parade, vectorscope, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads). It also provides anamorphic de-squeeze monitoring to correct the ratio for anamorphic lens setups.

Control Options

Multifunction control buttons work in tandem with the touchscreen interface for intuitive onboard control
Auto HDMI camera trigger is supported by Canon and Sony cameras using the Atomos Open Standard
LANC control and calibration can be accessed using a separately available USB-C to serial connection cable
Camera control will be enabled on the monitor after the latest OTA firmware update

Specifikacije

Key Specs
Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Touchscreen	Yes
HDR Support	Yes: Hybrid Log Gamma
Video I/O	1x HDMI 2.0 Input
	1x HDMI 2.0 Output
Media/Memory Card Slot	Single Slot: CFexpress Type B [Record/LUT/Firmware]
Video Format	HDMI (8/10/16-Bit 4:2:2)
	6K Raw: 60/30
	3.5K Raw: 60
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	Show Less
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	30 W
Display
Panel Type	IPS-Type LCD
Display Size	5.2" / 13.2 cm
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1500 nits / cd/m2
Color Support	1.07 Billion Colors (8-Bit+FRC)
HDR Support	Yes: Hybrid Log Gamma
Color Gamut	100% Rec. 709
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	1x HDMI 2.0 Input
	1x HDMI 2.0 Output
Embedded Audio	HDMI/IP/NDI/USB
Audio I/O	1x 1/8" / 3.5 mm Input
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x USB-C (16.8 VDC) Input
Other I/O	2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power]
	1x 2.5 mm (LANC) Input
Media/Memory Card Slot	Single Slot: CFexpress Type B [Record/LUT/Firmware]
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI (8/10/16-Bit 4:2:2)
	6K Raw: 60/30
	3.5K Raw: 60
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Timecode Support	Yes
Recording
Pulldown Conversion	0,001427083
Camera Trigger	HDMI
Pre-Roll Record	Full HD: 8 Seconds
	4K: 2 Seconds
Encoding Formats	x
	DNxHD 36, 145, 220x
	DNxHR HQ, HQX, LB, SQ
	ProRes 422, 422 HQ, LT, Raw, Raw HQ
	H.265 420, 422, HQ, LQ, MQ
Maximum Audio Tracks	8
Metadata Tagging	Yes
Reference Input	No
Power
Input Power	6.2 to 16.8 VDC
Battery	1x L-Series Mount on Fixed Plate
Power Consumption	30 W
Mounting
Tripod/Accessory Mounting	1x ARRI Anti-Twist 1/4"-20
	2x 3/8"-16 Female
General
Environmental Resistance	No
Operating Conditions	Up to 104°F / 40.0°C
Material of Construction	Aluminum, Plastic
