Atomos Shogun AV-19

by Atomos

Dostupnost: Isporuka 7-10 dana

SKU

ATOMSHGAV1

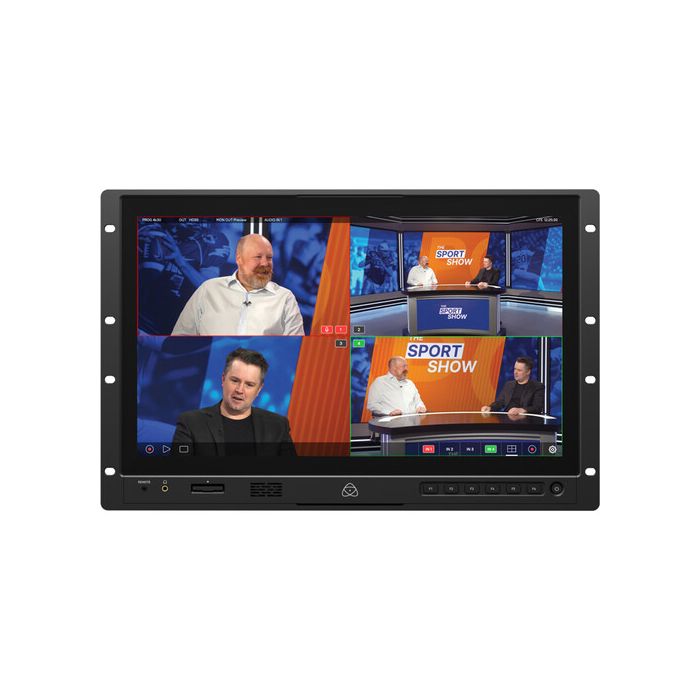

Expand your production monitoring with the 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher, the latest workhorse in the Atomos Shogun line of onboard camera video monitor-recorders.

2.373,75 € 1.899,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Atomos 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher
4-Pin XLR Power Supply
IEC Power Cable Kit (5 International Plugs)
10 x Rackmount Nut + Bolt
Cleaning Cloth

Opis

Expand your production monitoring with the 19" Shogun AV-19 Rackmount 4K HDR Monitor-Recorder-Switcher, the latest workhorse in the Atomos Shogun line of onboard camera video monitor-recorders. This large 19" studio display provides monitoring, recording, and switching in a single unit, and it features a bright capacitive touchscreen display. It supports HDMI and 12G-SDI input and output, as well as NDI|HX3 via Gigabit Ethernet, so it's perfect for cinema capture, live events, and broadcast productions.

Bright UHD 4K Screen

Large 3840 x 2160 resolution display
1200 cd/m² brightness
Capacitive touchscreen
Quad- or full-screen display setup
Play back your recently captured shots on the same pristine screen for reviewing

Multicamera Switching

One HDMI, two 12G-SDI, and two 3G-SDI inputs transform the Shogun into a quad-view live switcher and recorder on your multicamera shoots
Monitor live, multicamera feed
Record a fifth program channel of your switched feed and display the resulting mixed output live
Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras

NDI Support

The Shogun includes NDI support via its Gigabit Ethernet LAN port, providing easy integration with PTZ camera control and existing NDI networks. It supports input and output of your program via the high-quality, low-latency NDI|HX3 protocol.

HDR I/O and Color Management

Deliver content via live HDMI or SDI out, in real time, from any HDR camera to a compatible HDR TV or monitor. You can monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR. It's a perfect companion for a high-end ARRI, RED, or Sony VENICE cinema camera.

Shogun AV-19 receives Log signals from the camera and offers real-time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709 while recording in high-quality ProRes, DNxHR, or ProRes RAW.

Recording and Custom LUTs

Use with your DSLR or mirrorless camera via HDMI to record ProRes, ProRes Raw, and AVID DNx codecs for easy editing and archival quality. You can record the main program up to 6K30 via 12G-SDI and up to DCI 4K60 via HDMI and up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen.

Record to a CFexpress slot on the front of the monitor or to external media via USB-C output. Custom LUTs (.cube files) can be loaded from the CFexpress card or SSD and used in conjunction with the Shogun's built-in monitoring tools for precise exposure control.

User-Definable Function Buttons

Six function buttons on the front of the monitor provide quick access to frequently used features.

You can instantly bring up monitoring tools, playback modes, LUTs, anamorphic desqueeze, and more with just the touch of a button.

Monitoring Tools

The 7" Shogun Classic features numerous built-in monitoring tools, including:

Custom 3D LUTs
False color
Focus peaking
HDR exposure
Pixel magnification (1:1, 2:1)
RGB parade
Vectorscope
Frame guides
Zebra
Waveform
Safe areas
Markers
Vertical flip
Atomos Calibrator with Display Pro HL and Display Plus HL
Downscaling to HD and crop
Interlaced and PSF to progressive
Anamorphic de-squeeze

Powerful Live and on Set

On set or during live broadcasts, the Shogun AV-19 provides a bright, color-accurate reference display for directors, DITs, and other crew with quick and easy playback of recorded takes.

With a full suite of Atomos monitoring tools, switching tools, and graphic capabilities, the Shogun AV makes it easy to evaluate exposure, focus, color, and framing with confidence.

Additional Features

LTC input via BNC
3-pin XLR audio input for 2-channel input and output
7 RU rackmount size
Dual 4-pin XLR power inputs for redundant DC and/or battery options
Remote start/stop trigger via 2.5mm LANC jack on front
3.5mm headphone output
Tally light on the front

Specifikacije

Display
Panel Type	IPS-Type LCD
Display Size	19.00" / 48.3 cm
Native Resolution	3840 x 2160
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	1200 nits / cd/m2
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes: Hybrid Log Gamma
Color Gamut	100% Rec. 709
	99% DCI-P3
	87% Rec. 2020
	99% NTSC
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, RGB Parade, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	1x HDMI 2.0 Input
	2x BNC (12G-SDI) Input
	2x BNC (3G-SDI) Input
	1x HDMI 2.0 Output
	1x BNC (12G-SDI) Output
	2x USB-C 3.0 / 3.1/3.2 Gen 1 Output
	1x RJ45 (NDI) Input/Output
Embedded Audio	HDMI/SDI
Audio I/O	2x XLR Mic/Line Input
	2x XLR Monitor/Line Output
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Power I/O	1x XLR 4-Pin (16.8 VDC) Input
Other I/O	1x BNC (LTC) Input
	1x 2.5 mm (LANC) Input/Output
Media/Memory Card Slot	Single Slot: CFexpress Type B [Supports Recording]
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
	5.7K: 30
	DCI 4K: 60
	UHD 4K: 60
	1080p: 60
	1080i: 60/50
	720p: 60
	HDMI (8/10-Bit 4:2:2/4:2:0 YCC)
	DCI 4K
	UHD 4K: 60
	1080p
	1080i: 60/50
	720p: 60
Video Signal Conversion	HDMI to SDI

	SDI to HDMI
Timecode Support	Yes
Recording
Pulldown Conversion	2:2, 3:2
Camera Trigger	SDI, HDMI
Pre-Roll Record	4K: 2 Seconds
	Full HD: 8 Seconds
Encoding Formats	x
	ProRes 422, 422 HQ, HQ, LB, LT, Raw, SQ
	DNxHD 36, 145, 220x, HQ, HQX, LB, SQ
Maximum Audio Tracks	12
Closed Caption Support	No
Power
Input Power	12 to 16.8 VDC
Battery	No
Power Consumption	75 W
General
Environmental Resistance	No
Operating Conditions	Up to 104°F / 40°C
Material of Construction	Aluminum, Plastic
Dimensions	19 x 12.2 x 2.4" / 482 x 310 x 60 mm
Weight	11.51 lb / 5.22 kg
