Autocue VGA 1 in 4 out videsplitter
by Autocue- Ideal for Multi-Prompter Setups
- High Bandwidth - 400MHz (−3dB)
- HDTV Compatible
- Kr-isp Advanced Sync Processing
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

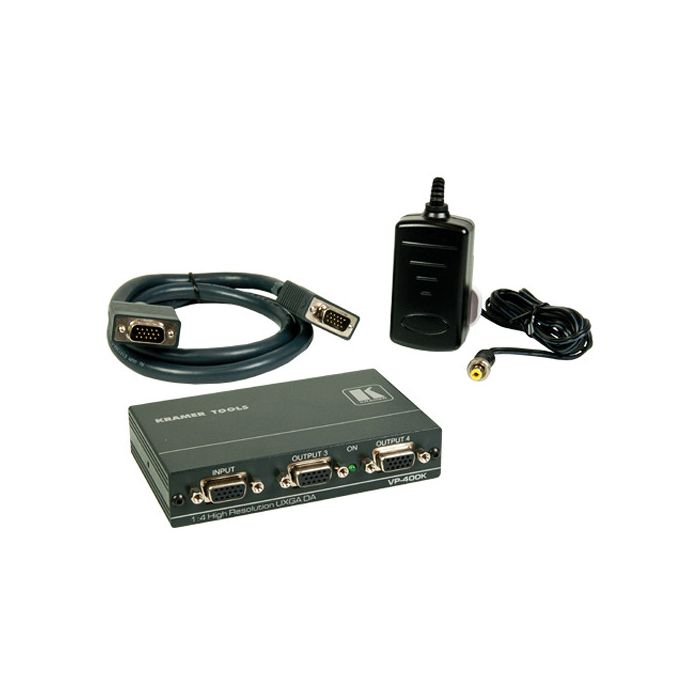

Sadržaj pakiranja
Autocue/QTV VGA Video Splitter (1x4)
3' (0.9 m) VGA Male/Male Cable
Power Supply (5VDC/2.6A)
Mounting Bracket
7-Year Warranty
The Autocue VGA Video Splitter (1x4) by Kramer outputs a single VGA signal to 4 devices. This device is ideal when you need to send the same computer VGA signal out to multiple prompters.
Along with a high bandwidth of 400MHz and ID bit control this device incorporates Kramer's Kr-isp Advanced Sync Processing which, by restoring the sync signal waveform, overcomes the problem of low sync, thus ensuring compatibility with a greater range of computer devices.
EDID PassThru is another important function used by this device to pass EDID/HDCP signals from a source to the display. An optional rack adapter (RK-3T) is available for installing three of these units, side by side, in a 1U rack space.
- Kr-isp Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr−isp advanced sync processing can be enabled or disabled.
- EDID PassThru - Passes EDID/HDCP signals from source to display.
- Selectable Sync Input Impedance - 75Ω (video), 510Ω (Graphics/TTL)
- Compact Kramer TOOLS - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter
Input: 1 UXGA on an 15-pin HD connector
Output: 4 UXGA on 15-pin HD connectors
Output Level: Max. output level: 2.2Vpp
Bandwidth: 400MHz / 3dB
Differential Gain: 0.03%
Differential Phase: 0.03°
K-Factor: <0.05%
Signal to Noise Ratio: 72dB @ 5MHz
Controls: Internal ID BIT switch; internal analog/TTL switches for setting the sync
Coupling: DC
Options: RK-3T 19" rack adapter
Power Requirements: 5VDC. 130mA
Dimensions (WxDxH): 4.8 x 2.8 x 1" (122 x 71 x 25mm)
Weight: 0.7 lbs (0.3kg)
