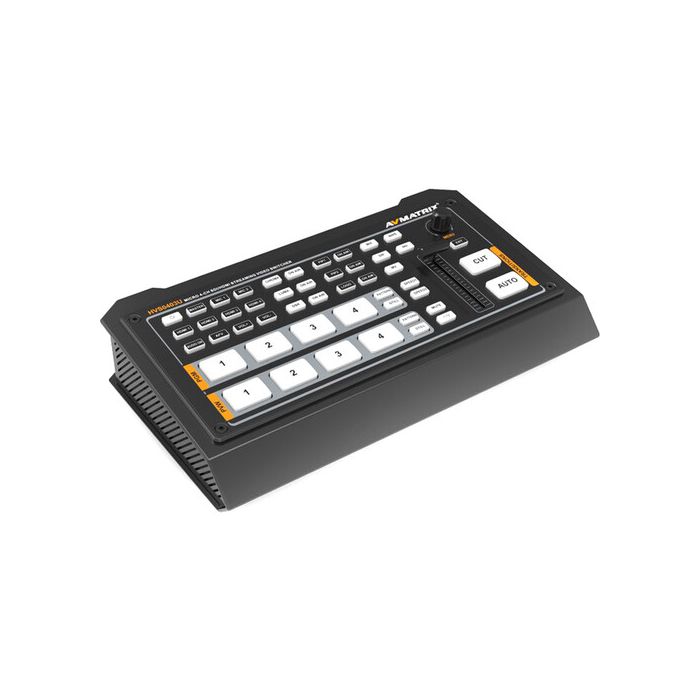

AVMATRIX HVS0403U 4-Ch HDMI SDI Multi-formatStreaming Video Switcher

by Avmatrix
Raspoloživost: Dostupno
SKU
HVS0403U
  • Compact 4-Channel Video Switcher
  • 2 x HDMI and 2 x SDI Autodetected Inputs
  • 1 x HDMI Multiview, 2 x HDMI PGM Outputs
746,75 €/5.626,39kn 597,40 €/4.501,11kn
Tečaj konverzije: 1 EUR = 7,53450 HRK

Sadržaj pakiranja

  • AVMATRIX HVS0403U Micro 4-Channel SDI & HDMI Video Switcher
  • Power Supply
  • USB Type-A to Type-C Cable
  • Tally Connector

Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetected inputs, the HVS0403U is a compact and user-friendly video switcher loaded with powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or with the T-bar.

Bring in four separate sources for switching up to 1080p60 video with embedded audio, or mix in additional audio originating from two analog stereo 3.5mm mic/line inputs. An HDMI output with multiview support provides ideal previewing functions, and two HDMI program outputs with scaling features give you flexibility for sending simultaneous signals to a display for live events and a recording terminal for editorial consideration. There is also a USB Type-C video output to connect to a computer for video capture and livestreaming, while a LAN port enables you to control the switcher using software via IP.

Logo overlays are supported from a variety of different image file formats, including PNG, JPG, and BMP, and you have the option of capturing up to 16 screenshots and storing up to 16 images using the USB Type-A input with 39 default patterns and two color generators. A tally interface supports GPIO, still frame, mute, and fade-to-black (FTB) functionality.

Scaled Output and Multiview

The switcher supports multiview formats, including 1080p, 1080i, 720p, 576i, and 480p HDMI and SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, and multiview.

USB Capture for Streaming

Connect the switcher to a computer via the USB Type-C output and use software like OBS, PotPlayer, or vMix to realize livestreaming on YouTube, Facebook, Twitter, and other social media platforms.

Upstream and Downstream Keying

The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.

Transition Effects

There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.

Powerful Media Management

The media management functions feature 39 preset patterns, and users can import images from a USB thumb drive or capture and store the screenshot image originating from SDI1, SDI2, HDMI3, HDMI4, clean PGM, and PGM.

Audio Mixing and Audio Follows Video

Easily mix the embedded audio from the two HDMI and two SDI sources or set the embedded audio function to AFV (audio follows video) mode. You can also bring in two external audio sources via the unit's two 3.5mm analog (mic/line) inputs.

PC Control Software

A free software can be downloaded from the manufacturer's website allowing users to control all settings of the device via IP.

AVMATRIX HVS04 Specs

Available M/E Layers

2 M/E

Effect Types

1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key

Graphics Memory

32 Images

Downstream Keys

1 x Chroma, Luma, DVE

Generators

2 x Color
1 x Pattern

Audio Mixing

2-Channel Mixing

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p

Color Processing

YUV
RGB

Input

Number of Video Input Sources

4

Video Input Connectors

2 x HDMI Female
2 x BNC (3G-SDI) Female

Input Video Format

HDMI
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps

Audio Input Connectors

2 x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel (per Input)
SDI: 2-Channel (per Input)

Output

Video Output Channels

2

Video Output Connectors

2 x HDMI Female (Program)
1 x HDMI Female (Preview)
1 x USB Type-C (USB Video) Female

Output Video Format

HDMI
1080p at 23.98/24/25/30/50/60 fps
1080i 50/60 fps
USB Type-C
1080p at 60 fps

Embedded Audio Output

HDMI: 2-Channel (per Output)
USB Type-C: 2-Channel (per Output)

Multiview Output

4-Way Multiview viaHDMI

Monitor Output

1 x HDMI

Connectivity

Other I/O

1 x DE-15/DB-15 Tally Input
1 x RJ45 LAN Input/Output
1 x USB Type-A Firmware, Service Input

Video Standard Compliance

SMPTE 259M/292M/424M

Compatible Services

Facebook Live, Livestream, Skype, Twitch, YouTube Live

Recording Media

1 x USB 2.0 Type-A (External Drives)

Power Connector

1 x Barrel (7 to 24 VDC) Input

Power Consumption

12 VDC at 1 A (12 W)

Environmental

Operating Temperature

-4 to 140°F / -20 to 60°C

Storage Temperature

-22 to 158°F / -30 to 70°C

General

Dimensions

9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm

Weight

2.3 lb / 1 kg

Packaging Info

Package Weight

3.175 lb

Box Dimensions (LxWxH)

13.1 x 8.95 x 3.7"
