Blackmagic Design 2110 IP Converter 3x3G

by Blackmagic Design

Dostupnost: Isporuka 10-14 dana

SKU

CONVNVIPA3/3G

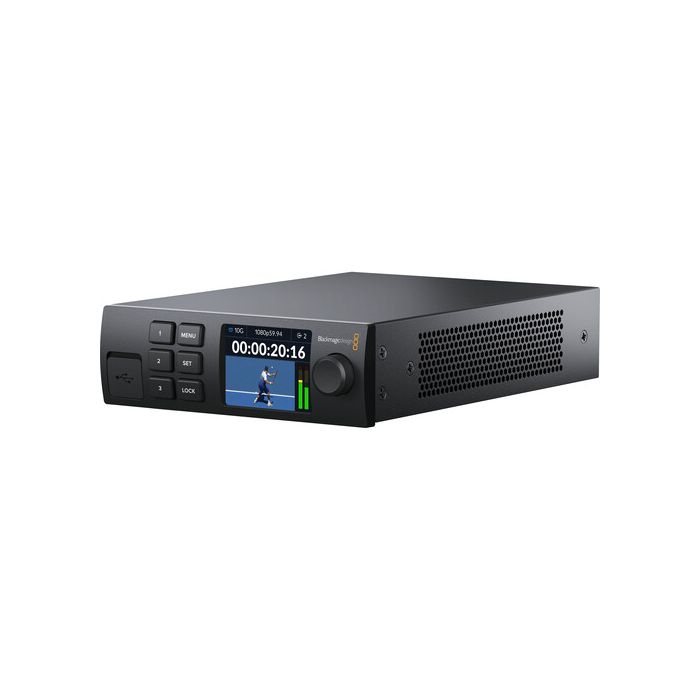

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems.

656,25 € 525,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Blackmagic 2110 IP Converter 3x3G
Welcome wallet with QR code for software download

Opis

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!

Specifikacije

Connections
SDI Inputs	3
SDI Loop Outputs	3
SDI Outputs	3
SDI Audio Inputs	16 channels embedded audio.
SMPTE 2110 Input / Output	10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
10G Ethernet Port	1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Reference Output	Tri-Sync or Black Burst.
Computer Interface	USB-C for updates, configuration and control.
Video Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITU-R BT.656, ITU-R BT.601.
SDI Metadata Support	RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling	Television standard sample rate of 48 kHz and 24 bit.
Color Precision	8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color Space	REC 601, REC 709
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)	IGMP v2
SMPTE 2110-21 (Traffic Shaping)	Sender: Narrow
	Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)	Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)	Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time Protocol	IEEE 1588-2008 (PTP v2)
	ST 2059-1
	ST 2059-2
NMOS IS-04 Discovery and Registration	v1.3.2
	Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management	v1.1.2
NMOS BCP-002-01	Natural Grouping
NMOS BCP-004-01	Receiver capabilities
Control
Built in Control Panel	6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External Control	RJ-45 10Gb/s Ethernet and USB-C.
Display	Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.
Operating Systems	Mac 12.0 Monterey,
	Mac 13.0 Ventura or later.

	Windows 10, 64-bit.
	Windows 11.
Power Requirements
Power Supply	1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs	1 x IEC C14 socket for AC power.
	1 x RJ45 Ethernet connector for power from PoE+ power supplies.
Power Usage	20 W
Environmental Specifications
Operating Temperature	5° to 40 ° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
