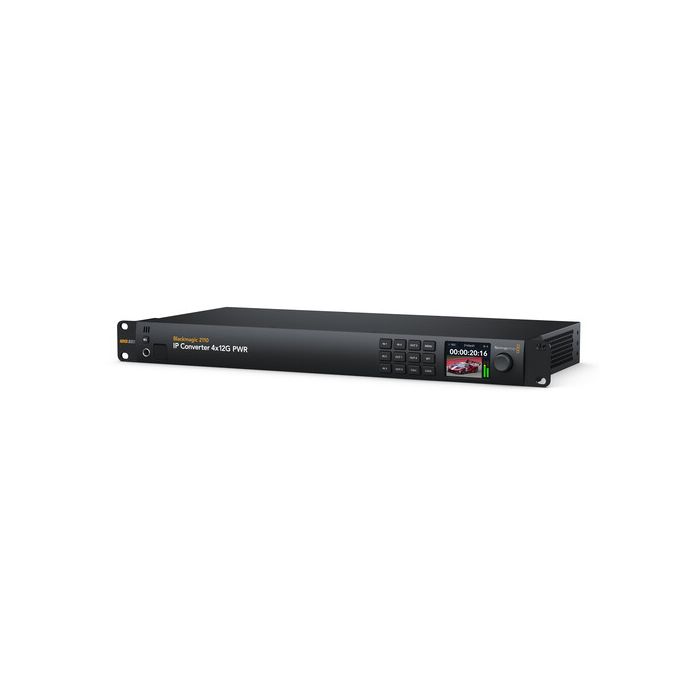

Blackmagic Design 2110 IP Converter 4x12G PWR
by Blackmagic Design
Dostupnost:
Isporuka 7-10 dana
SKU
CONVNVIPB4/12GPWR
Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment.
2.411,25 €
1.929,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic 2110 IP Converter 4x12G PWR
- Welcome wallet with QR code for software download
Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.
Connections | |
Total SDI Inputs | 5 |
SDI Video Inputs | 4 |
SDI Main Program Inputs | 1 |
Total SDI Outputs | 5 |
SDI Video Outputs | 4 |
SDI Main Program Outputs | 1 Loop Out. |
SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
SMPTE ST-2110 IP Video Inputs | 4 x 10G Ethernet |
SMPTE ST-2110 IP Video Outputs | 4 x 10G Ethernet |
Analog Audio Outputs | 1 x 6.35 mm headphone socket. |
SDI Audio Inputs | 16 Ch embedded audio on SDI input. |
SDI Audio Outputs | 16 Ch embedded audio on SDI loop output. |
SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
Multi Rate Support | Auto detection of SD, HD, Ultra HD and 4K. |
Reclocking | Yes |
Ethernet | 4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters. |
1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates. | |
Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. |
SDI Video Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 |
1080i50, 1080i59.94, 1080i60 | |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
1080PsF25, 1080PsF29.97, 1080PsF30 | |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards | |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. | |
SDI Compliance | |
SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
SDI Color Precision | 4:2:2 |
SDI Color Space | YUV |
SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. |
IP Video Compliance | |
SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
Receiver: Narrow, Wide Synchronous, Asynchronous | |
SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
ST 2059-1 | |
ST 2059-2 | |
NMOS IS-04 Discovery and Registration | v1.3.2 |
Peer-to-peer via mDNS/DNS-SD | |
NMOS IS-05 Connection Management | v1.1.2 |
NMOS BCP-002-01 | Natural Grouping |
NMOS BCP-004-01 | Receiver capabilities |
Audio | Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket. |
Control | Built in Control Panel |
12 button control panel, 2.2 inch color display and spin knob for setup and menu settings. | |
Operating Systems | Mac 13.0 Ventura, |
Mac 14.0 Sonoma or later. | |
Windows 10 and 11. | |
Power Requirements | |
Power Supply | 2 x Internal 100 ‑ 240V AC 50/60Hz with IEC C14 mains input. |
Power Usage | TBA |
Physical Installation | 1 rack unit. |
Environmental Specifications | |
Operating Temperature | 5° to 40° C (41° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non‑condensing |
