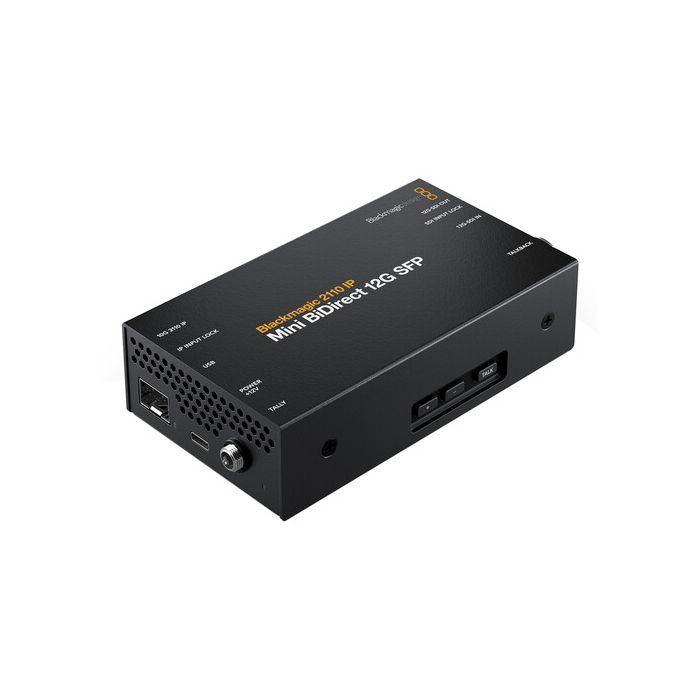

Blackmagic Design 2110 IP Mini BiDirect 12G SFP
by Blackmagic Design
Dostupnost:
Isporuka 7-10 dana
SKU
CONVNVIPF/IP/12GSFP
Blackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber.
423,75 €
339,00 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic 2110 IP Mini BiDirect 12G SFP
- Welcome wallet with QR code for software download
Blackmagic 2110 IP Mini BiDirect 12G SFP lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems over long distances using optical fiber. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G SFP also has a 5 pin XLR talkback headset connection with talkback volume control and a press to talk button. The SFP socket will accept 10G Ethernet, 3G-SDI, 6G-SDI or 12G-SDI optical modules. It also includes a 12 DC power supply.
Connections | |
SDI Video Inputs | 1 |
SDI Video Outputs | 1 |
SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
SMPTE ST-2110 IP Video Inputs/Outputs | 1 x 10G Ethernet |
Analog Audio Inputs | 1 x 5 pin XLR Talkback. |
Analog Audio Outputs | 1 x 5 pin XLR Talkback. |
SDI Audio Inputs | 16 Ch embedded audio on SDI input. |
SDI Audio Outputs | 16 Ch embedded audio on SDI loop output. |
SMPTE ST 2110 IP Audio Inputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
SMPTE ST 2110 IP Audio Outputs | 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
Multi Rate Support | Auto detection of SD, HD, 2K, Ultra HD and 4K. |
Reclocking | Yes |
Ethernet | 1 x 10Gb/s SFP optical fibre sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
Computer Interface | 1 x USB-C 3.0 for configuration and firmware updates. |
SDI Video Standards | |
SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
HD Video Standards | 720p50, 720p59.94, 720p60 |
1080i50, 1080i59.94, 1080i60 | |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 | |
1080PsF25, 1080PsF29.97, 1080PsF30 | |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
SDI Compliance | |
SDI Video Rates | SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
SDI Color Precision | 4:2:2 |
SDI Color Space | YUV |
SDI Auto Switching | Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G‑SDI input and user selectable on 3G‑SDI output. |
IP Video Compliance | |
SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow |
Receiver: Narrow, Wide Synchronous, Asynchronous | |
SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
Codec | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
Precision Time Protocol | IEEE 1588-2008 (PTP v2) |
ST 2059-1 | |
ST 2059-2 | |
NMOS IS-04 Discovery and Registration | v1.3.2 |
Peer-to-peer via mDNS/DNS-SD | |
NMOS IS-05 Connection Management | v1.1.2 |
NMOS BCP-002-01 | Natural Grouping |
NMOS BCP-004-01 | Receiver capabilities |
LED Indicators | 1 x IP Input Lock LED indicator light |
1 x SDI Input Lock LED indicator light | |
1 x Tally LED indicator light | |
Control | Talkback button controls for Volume Up, Volume Down and Push to Talk. |
Talkback and Tally | |
Talkback | 5‑pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video. |
Live Tally Indicator | Tally LED indicator light |
Operating Systems | Mac 13.0 Ventura, |
Mac 14.0 Sonoma or later. | |
Windows 10 and 11. | |
Power Requirements | |
Power Supply | 1 x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries. |
Operational Voltage Range | 12 - 16 V |
Power Usage | 18W |
Environmental Specifications | |
Operating Temperature | 5° to 40° C (41° to 104° F) |
Storage Temperature | -20° to 45° C (-4° to 113° F) |
Relative Humidity | 0% to 90% non‑condensing |
