Blackmagic Design ATEM 4 M/E Constellation HDby Blackmagic Design
Supports 3G/HD-SDI at 10-Bit
40 x 3G-SDI Inputs, 24 x 3G-SDI Outputs
Up to 16-Multiview Monitoring Windows
Webcam Output via USB Type-C
Frame Rate/Format Converter per Input
156-Channel Audio Mixer
16 x Upstream, 4 x Downstream Keyer
Hardware or Software Mac/Windows Control

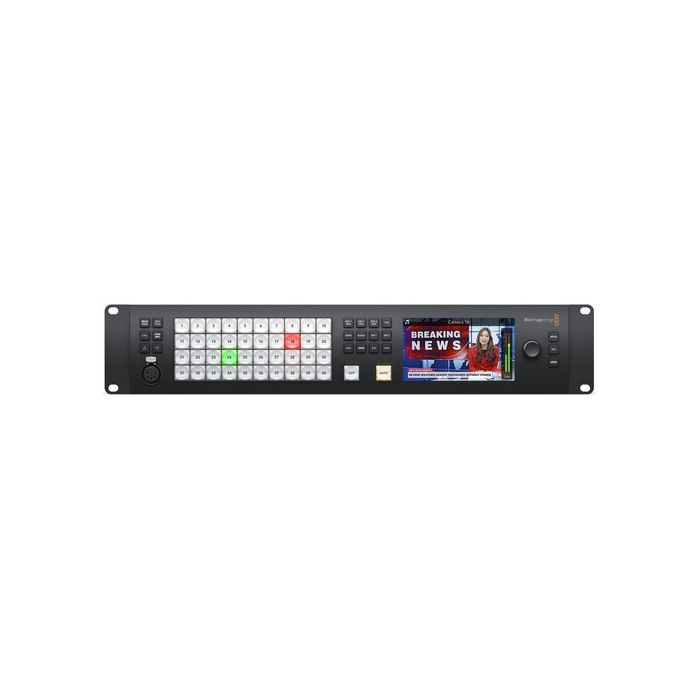

- Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher (2 RU)
owerful live event HD switching, supporting up to 40 individual 3G-/HD-SDI inputs built into a 2 RU chassis, is at hand with the Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 24 3G-SDI BNC outputs or a webcam output via USB Type-C. In addition, the switcher has four multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 156 channels of audio.
The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
The ATEM Constellation HD includes a wide range of broadcast-quality native transitions such as mix, dip, wipe, and more. All transitions can be customized in the system control menus with adjustments for border color, border width, position, direction, and a lot more. The ATEM Constellation switcher includes a powerful digital video effects processor for DVE transitions, which can be used to squeeze the current picture offscreen, revealing a new video under it. The DVE can even be used to create graphic wipe transitions. To eliminate errors, ATEM Constellation HD features a preview transition feature so you can set up your transitions before you switch it on air.
The ATEM Constellation features two independent DVEs that let you reposition graphics and create picture-in-picture compositions. You get amazing quality, and the DVE supports position, resize, and scale, all in real time. The DVE lets you create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. DVEs can also be used to create amazing DVE transitions with squeeze and swoosh effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions. The 2 M/E model includes SuperSource processors for six DVEs.
In addition to the DVEs in the M/E rows, the 2 M/E model includes powerful SuperSource multilayer processors with four extra DVE layers plus a background layer, all appearing to ATEM Constellation HD as an additional input source. Any switcher video input can be used for each SuperSource DVE, then it's all layered together over a media pool custom background. SuperSource is just like having an extra multi-layer VFX switcher built in. SuperSource is perfect for doing picture-in-picture displays for interviews because you can set up the effect while keeping the main DVEs free for other tasks.
Configurable to 16, 13, 10, 7, or 4 up view. It includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters. The 2 M/E model features two multiview outputs.
Professional Broadcast Talkback
To keep crews working as a single creative team, ATEM Constellation features built-in talkback. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ12 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS. You get full talkback control, including program and engineering loops, sidetone control for hearing the headset mic into the headphones, and program mix. ATEM Constellation HD also supports SDI talkback that uses SDI channels 15 and 16 for 2-way communication with Blackmagic Design cameras. You can even use channels 13 and 14 for engineering talkback. It's even possible to mix the talkback mic into the program audio for voiceovers.
The built-in media pool stores broadcast quality RGBA graphics and animations that can be played back instantly by the two or four media players. Media players simply appear as additional input sources on the ATEM Constellation HD, so you don't have to use extra SDI inputs for graphics. The built-in media pool holds graphics for use with the media players. The 2 M/E model can hold 40 stills and 400 frame animations. You can easily manage all your media using the included ATEM Software Control or download directly from Photoshop using the ATEM Photoshop plug-in.
For news or virtual set work, ATEM Constellation HD is perfect as it features lots of ATEM advanced keyers for high-quality chroma or luminance keying. The chroma keyer is incredibly powerful and features a color picker to sample background colors for automatic generation of the key parameters. You get precise controls for edge and flare, and there is even a foreground color corrector so you can match the "look" of the foreground layer to the background layer making seamless compositions possible. The keyer can also be used for pattern and DVE keying. You get eight ATEM Advanced Keyers on the 2 M/E model.
Upstream Chroma Keyers
With four upstream chroma keyers per M/E row, you get the perfect solution for building virtual sets. With so many ATEM Advanced chroma keyers, you can use a keyer per camera to create a seamless composition of the camera over the custom background. The 2 M/E model has enough keyers to generate a 4-camera virtual set. You can use external image processors for virtual sets, or you can even build a fixed camera virtual set by loading pre-rendered still image backgrounds from the media players and media pool. You can set up macros to change cameras and load the correct background into the media players. With so much flexibility, you can experiment to try out different studio setups.
Multi-Rate 3G-SDI Input
With up to 20 multi-rate 3G-SDI input connections, depending on the model, the ATEM Constellation HD is compatible with all types of HD video sources. You can connect equipment in all HD television standards, including 720p, 1080i, and 1080p formats. Only multi-rate 3G-SDI allows switching between HD formats, so you can instantly adapt to the needs of the job you are doing anywhere in the world. The SDI inputs will also handle embedded audio and mix audio from all video inputs. Plus, the program outputs include talkback, tally, and camera control information. That means you can connect any of the switcher SDI outputs back to the camera for program return, camera control, and talkback.
ATEM Constellation HD fully embraces live professional audio production. All SDI inputs are connected to a built-in Fairlight audio mixer that features a 6-band parametric EQ, compressor, limiter, noise gate, and expander on each input.
ATEM Software Control Panel
The ATEM Software Control Panel gives you total control over your switcher and is included for free. The ATEM Software Control Panel features a beautifully designed interface with a visual switcher and parameter palettes for making quick adjustments. Multiple users can connect to the switcher via Ethernet, and all work on different parts of the event at the same time. The ATEM Software Control also lets you access camera control, audio mixing, media, macro programming, and even control of HyperDeck disk recorders. You can save the full state of the switcher as XML files, plus all media is backed up from the media pool. You can run the software on Mac or Windows.
Supports Optional Control Panels
Three models of ATEM Advanced Panels are available. ATEM Advanced Panels feature an industry-standard, familiar M/E style layout. Each panel has built-in LCDs for menus, high-quality buttons with customizable illumination color, a DVE joystick, and a T-bar fader. You can even set up and trigger macros. All rows of M/E buttons include integrated LCDs for dynamic input button labeling. The 1 M/E model features a single M/E row with 10 input buttons. The 2 M/E model features 2 M/E rows with 20 input buttons. The massive 4 M/E model features four M/E rows with 40 input buttons per row and four independent system control LCD screens.
|Available M/E Layers||4 M/E|
|Effect Types||16 x Chroma Key
21 x Luma Key
4 x Stinger
12 x DVE
|Downstream Keys||4 x Chroma, Luma, DVE|
|Generators||2 x Color
21 x Pattern
|Audio Mixing||156-Channel Mixing|
|Switching Type||Pushbutton, Software|
|Color Processing||10-Bit 4:2:2|
|Number of Video Input Sources||40|
|Video Input Connectors||40 x BNC (3G-SDI / HD-SDI)|
|Input Video Format||SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
|Audio Input Connectors||2 x 1/4" TRS Stereo Analog Female
1 x BNC Stereo MADI
|Input Audio Format||Analog|
|Embedded Audio Input||SDI: 2-Channel (per Input)|
|Video Output Channels||24|
|Video Output Connectors||24 x BNC (3G-SDI / HD-SDI)
1 x USB Type-C (USB Video) (Program)
|Output Video Format||SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
|Audio Output Connectors||2 x 1/4" TRS
2 x BNC Stereo MADI
|Output Audio Format||Analog|
|Embedded Audio Output||SDI
|Multiview Output||16-Way Multiview viaSDI|
|Other I/O||1 x BNC Blackburst, Reference, Tri-Level Sync Input
1 x RJ45 Control
1 x RJ12 Control
1 x RJ45 Talkback Input/Output
1 x XLR 5-Pin Talkback Input/Output
|Video Standard Compliance||SMPTE 292M/296M/424M/425M-A/425M-B|
|IP Video||1280 x 720 to 1920 x 1080 Encoding|
|OS Compatibility||macOS 11.1
macOS 12.0 or Later
|Power Connector||2 x IEC C14 Input|
|Power Consumption||Device: 147 W|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Storage Temperature||-4 to 140°F / -20 to 60°C|
|Operating Humidity||0 to 90% (Non-Condensing)|
|Rack Form Factor||2 RU|
|Dimensions||19 x 9.1 x 3.48" / 48.3 x 23.1 x 8.84 cm|
|Weight||11.53 lb / 5.23 kg|
