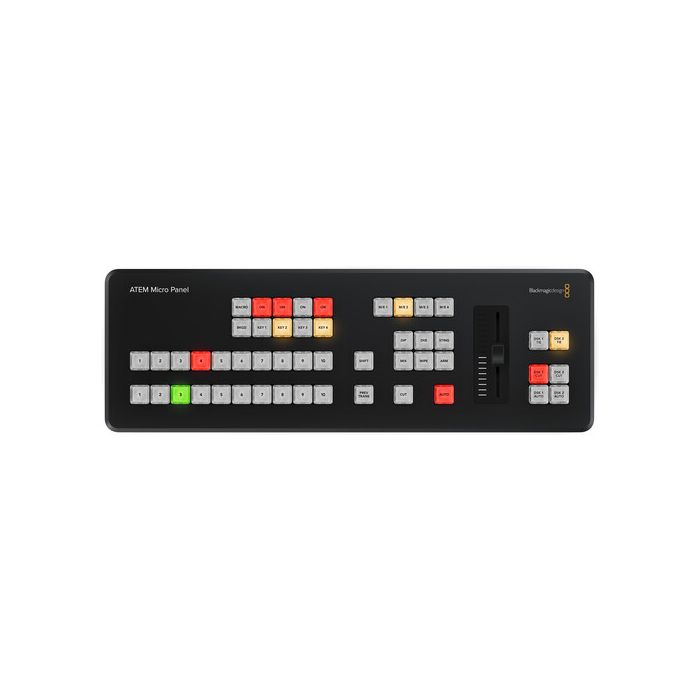

Blackmagic Design ATEM Micro Panel

by Blackmagic Design

Dostupnost: Isporuka 7-10 dana

SKU

SWPANELAA1ME10

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control.

748,75 € 599,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

ATEM Micro Panel
Welcome wallet with QR code for software download

Opis

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

Specifikacije

Connections
Computer Interface	USB Type‑C.
Bluetooth	Bluetooth 5.1 LE
Product Specifics
Number of Mix Effects Rows	1
Direct Cross Points	10
Shifted Cross Points	20
Crosspoint Button Type	Tri-Color LED
Preview Transition	1
Switching Type Buttons	CUT and AUTO
Transition Type Buttons	DIP, DVE, STINGER, MIX, WIPE.
M/E Select Buttons	4
Upstream Key Buttons	4 with ON/OFF
Downstream Key Buttons	2 with ON/OFF
Transition Slider	1
Software
Software Applications	ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems	Mac 13.0 Ventura,
	Mac 14.0 Sonoma or later.
	Windows 10 and 11.
Power Requirements
Power Supply	Internal battery with power switch.
	USB-C port for external power supply and battery charging.
Power Usage	3 W max.
Battery Life	Minimum 6 hours. (under normal use)
Environmental Specifications
Operating Temperature	5° to 40° C (41° to 104° F)
Storage Temperature	-20° to 45° C (-4° to 113° F)
Relative Humidity	0% to 90% non‑condensing
What's Included	ATEM Micro Panel
	Welcome wallet with QR code for software download
