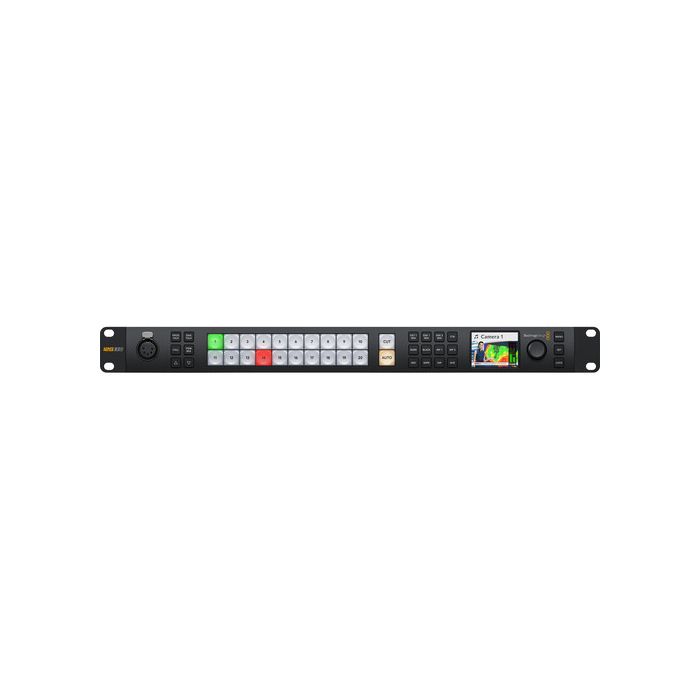

Blackmagic Design ATEM Monitoring Rack Panel 20

Dostupnost: Isporuka 7-10 dana

SKU

SWPANELABRMP20

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 20 from Blackmagic Design.

1.136,25 € 909,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Blackmagic Design ATEM Monitoring Rack Panel 20

Opis

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 20 from Blackmagic Design. This video converter comes in a 1 RU form factor that looks like an ATEM switcher, but its basic use is a video converter for monitoring your SMPTE 2110 IP streams on dual 12G-SDI and HDMI monitors. It features 10G Ethernet ports to source your SMPTE 2110 video on redundant networks, 20 backlit front buttons for easy control, redundant power, a front LCD, a talkback connection, and a 1G Ethernet port that allows control via LAN.

Additional Details

Two 10G RJ45 connectors
One SMPTE 2110 IP video input to one HDMI and two SDI outputs
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
One 1G RJ45 for connection to the switcher and NMOS control
Two SDI Program, two Preview, and two multiview outputs
One HDMI multiview output
16-channel embedded audio on both SDI outputs
8-channel embedded audio on HDMI output
One 5-pin XLR talkback connection with control buttons on the front
Redundant IEC C14 power inputs
USB-C input for setup utility and software updates

Specifikacije

General
Compatibility	Not Specified by Manufacturer
Buttons	22 x LED Backlit
	8 x Source
	4 x Transition
	6 x Talkback and Mix
Rack Units	1 RU
Video Formats	UHD 4K 3840 x 2160p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
	HD 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
	HD 1920 x 1080i: 60, 59.94, 50
	1280 x 720p: 60, 59.94, 50
Color	10-Bit, 4:2:2
Color Spaces	Rec. 709, Rec. 2020
Video Standard Compliance	SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
Codecs Supported	SMPTE 2110 IP
	Blackmagic IP10 Optional for 2160p59.94 and 2160p60
Supported Protocols	IEEE 1588-2008 (PTP v2)
	ST 2059-1
	ST 2059-2
	NMOS
Supported Operating Systems	macOS 14.0 Sonoma, 15.0 Sequoia, 26.0 Tahoe or Later
	Windows 10 and 11, Windows 11 for ARM
Software	ATEM Setup Utility
	ATEM Software Control Panel
Display
Panel Type	LCD
Size	Not Specified by Manufacturer
Touchscreen	No
Inputs/Outputs
USB I/O	1 x USB-C (Firmware Only) Female Input
Video I/O	2x RJ45 Input ( Redundant 10G LAN Connections )
	2x BNC (12G-SDI) Monitor Output ( Program, Preview, Multiview )
	1x HDMI 2.0 Monitor Output ( Multiview )
Audio I/O	1x XLR 5-Pin Headphone/Mic Input/Output (Talkback)
Other I/O	1 x RJ45, 1G Ethernet Control
Power
Power Source	Plug-In Power
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Input	2 x IEC C14 (Redundant)
Physical
Mounting	2x Rack Ears
Color	Black
Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions	19 x 8.94 x 1.74" / 48.3 x 22.71 x 4.42 cm
