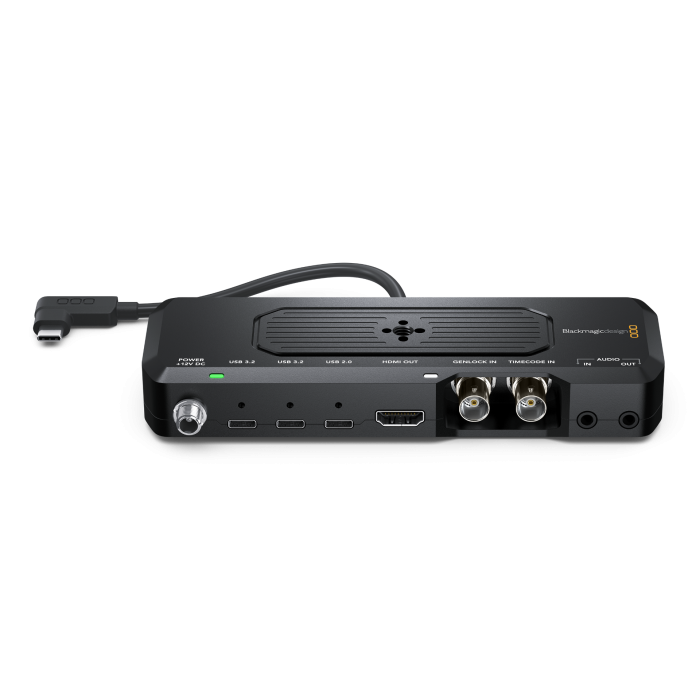

Blackmagic Design Camera ProDock

Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig. It also supports the Blackmagic Camera app for iPhone! You get connections for HDMI monitoring, mic, headphones, genlock, USB for external disks and power! With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. You get 3 USB-C ports so you can connect control accessories and external SSDs for recording, plus the power management will ensure everything can run at the same time.

Connections
HDMI Video Outputs: 1x HDMI 2.1 (Type A), Outputs resolution and frame rate set in Blackmagic Camera for iOS.
Audio Inputs: 1x 3.5mm stereo mini-jack.
Audio Outputs: 1x 3.5mm stereo mini-jack.
Timecode Input: 1x BNC, 1x 3.5mm audio input supports timecode in.
Genlock Input: 1x BNC, Tri-Sync or Black Burst.
USB-C Ports: 2x USB 3.2 high speed ports for recording to external media, 1x USB 2.0 port for accessories
Power: +12V to +15V DC input with locking 5.5mm barrel connector.
iPhone Connection: 1x USB-C cable and plug.

Audio
Microphone: Connect external microphones via the 3.5mm stereo mini-jack, or USB‐C ports.
Monitor: Connect headphones via the 3.5mm stereo mini-jack audio output.

Media
Record Blackmagic Camera clips to internal iPhone storage or external storage connected by USB.

Display
Status Indicator: 1 x power LED indicator, 1 x front tally LED indicator, 1 x genlock LED indicator.
