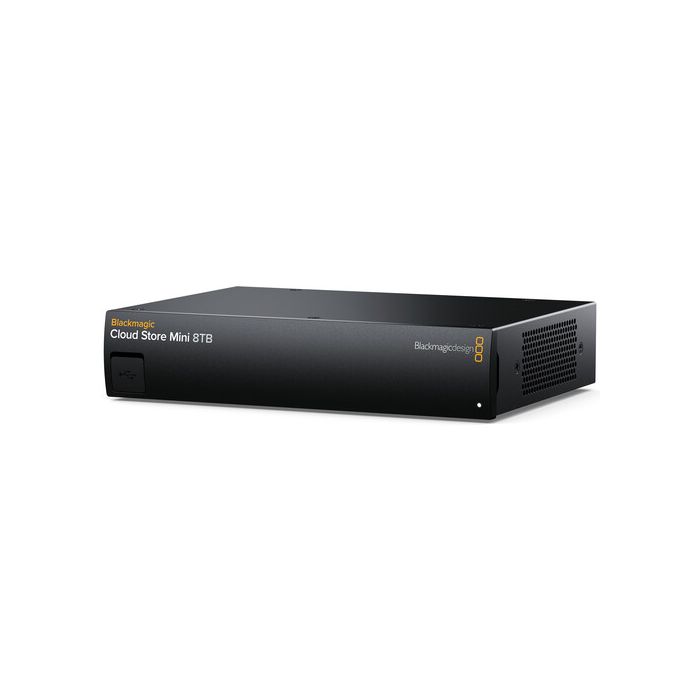

Blackmagic Design Cloud Store Mini 8TB

by Blackmagic Design
Raspoloživost: Isporuka 14-20 dana
SKU
DWCLDE/CLDMINI08

8TB NVMe M.2 Flash Storage
Rackmount Design with Silent Cooling
Configured as RAID 0
10Gb/s & 1Gb/s Ethernet Ports
HDMI Monitoring Output for Status
USB Type-C Port for Local Backup
USB Type-C-to-Ethernet Port
USB Connectivity for Settings
Dropbox Sync Support
Software Utility for Windows and Mac

Regularna cijena 27.512,50 kn Posebni popust 26.136,88 kn 20.909,50 kn
-5%

Sadržaj pakiranja

  • Blackmagic Design 8TB Cloud Store Mini (4 x 2TB)

Designed for film and television productions, where large media files need to be shared between multiple users, the 8TB Cloud Store Mini from Blackmagic Design is well suited for editing, color correction, audio, post, and VFX work. It has a capacity of 8TB, which is made up of 4 x 2TB NVMe M.2 SSDs, which are preconfigured as RAID 0 and able to handle 12K Blackmagic raw digital cinema files. The Cloud Store Mini is also equipped with a 10GbE port and 1GbE port for network access, as well as a USB Type-C port that features a built-in network adapter for systems that don't have an RJ45 port. There is also a 5 Gb/s USB Type-C port for standard data transfers, plus an HDMI output that lets you keep track of your Cloud Store Mini's status, including a storage map, speed graphics, sync, active users, and power status.

Designed for Film and Television

The Blackmagic Cloud Store Mini is the perfect network storage solution for any use! It's great for film and television where large media files need to be shared between multiple users for editing, color correction, audio, post, and VFX work. It even handles massive 12K Blackmagic raw digital cinema files. Each user gets zero latency and they don't need to store files on their local computer. It's the perfect solution for DaVinci Resolve, while Dropbox sync allows multiple disks to be synchronized in different locations globally. Then, each location gets the fastest editing experience possible, which is critical for multi-cam editing where multiple media files are playing simultaneously.

Portable and Quiet Design

The Blackmagic Cloud Store Mini features a compact rack mount design that's very portable and whisper quiet. Internally it has an array of 4 flash memory cards working in parallel for higher speeds. The 10G Ethernet port and the 1G Ethernet port operate as a 2-port network switch, which is great if you don't have a 10G Ethernet network, as you can connect the 10G port directly into your computer and the 1G port to your existing network. If you need to access files quickly, then the USB Type-C port also operates as a network port - just plug it into your computer. There is also an HDMI monitoring output so you can watch a live graphic view of the storage operating on a TV or monitor.

Flexible Power

An IEC power socket is included for connecting AC power. All international AC voltages are supported so you can use it globally. Plus, there is a separate DC power input for redundancy or battery use.

10G Ethernet

10G Ethernet allows high-speed computers to be connected. It's fast, even when lots of users are connected, all at the same time. It's perfect for connecting to the latest 10G Ethernet switches.

1G Ethernet

The 1G Ethernet connection is provided for slower connections, such as the Internet or slower computers. It is part of the built-in Ethernet switch and helps keep the faster 10G port free.

USB Type-C Connection

The USB Type-C port supports Ethernet for connecting it to your computer to access files. That's possible because there is a USB Type-C to Ethernet adapter built in. This USB Type-C port is also used for settings and updates.

HDMI Monitor Output

The HDMI monitor output lets you see the status of your Cloud Store Mini in real time. Simply plug in a TV or monitor and you'll be able to see a storage map, speed graphics, active users, and power status.

Flash Memory Allows for Multiple Simultaneous Users

The Blackmagic Cloud Store Mini is available with 8TB of flash memory, so you have lots of space for your files. That's fantastic for television production, as it's small enough to be portable, but it has enough storage space for lots of video media. M.2 flash memory cards are used for extreme reliability, high access speeds, and zero seek times. Plus, the four M.2 cards are arranged in a parallel RAID 0 group so they can operate much faster than a single card. That ensures enough speed to keep up with the 10G Ethernet connection. Plus, in the future, as new larger M.2 cards are released, the flash memory cards can be replaced with new ones. That helps ensure a very long life.

10G Speed - High Performance for Digital Film Files

With a separate high-speed 10G Ethernet connection, the Blackmagic Cloud Store Mini is very fast. The internal memory core has been designed to saturate the 10G Ethernet port to its theoretical maximum speed, even with multiple users connected. Plus, files can be accessed with low latency, so responsiveness is fast. That's possible because of the parallel processing used by the memory core. Even at maximum speed, the Blackmagic Cloud Store Mini is extremely quiet with very little noise from the cooling fan, even when editing large 12K digital raw files. Multi-cam editing is also very smooth, even if it's used with large digital film camera files.

Sync to Dropbox

Now you can set up a local cache of your Dropbox files. This makes working much faster because files are instantly available without needing to be downloaded from the internet. The Blackmagic Cloud Store Mini will constantly work to stay in sync. You can save space on your computer by moving cached Dropbox files to the Blackmagic Cloud Store Mini so everyone on your network can share them. You can even sync multiple Blackmagic Cloud Store Minis via Dropbox so people in different geographic locations can collaborate without latency because everyone has a local copy of the files. That makes it a good home or offsite solution.

Add Cloud Service

Make sure your Blackmagic Cloud Store Mini is connected to the internet. Enter in your Dropbox account details, so the Cloud Store Mini can gain access to allow sync.

Set Sync Folders

Next you need to set the sync folders. That tells the Blackmagic Cloud Store Mini where to sync its files to the remote Dropbox. You can have multiple sync folders for different jobs.

Set Sync Direction

Now set the sync direction. One direction is good when you have local files you want to share, but not enough room for everyone's files. Both directions means everyone gets the same set of files.

Distribute Files Globally

With support for Dropbox sync, you can use multiple Blackmagic Cloud Store Mini units to share files globally. That's important when working with large datasets or massive digital film and video files. These files need to be constantly accessed dozens of times a second, so most internet connections are too slow to handle it. While the internet has too much latency to access large files remotely, you can use it to sync these files. Syncing the files to local storage helps eliminate delays in accessing them. That's because everyone has a local copy of the files on their network. The Blackmagic Cloud Store Mini will constantly sync files, even if your computer is turned off.

Real-Time Monitoring

Using the HDMI monitoring output, simply connect a TV or computer monitor to get a live status of the Blackmagic Cloud Store Mini. The storage map shows a graphic representation of the memory core and real time read and write access happening for the connected users. There are also graphs that show you the data transfers on the Ethernet connection. The main space indicator shows you the capacity of the two USB Type-C disks and how much is currently being used. You can also add a custom name to the Cloud Store Mini. Also, the status for each Dropbox connection is also shown and it's even possible to see connected users and the power status.

Usage Indicator

On the top left, you can see the storage capacity indicator. The number on the left is the space used and the number on the right is the total USB Type-C disk capacity connected to the Blackmagic Cloud Store Mini.

Customizable Name

You can give a custom name to the Blackmagic Cloud Store Mini so you can identify it on the monitor display and the utility software. To change the name, just use the Blackmagic Cloud Store utility.

Storage Map

The storage map display shows a view of the two USB Type-C disks. The memory is divided into segments with reads in cyan and writes in orange. The display will automatically adapt when disks are connected.

Cloud Sync Status

The cloud sync status shows each sync folder and its transfers to and from Dropbox. When new files appear in any sync folder, you can see the transfer status as they sync.

User Connections

You can see each of the connected users and the data transfers for each. However, this list will move down if you have more cloud sync folders, as the sync folder status is more important.

Cloud Store Mini Status

You also get hardware status on the lower left side of the display. This includes the cell size for the storage map and the status of the USB Type-C ports and each disk that is currently connected.

Speed Graphs

The lower part of the display has the data transfer speed graph. It shows recent read and write speeds for the 10G Ethernet connection. It's great for diagnosing the Ethernet speed on the port.

High Performance 10G Ethernet

The Blackmagic Cloud Store Mini has a high speed 10G Ethernet port, which is usually only found on expensive workstation computers. With 10G Ethernet, you get 10 times the speed of regular Ethernet, and most computers can be upgraded to add 10G Ethernet. The Blackmagic Cloud Store Mini is fast, so it will run the 10G Ethernet port to its maximum capacity, even when connected to an Ethernet switch with dozens of users accessing files at the same time. The 10G Ethernet port also features very low latency for fast access times. There is also a separate 1G Ethernet port, plus Ethernet on the USB Type-C port, so you can keep the fast 10G Ethernet port free for a faster computer.


Connect via USB Type-C for Quick File Access

Modern laptop computers are so thin, they often don't even have an Ethernet connection, meaning you need an adapter to connect to an Ethernet network. The Blackmagic Cloud Store Mini has a USB Type-C to Ethernet adapter built in and you can access it simply by plugging your computer into its USB Type-C port. Once you have connected the Cloud Store Mini's USB Type-C connection to your computer, you have an Ethernet connection, meaning you can just plug in to quickly grab files when you need them.

Repairable Design for Long Life

The Blackmagic Cloud Store Mini is easy to repair by qualified IT engineers. The design is based on a single PCB that attaches to the 4 memory cards and the AC power supply. This means the flash memory cards can be removed and replaced. Plus, the Blackmagic Cloud Store Mini runs Blackmagic OS so it applies wear leveling, meaning that each M.2 card won't see excessive data writes. You can also see any card faults on the utility and the HDMI monitor output. Plus, in future, as new and larger M.2 flash memory cards are released, the Blackmagic Cloud Store Mini can be upgraded so it has a larger capacity.

No Subscription Costs

One of the big advantages of the Blackmagic Cloud Store Mini is that it's private storage that you fully control. There are no subscriptions to sign up for. There are no monthly license fees. There is no tracking of your usage or data. You don't even need to log into a web page to maintain the storage settings because the Blackmagic Cloud Pod uses free to download software utility that runs on Mac and Windows. That means you can run a private network, totally disconnected from the internet. This is critical for many security standards where computer networks cannot be connected to the external internet. With Blackmagic Cloud Store Mini, you can customize your network storage solution with total freedom.

Free Software for Mac and Windows

When you need to change settings, you can use the Blackmagic Cloud Store utility that's available on Mac and Windows. By default, the Blackmagic Cloud Store Mini is set to DHCP, so you can connect it to your network and start transferring files. In many ways, it plugs in just like a regular hard disk. That means it's so easy to set up, you won't need an IT person to get started. However, if you want to customize your network, then the utility software lets you change the network settings in the Cloud Pod. The utility also lets you add Dropbox sync folders.

Perfect Multi-Camera Video Workflow

Get broadcast-quality video workflows by recording from a HyperDeck Studio directly into the Blackmagic Cloud Store Mini. Just connect the HyperDeck Studio to the 1G Ethernet port, while the 10G Ethernet port can be connected to a high-speed network so multiple DaVinci Resolve workstations can edit the media recorded by the HyperDeck. DaVinci Resolve is a free download and allows you to edit and color the camera files. There is a wide range of HyperDeck Studio recorders and they interface between the broadcast video world and the file-based world used by editing software. Once the files are recorded, DaVinci Resolve will let you start editing.

Exciting Alternative Models

Blackmagic Design has a wide range of network storage options, depending on your needs. The Blackmagic Cloud Store is the highest performance model, which features an elegant vertical design that's also portable. It includes four 10G Ethernet connections with an Ethernet switch, RAID 5 data protection, and redundant power supplies. The Blackmagic Cloud Pod allows almost any USB Type-C disk to be shared on your network, meaning you can use the USB Type-C disks you already have. The Blackmagic Cloud Pod is the lowest cost option for network storage. It also features a 10G Ethernet connection so it's extremely fast. All models support Dropbox sync and the HDMI monitoring output.

Drives
Storage Capacity 8 TB
Included Drives 4 x 2 TB SSD
Initial RAID Configuration RAID 0
Interface NVMe
General
Number of Bays 4 x M.2 (Length Unspecified)
I/O 1 x RJ45 (10GbE)
1 x RJ45 (Gigabit Ethernet)
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
1 x USB Type-C (Ethernet)
1 x HDMI Type-A Output
Compatible Drive Interface NVMe
Form Factor Rackmount
RAID RAID 0
Networking
Supported Protocols SMB
Software
OS Compatibility Windows 11
Windows 10
macOS 12
macOS 11.1
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 35 W (Typical)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 90% (Non-Condensing)
Storage Temperature -4 to 140°F / -20 to 60°C
Physical
Status Monitoring LED Indicator
Audible Alarm No
Dimensions 8.3 x 6.1 x 1.74" / 21.1 x 15.5 x 4.42 cm
Weight 2.5 lb / 1.1 kg
Packaging Info
Package Weight 3.27 lb
Box Dimensions (LxWxH) 10.5 x 10.5 x 3.5"
