Blackmagic Design HyperDeck ISO Recorder 100G

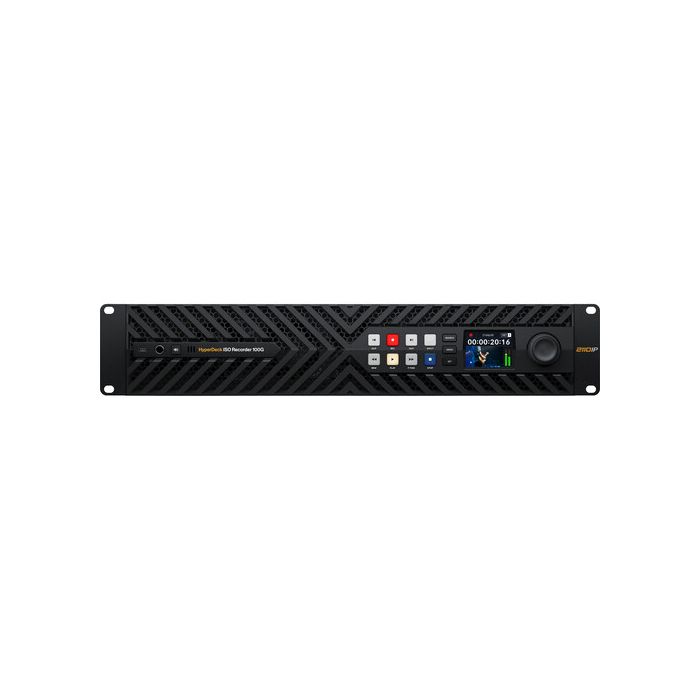

by Blackmagic DesignThe Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic Design HyperDeck ISO Recorder 100G
The Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows. Capable of recording up to eight channels of 10-bit 4:2:2 video at resolutions up to DCI 4K60, the unit captures each feed as an individual ProRes file directly to network storage over dual 100GbE connections. SMPTE ST 2022-7 redundancy ensures uninterrupted recording across dual network paths, while support for 16 channels of embedded audio per stream preserves full multichannel audio integrity for post-production.
Designed for live production and broadcast environments, the HyperDeck ISO Recorder enables simultaneous recording and playback of all eight channels, making it suitable for live switching, replay, and post-event editing. A front-panel 2.2" LCD with machined metal search dial and transport controls provides precise clip navigation and monitoring, complemented by a built-in speaker and headphone output for audio confidence. External control is supported via RS-422 serial, NMOS over RJ45, and USB-C configuration, while dual AC inputs, redundant network paths, and advanced Blackmagic OS management ensure reliable operation in demanding scenarios.
- Records eight simultaneous SMPTE 2110 IP video channels up to DCI 4K60
- Two pairs of 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
- Direct recording to shared network storage over 100G Ethernet
- Supports ProRes 422 HQ, 422, 422 LT, and Proxy codecs
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per video stream
- Simultaneous multichannel playback for testing and replay
- 2.2" front-panel LCD for video, audio, and system monitoring
- Machined metal search dial with electronic clutch and transport controls
- Built-in speaker and headphone output for audio monitoring
- RS-422 deck control and Ethernet-based remote control support
- Dual 10G RJ45 ports for NMOS control and configuration
- USB-C interface for setup and firmware updates
- Dual IEC C14 AC inputs for redundant power delivery
| Display | |
| Panel Type | LCD |
| Size | 2.2" |
| Touchscreen | No |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 2x QSFP28 100G Input |
| 2x QSFP28 100G Output | |
| 2x BNC (12G-SDI) Monitor Output | |
| 1x HDMI Monitor Output | |
| Audio I/O | 1x 1/4" Headphone Output |
| Other I/O | 2x RJ45 10G NMOS Control Input |
| 2x RJ45 2110 PTP Clock Input/Output | |
| 1x RJ45 1G Management Input | |
| 1x D-Sub 9 RS-422 Control Input | |
| 1x D-Sub 9 RS-422 Control Output | |
| Video Resolution | Fiber Input/Output (10-Bit 4:2:2 YUV) |
| 4096 x 2160: | |
| 23.98/24/25/29.97/30 fps | |
| 3840 x 2160: | |
| 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080p: | |
| 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i: 50/59.94/60 fps | |
| 1920 x 1080PsF: 25/29.97/30 fps | |
| 1280 x 720p: 50/59.94/60 fps | |
| Power | |
| Power Source | AC Input (Built-In) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power I/O | 2x IEC C14 Input |
| Physical | |
| Mounting | 4x Unthreaded Rackmount Hole |
| Color | Black |
| Certifications | IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10 |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm (2 RU) |
