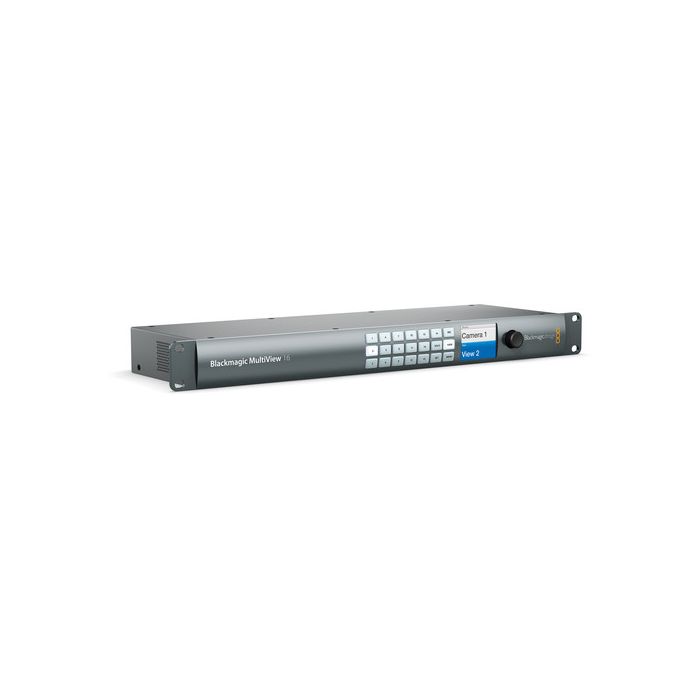

Blackmagic Design MultiView 16

Raspoloživost: Isporuka 7-10 dana
SKU
HDL-MULTIP6G/16

Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs.

Normalna cijena 13.700,00 kn Posebna cijena 12.604,00 kn 10.083,20 kn

Sadržaj pakiranja

  • Blackmagic Design MultiView 16
  • Software CD

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

Housed in a 1RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.

Note: IEC power cable is not included.

  • Native Ultra HD multi-view output
  • 16x 6G-SDI inputs; accepts SD, HD, and Ultra HD resolutions
  • Supports Ultra HD 4K (3840x2160) up to 30p; DCI 4K (4096x2160) at 24p
  • 2x 6G-SDI, 2x HD-SDI, and 1x HDMI multi-view outputs
  • 16x SDI loop outputs
  • 2x2, 3x3, and 4x4 multi-view configurations
  • SOLO button for instant full screen of single source
  • 2-channel audio meters for each view
  • 16x9 SD support
  • Tally support with ATEM switchers
  • 1RU machined aluminum chassis
  • Front panel control using illuminated buttons, spin knob, and 1.5" LCD screen
  • Software control over Ethernet; supports Videohub router protocol
  • Built-in 90 to 240VAC power supply
  • IEC power cable required
SDI Video Input 16 x 10-bit SD/HD/6G-SDI
SDI Video Output 16 x 10-bit SD/HD/6G-SDI loop outputs
Multi-View Outputs 2 x 10-bit 6G-SDI
2 x 10-bit HD-SDI
1 x HDMI, type A (supports EDID of the monitor)
Reference Input Blackburst and TriSync for SD, HD, and 4K
Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
Control 16 buttons
5 buttons and scroll wheel for control of LCD display
1 x RJ45 Ethernet
1 x RS-422 input (for configuration layouts)
Configuration Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
Reclocking On all SDI outputs; auto switching between SD, HD, or 6G-SDI video

Standards

Format Support SD Format Support
625/25 PAL
525/29.97 NTSC

HD Format Support
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K Format Support
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K Format Support
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates SD-SDI: 270 Mb/s
HD-SDI: 1.5 Gb/s
3G-SDI: 3 Gb/s
6G-SDI: 6 Gb/s
SDI Video Sampling 4:2:2 and 4:4:4
SDI Color Precision 4:2:2 and 4:4:4 10-bit
SDI Color Space YUV or RGB
SDI Audio Sampling 48 kHz and 24-bit
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M

Software

Software Control Multi-view control software included free for Windows and Mac OS X
Internal Software Upgrade Via included updater application

General

Display 1.5" (3.81 cm) LCD (for menu settings)
Power Supply IEC power cable required
90 to 240 VAC input
Power Fail Protection Settings preserved and restored instantly at power on
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Rack Space 1 RU
Dimensions (W x H x D) 18.97 x 1.74 x 6.03" (48.18 x 4.42 x 15.32 cm)
Weight 4.62 lb (2.1 kg)
