Blackmagic Design MultiView 4 HD
by Blackmagic Design4 x SD/HD/3G-SDI Inputs
1 x SDI & 1 x HDMI Outputs
Automatic Signal Detection
SDI Re-Clocking on Output
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic Design MultiView 4 HD
- 12V Universal Power Supply
- International Socket Adapters

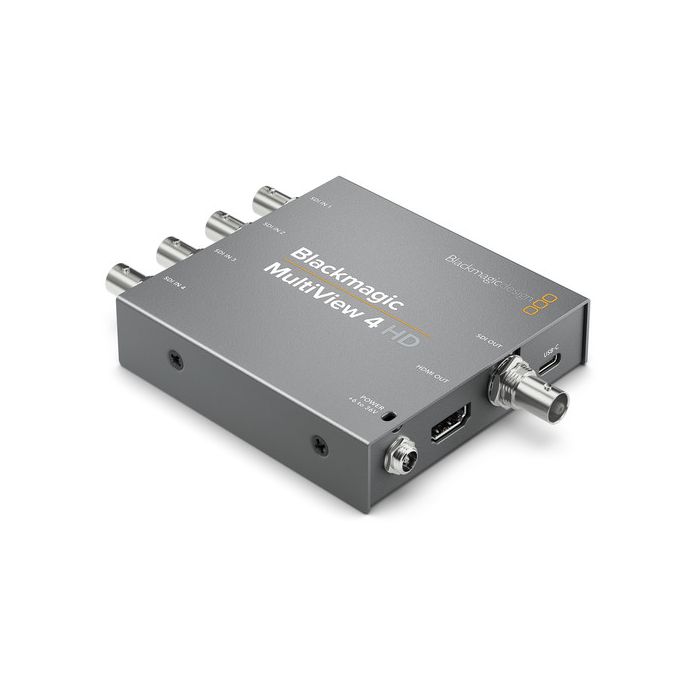

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.
Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.
Features
Four SDI inputs output to one SDI and one HDMI multiview
Automatic signal detection, SDI output re-clocking
Monitor any combination of HD or SD formats, and frame rates
Display custom labels, audio metering, and more on each view
Inputs | SD/HD/3G-SDI: 4 x BNC |
Outputs | SD/HD/3G-SDI: 1 x BNC, 10-bit HDMI: 1 x Type A |
Supported Video Standards | 2K DCI: 1080p: 25/24/23.98 HD: 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC SD: 525i: 59.94 PAL SD: 625i: 50 |
SDI Compliance | SMPTE 425M-B/310M/296M/292M/259M ITU-R BT.656/BT.601 |
SDI Color Precision | 10-bit 4:4:4, 4:2:2 |
SDI Color Space | Inputs: YUV, RGB Output: YUV |
SDI Video Sampling | 4:4:4, 4:2:2 |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Metadata Support | SMPTE 352M |
Compatible Operating Systems | MacOS 10.12 Sierra MacOS 10.13 High Sierra, or later Windows 8.1, or 10 |
Power Consumption | 5.5 W |
Operational Voltage Range | 6 to 36 VDC |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Relative Humidity (non-condensing) | 0 to 90% |
Dimensions | 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm |
Weight | 8.53 oz / .24 kg |
