Blackmagic Design SDI Expander 8x12G

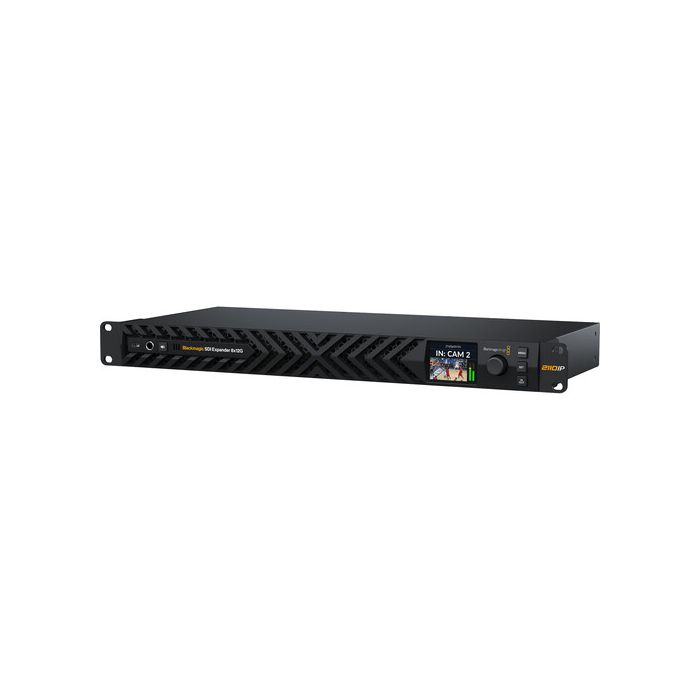

by Blackmagic DesignThe Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Blackmagic Design SDI Expander 8x12G
The Blackmagic Design SDI Expander 8x12G is a 1 RU bidirectional SMPTE 2110 IP converter designed to integrate 12G-SDI infrastructure into high-bandwidth 100GbE broadcast systems. Supporting up to 16 channels of simultaneous 10-bit 4:2:2 video conversion, the unit converts eight independent 12G-SDI inputs to SMPTE 2110 IP while concurrently converting eight SMPTE 2110 IP streams back to 12G-SDI outputs. Dual 100GbE QSFP28 connections provide SMPTE ST 2022-7 redundancy, ensuring uninterrupted signal delivery across IP-based production workflows.
Engineered for hybrid SDI/IP environments, the expander supports SD, HD, and Ultra HD formats up to 4K60 with automatic detection, along with 16 channels of embedded audio per 2110 IP video stream. A front-panel 2.2" LCD with integrated control knob and buttons enables real-time monitoring of video, audio, and system parameters, while a built-in speaker and headphone output allow for direct audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.
- Simultaneous bidirectional conversion between 12G-SDI and SMPTE 2110 IP video
- Eight 12G-SDI inputs and eight 12G-SDI outputs in a single 1 RU chassis
- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundant streaming
- Auto-detection of SD, HD, and Ultra HD formats up to 4K60
- 10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
- 16 channels of embedded audio per IP video stream
- 2.2" front-panel LCD for video, audio, and system monitoring
- Integrated control knob and buttons for configuration and routing
- Built-in speaker and headphone output for audio monitoring
- Dedicated RJ45 port for NMOS control, configuration, and updates
- USB-C interface for firmware updates and local configuration
- Dual IEC C14 AC inputs for redundant power delivery
| Interfaces | |
| Inputs | 8 x BNC (12G-SDI) |
| 1 x QSFP28 (100G Ethernet) | |
| Embedded Audio | IP/SDI: 32-Channel |
| Outputs | 8x BNC (12G-SDI) |
| 1x QSFP28 (100G Ethernet) | |
| Other I/O | 1x RJ45 Input |
| 1x USB-C (Firmware) Input | |
| Standards | |
| Video Standard Compliance | SMPTE 292M/296M/424M/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2022-7/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084/ST-2108-1 |
| Reclocking | No |
| HDR Support | Yes |
| HDCP Support | No |
| EDID Support | No |
| OS Compatibility | macOS 26.0 or Later |
| Windows 11 or Later | |
| Transmission | |
| Video Format | SDI Input (10-Bit 4:2:2 YUV) |
| 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps | |
| 1920 x 1080i: 50/59.94/60 fps | |
| 1920 x 1080PsF: 25/29.97/30 fps | |
| 1280 x 720p: 50/59.94/60 fps | |
| Maximum Data Rate | 100 Gb/s |
| Power | |
| Power I/O | 2x IEC C14 Input |
| Power Consumption | 100 to 240 VAC |
| General | |
| Rack Form Factor | 1 RU |
| Certifications | IEEE 1588-2008 |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 19.0 x 8.9 x 1.7" / 482.6 x 226.1 x 43.2 mm |
