Blackmagic Design Streaming Encoder 4K

by Blackmagic Design

Dostupnost: Isporuka 7-10 dana

SKU

BDLKWEB/D/SED4K

H.264 & H.265 Streaming to SRT or RTMP
12G-SDI Input & Loop Output

773,75 € 619,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Blackmagic Design Streaming Encoder 4K
Welcome Wallet with QR Code for Software Download

Opis

The powerful, self-contained Blackmagic Design Streaming Encoder 4K streams H.264 or H.265 via SRT or RTMP with direct streaming support for a wide range of compatible services and software, including Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, and Wowza Streaming Engine. Users may stream via the built-in RJ45 Ethernet port with support for 10/100/1000BASE-T or connect via USB-C to tether to high-speed 5G and 4G phones.

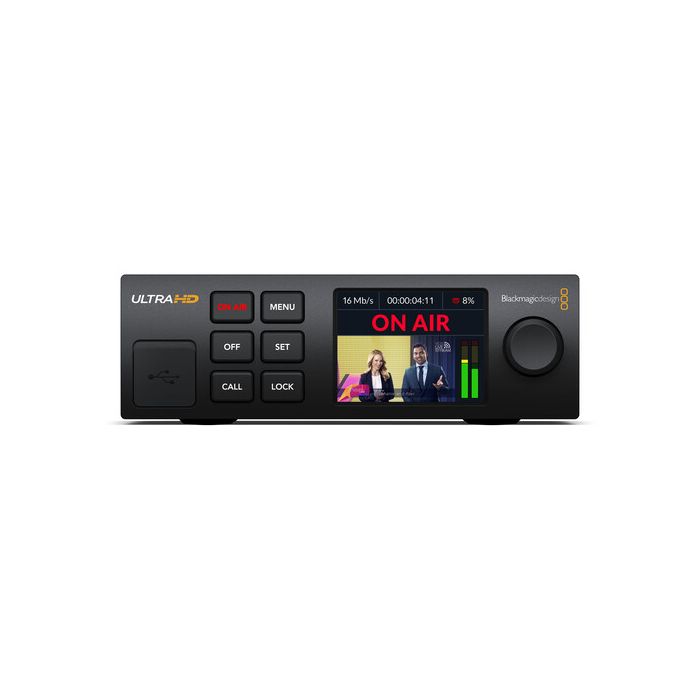

The encoder is equipped with 12G-SDI connectivity, supporting resolutions up to DCI 4K60 via an SDI input and an SDI loop output, as well as SDI and HDMI monitor outputs. Video, audio, status, and menu settings may be monitored via the integrated 2.2" LCD screen. There is also an option to connect the device as a webcam to a computer via its rear-panel USB-C port. The front panel features six buttons and a spin knob for tactile control, and the unit may be powered via its rear 100-240 VAC and 12 VDC 4-pin XLR ports.

Specifikacije

IP Video	H.264/H.265:
	4096 x 2160 Encoding
Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output
	1x HDMI Monitor Output
	Show Less
Embedded Audio	SDI Input: 16-Channel
	SDI Output: 16-Channel
	HDMI Output: 2-Channel
	LAN (RJ45)/USB Output
	Show Less
Power Consumption	(25 W)
Display	LCD
IP Encoding/Decoding
IP Video	H.264/H.265:
	4096 x 2160 Encoding
Transport Protocols	RTMP, SRT
Compatible Services	Facebook Live, Twitch, YouTube Live
Wireless
Wireless	No
Wi-Fi	No
Bluetooth	No
Cellular Support	5G NR / 4G LTE via Unspecified SIM Type
Interfaces
Video I/O	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output
	1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output
	1x HDMI Monitor Output
Other I/O	1x RJ45 Fast Ethernet Input/Output
	1x USB-C Output
	1x USB-C Input/Output
Embedded Audio	SDI Input: 16-Channel
	SDI Output: 16-Channel
	HDMI Output: 2-Channel
	LAN (RJ45)/USB Output
Power
Power I/O	1x IEC C14 Input
	1x XLR 4-Pin Input
Power Consumption	(25 W)
General
Operating Conditions	32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C at 0 to 90% Humidity
Display	LCD
Rackmount Size	1 U
Dimensions	6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm
Weight	1.66 lb / 753 g
