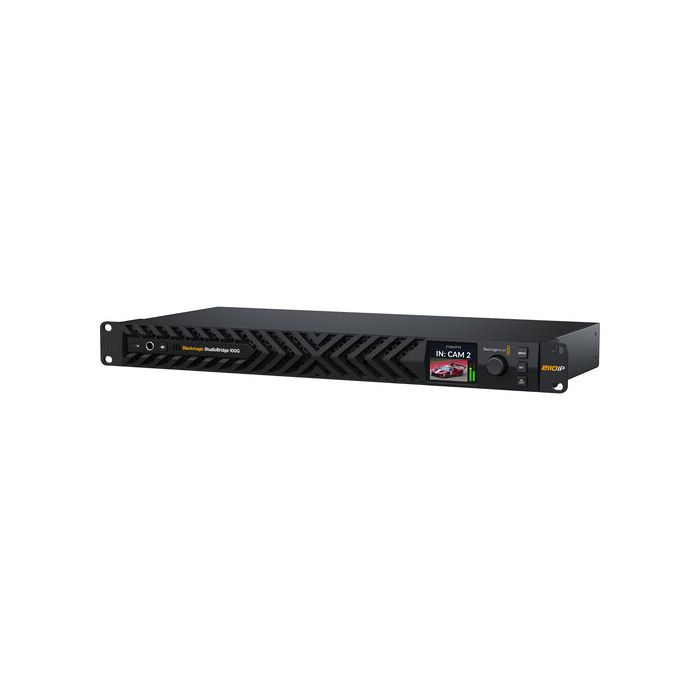

Blackmagic Design StudioBridge 100G

Dostupnost: Isporuka 7-10 dana

SKU

CONVNVIPR/SBD100X2

The Blackmagic Design StudioBridge 100G is a 1 RU IP video bridge designed to integrate one to two high-bandwidth camera streams into redundant 100G broadcast infrastructures.

2.823,75 € 2.259,00 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

Blackmagic Design StudioBridge 100G

Opis

The Blackmagic Design StudioBridge 100G is a 1 RU IP video bridge designed to integrate one to two high-bandwidth camera streams into redundant 100G broadcast infrastructures. Supporting up to two channels of SMPTE 2110 video at resolutions up to 4K60, the unit converts one 100GbE IP video stream or two IP video streams of less than 100Gb/s total bandwidth into dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal delivery. Each input supports automatic format detection across HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.

Engineered for deployment in live production and broadcast environments, the StudioBridge 100G sports two 10G RJ45 ports and two 10G SFP optical fiber interfaces for additional accessory connection. A front-panel 2.2" LCD with integrated control knob and buttons allows real-time monitoring of video, audio, and system status, while built-in speaker and headphone output provide immediate audio confidence monitoring. External control is supported via a dedicated RJ45 for NMOS-based configuration and USB-C for setup and firmware updates, with dual IEC power inputs ensuring power redundancy for reliable performance.

IP Video Bridging

Convert one to two camera feeds under 100 Gb/s total bandwidth into dual 100GbE outputs
Two 100GbE QSFP28 inputs and two 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy
Supports SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards
Auto-detection of HD and Ultra HD formats up to 4K60
10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
16 channels of embedded audio per IP video stream

Convenient Design

2.2" front-panel LCD for video, audio, timecode, and system monitoring
Integrated control knob and buttons for source selection and configuration
Built-in speaker and headphone output for audio monitoring
Two RJ45 and two SFP optical fiber accessory connectors
Dedicated RJ45 port for NMOS control, configuration, and updates
USB-C interface for firmware updates and local configuration
Dual IEC C14 AC inputs for redundant power delivery

Specifikacije

Display
Panel Type	LCD
Size	2.2"
Touchscreen	No
Inputs/Outputs
USB I/O	1 x USB-C Female Input
Video I/O	2x QSFP28 100G Input
	2x QSFP28 100G Output
Audio I/O	1x 1/4" Headphone Output
Other I/O	1 x RJ45 1G Control Input
	2 x RJ45 10G Accessory Port
	2 x SFP Optical Fiber Connector
Power
Power Source	AC Input (Built-In)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Physical
Mounting	4x Unthreaded Rackmount Hole
Color	Black
Certifications	IEEE1588-2008, SMPTE2110-20, SMPTE2110-21, SMPTE2110-30, SMPTE2110-40, SMPTE2022-7
Operating Conditions	41 to 104°F / 5 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
Dimensions	19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm
