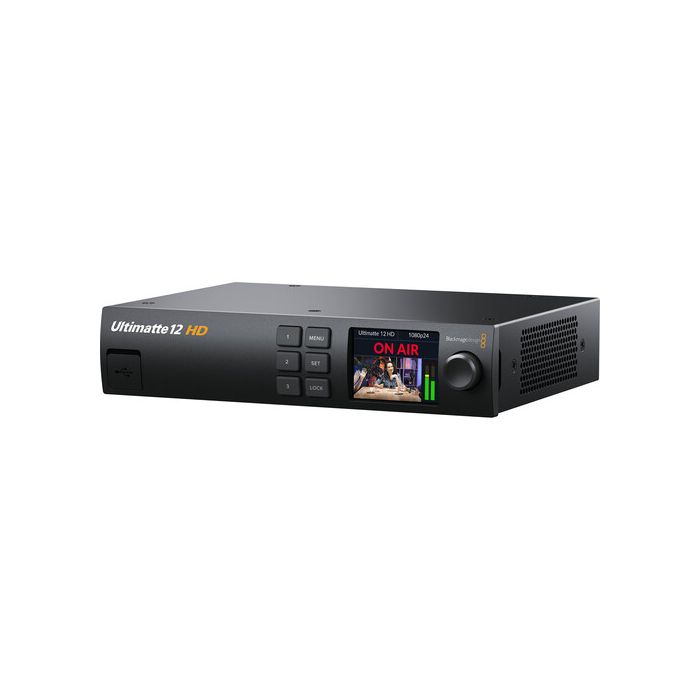

Blackmagic Design Ultimatte 12 HD

by Blackmagic Design
Dostupnost: Isporuka 14-20 dana

Up to 1080p60 via 3G-SDI BNC
1-Touch Keying, Advanced Compositing
SD/HD/3G-SDI Support
Works with Ultimatte Smart Remote 4

1.082,50 € 866,00 €

Sadržaj pakiranja

  • Blackmagic Design Ultimatte 12 HD Keyer/Advanced Compositing Processor

Upgrade your real-time compositing for keying live action video with the Ultimatte 12 HD Keyer/Advanced Compositing Processor from Blackmagic Design. This latest version of the Ultimatte 12 HD adds 3G-SDI connectivity to advanced algorithms, improved spill suppression, color science and separation, and excellent color fidelity to help create truly photorealistic composites.

The Ultimatte 12 HD works in HD with sub-pixel processing for an improved image. Designed for news, sports, and other types of production, this versatile unit offers realistic augmented reality layers and one-touch auto-keying. The HD model supports up to 1080p60 resolutions and supports a variety of media formats. This processor requires the downloadable Ultimatte Software for macOS and Windows, and it can also be controlled via the separately available Ultimatte Smart Remote 4.

Advanced Real-Time Compositing
Uses new algorithms and color science, improved edge handling, color separation, color fidelity, and spill suppression to create photorealistic composites in HD, all in real time.
Designed for news, sports, narrative film and television, and entertainment productions using fixed cameras, static backgrounds, or virtual set systems. The ability to layer augmented reality objects enables talent to pre-visualize virtual sets when using a green screen.
Multicamera Use
New technology enables the Ultimatte 12 to add accurate keying parameters to multiple cameras, accounting for slight variations between the camera positions
Realistic Augmented Reality Layer
A new "realistic" layer compositing mode enables you to add translucent or tinted objects on top of the foreground.
One-Touch Keying
One-touch keying dramatically lessens the time it takes to pull a key, using the auto key to set over 100 parameters once your set is well lit and white balanced.
Advanced Image Processing
Advanced image processing algorithms and an immense color space are used to generate internal mattes, so different parts of the image can be processed separately based on the colors in each area. This processing produces fine detail on hair and smooths color and object transitions.
Highest Color Fidelity
Refined flare, edge, and transition processing enables you to remove the background without affecting the colors you want to retain, faithfully reproducing colors that are impossible on other keyers, such as a bright yellow dress in front of a green screen.
Shadows and Transparencies
Improved flare algorithms can remove green tinting and spill from almost anything, creating true, realistic looking virtual environments, even when using shadows or transparent objects with reflections.
High-Quality Interfaces
High-quality connections include an Ethernet port, a GPI tally trigger, 3G-SDI BNC ports that support up to 1080p60 video, and Program video outputs.
Dedicated Compositing Inputs
Dedicated connectors with loop outputs that are used for compositing include:



Background matte
Garbage matte
Holdout matte
Layer matte


Program out


Compatibility Blackmagic Design Ultimatte Smart Remote 4

Inputs / Outputs

USB I/O 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input
Video I/O 2 x BNC (3G-SDI) Input
2 x BNC (3G-SDI) Output
1 x BNC (3G-SDI) Loop Output


Power Source AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 15 W
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 90% (Non-Condensing)
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 0 to 90% (Non-Condensing)


Mounting 1 x Rack Unit
Color Black
Material of Construction Metal
Dimensions 8.27 x 6.96 x 1.73" / 21.01 x 17.68 x 4.39 cm
Weight 2.56 lb / 1.16 kg

Packaging Info

Package Weight 3.255 lb
Box Dimensions (LxWxH) 11.3 x 11.2 x 3.5"
