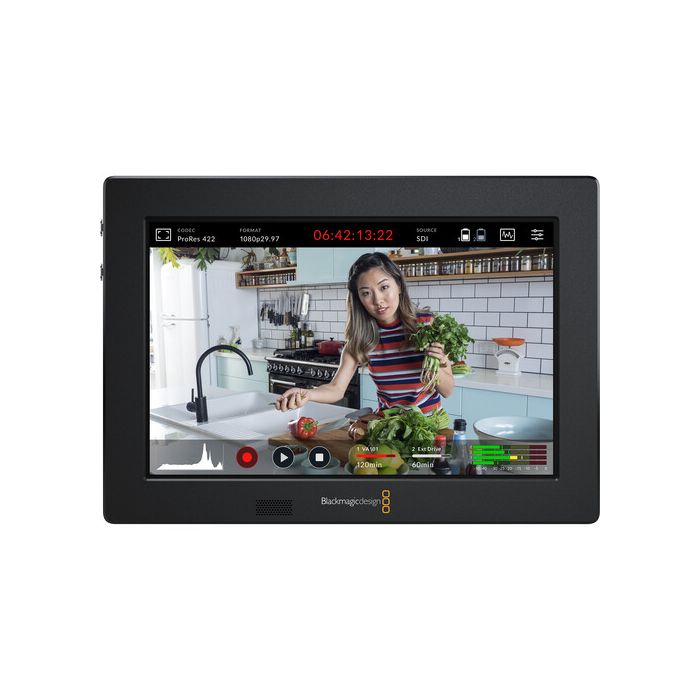

Blackmagic Design Video Assist 7" 3G

Raspoloživost: Dostupno
SKU
HYPERD/AVIDA03/7

1920 x 1080 7" Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
Stores to 2 x SDHC/SDXC Memory Cards

5.600,00 kn 4.480,00 kn

Sadržaj pakiranja

  • Blackmagic Design Video Assist 7" 3G

Blackmagic Video Assist 7” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!

Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Screen Resolution 1920 x 1200
Aspect Ratio 16:9
Viewing Angle Horizontal: 135°
Touchscreen Yes
Maximum Brightness 310 cd/m2
Pixels Per Inch (ppi) 323 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A Input
1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support Yes
Embedded Audio HDMI: 8-Channel
SDI: 16-Channel
Audio 2 x Mini-XLR Input
1 x 3.5 mm Headphone Output
Built-In Speaker 1
Power 1 x Barrel (12 VDC) Input
Other I/O 1 x USB Type-C
1 x LANC (2.5 mm) Input
Card Slot 2 x SD
Wi-Fi None
Format Support
Video Format SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
Recording
Pulldown Conversion None
Camera Trigger None
Pre-Roll Record None
Encoding Formats Up to 1920 x 1080
ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks 16
Recording Media 1 x SDXC (UHS-I)
Metadata Tagging Yes
Timecode Support SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power None
Power
DC Input Power 12 VDC
Battery Type 2 x L-Series
Mounting
Mounting 6 x 1/4"-20 Female
Environmental
Operating Humidity 0 to 90%
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
General
Material of Construction Aluminum
Dimensions (W x H x D) 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm
Weight 1.82 lb / 825 g
