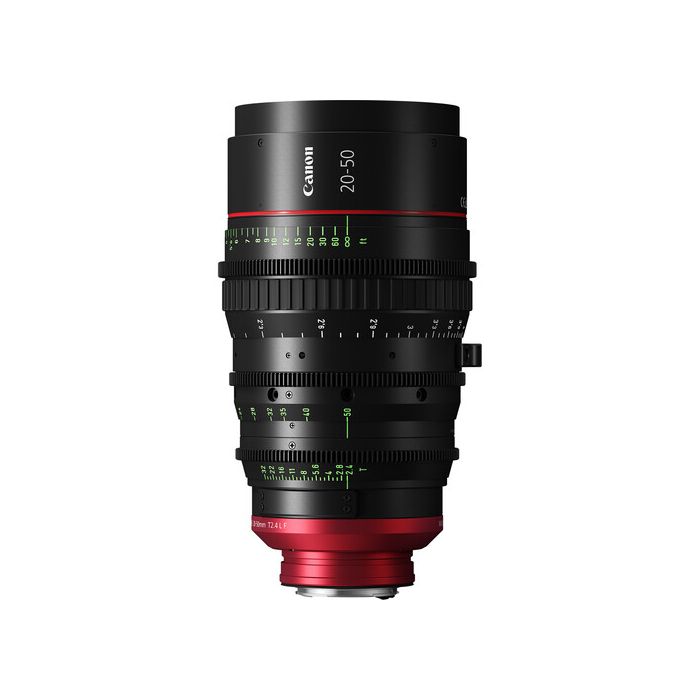

Canon CN-E20-50mm T2.4 L FP (Metric) Zoom Lens PL mount

by Canon
Dostupnost: Isporuka 7-10 dana

The Flex Zoom series is designed for outstanding optical performance rendering beautiful and natural images.

23.750,00 € 19.000,00 €

Sadržaj pakiranja

  • CN-E20-50MM T2.4 L F / FP
  • Lens main unit
  • Lens support shaft (support holder)
  • Lens cap
  • Dust cap

Make the whole world cinematic

Introducing the new standard. Breath-taking image quality that is perfect for 4K productions. Available in EF and PL mount and designed for use on large-format 35mm and Super35mm cameras, this premium high-end full frame cinema lens offers a constant maximum T-stop value of 2.4 across the entire zoom range. Advanced Lens Metadata Support includes Cooke /i Technology™ and Zeiss eXtended Data™ protocols.

Capture your vision with CN-E20-50mm T2.4 L F / FP

The CN-E20-50MM T2.4 L F / FP is a premium high-end full frame lens designed for professional cinema productions.

Cinematic look with 4K optical quality

The lens produces superb colour rendition and detail, with sharp images from the centre to the outer edges, perfect for 4K HDR capture. 11 aperture blades create soft beautiful light rays and stunning depth of field falloff, whilst an internal focusing system delivers minimised focus breathing and excellent parfocal performance. The lenses render the beautiful and warm colour tones synonymous with Canon’s cinema lens family.

Constant T2.4 and broad focal length coverage

With a consistent light transmission of T2.4 throughout the zoom range, the Flex Zoom series offers a broad focal range from the wide angle CN-E20-50mm T2.4 L F / FP, to the mid-focal range of the CN-E45-135mm T2.4 L F / FP. These lenses are the ideal pairing to cover a wide range of shooting situations.

Designed for full frame cinema cameras

Capture increased cinematic quality, wider field-of-view, and greater depth-of-field. This compact and lightweight lens is designed for use on full frame 35mm sensor cameras.

Modular lens mount system

The CN-E20-50MM T2.4 L F / FP is available in either EF or PL mount, to give greater flexibility and versatility for your production requirements. The lens is also interchangeable between EF & PL mount* providing even greater value and flexibility.

Advanced Lens Metadata Support

The Flex Zoom series are compliant with a wide range of communication standards thanks to the versatile lens-to-camera communication function including Cooke /i Technology™, and ZEISS eXtended Data™ (PL mount) and EF mount. This will enable displayed and recorded lens metadata as well as utilise camera functions such as aberration correction, peripheral illumination correction and focus guide function with compatible cameras.

Robust design and useful handling features

The Flex Zoom series share the same design, with consistent front diameter, gear positions and gear rotation angles. Focus, zoom, and iris dials feature industry standard gears and 0.8mm pitch to suit third party follow focus accessories. The lens features luminous (glow in the dark) metric or imperial markings for easy operation in low light. Built for longevity, the premium design and outstanding optics and components, offer quick and precise operation, with durability ideal for professional video productions.

11-Iris blades for cinematic bokeh

Enjoy beautiful out-of-focus backgrounds thanks to 11 iris blades that give a near-circular aperture.

For your high end productions

The Flex Zoom lenses are ideal for a number of high end applications. With full frame coverage and wide field of view, it’s a significant step up to high end applications.

Lens coverage Full frame
Focal length 20-50mm
Constant maximum aperture T2.4
Cooke /i Technology™ & ZEISS eXtended Data™ Lens Metadata Support
HDR support 8K resolution
Cinematic bokeh 11 iris blades
Image Circle Full Frame (Interchangeable to Super 35mm using Canon Relay Kit)
Mount EF mount / PL mount
Zoom Ratio 2.5x
Focal Length 20 - 50mm
Maximum Diameter Ratio (T-Number) T2.4
Number of Iris Blades 11
Angle View Aspect ratio 1.9:1
  Dimensions 40.96 x 21.6 mm
  91.4°x 56.7° at 20mm
  44.5°x 24.4° at 50mm
  Aspect ratio 1.5:1
  Dimensions 36 x 24mm
  84.0°x 61.9° at 20mm
  39.6°x 27.0° at 50mm
  Aspect ratio 1.78:1
  Dimensions 35.7 x 20.1mm
  83.5°x 53.4° at 20mm
  39.3°x 22.7° at 50mm
  Aspect ratio 1.9:1
  Dimensions 38.1 x 20.1mm
  87.2°x 53.4° at 20mm
  41.7°x 22.7° at 50mm
Minimum Shooting Distance 2.5x
  0.6m / 2’
Shooting Range at Closest Approach 1.9:1
  40.96 x 21.6mm
  74.5 x 39.3cm at 20mm
  28.4 x 15.0cm at 50mm
  36 x 24mm
  65.5 x 43.7cm at 20mm
  24.9 x 16.6cm at 50mm
  35.7 x 20.1mm
  64.9 x 36.6cm at 20mm
  24.7 x 13.9cm at 50mm
  38.1 x 20.1mm
  69.3 x 36.6cm at 20mm
  26.4 x 13.9cm at 50mm
Lens Communication Supported
Front Lens Diameter (mm) Φ 114mm
Outer Dimensions (W x D x H) Approx. 131.2 x 133.6 x 241.3mm / Approx. 131.2 x 133.6 x 233.3mm
Weight Approx. 3.3kg
