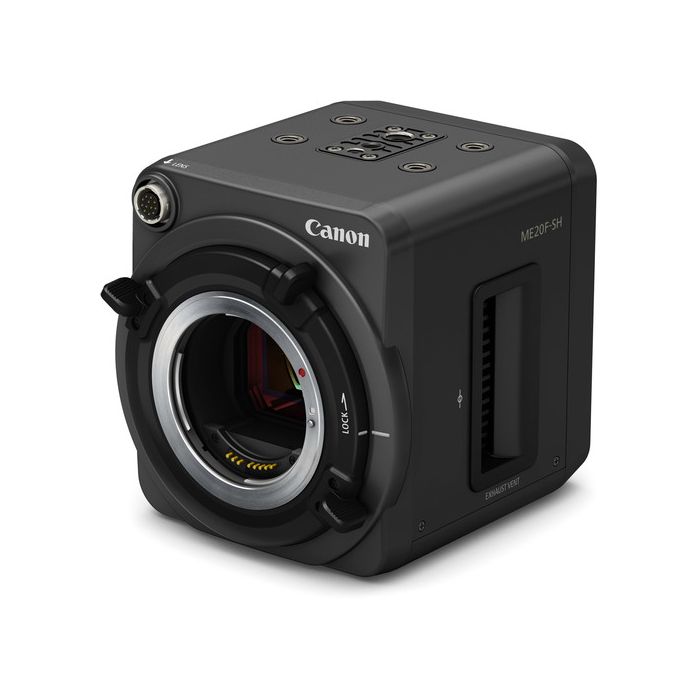

Canon Multi Purpose Camera ME20F-SH
by CanonInnovative Full Frame, Full HD video camera with ultra low light performance and infrared capability.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- Canon Multi Purpose ME20F-SH Camcorder
Innovative Full Frame, Full HD video camera with ultra low light performance and infrared capability.
Shoot from daylight to ‘starlight’ in 1080p with ISO 4 million and infrared
Compact and lightweight this innovative full-frame, Full HD video camera delivers ultra low light performance and infrared capability at unrivalled sensitivity, over ISO 4 million (+75dB), to open up a new world of creative shooting possibilities.
Benefits
- Ultra low-light performance at ISO 4 million
- High quality Full HD 1080p/1080i/720p output
- Flexible control with auto and custom settings
- Compatible with a wide range of EF lenses*
- Remote control of camera settings and built-in ND and IR cut filters possible
- Small and lightweight for ease of integration
Detailed Features
Ultra low light performance in colour
The ME20F-SH incorporates a newly developed, full-frame 35mm CMOS sensor with approx. 2.26MP for maximum light gathering ability. With an ISO of over 4 million (+75dB) the camera can capture ‘never before seen’ colour footage in almost complete darkness (0.0005 lux), plus additional support for infrared (IR) filming.
High quality, Full HD output
This unique camera can produce a Full HD 1080p/1080i/720p output that can be recorded to an external recorder. It offers support for high dynamic range with 12-stop Canon Log Gamma and Wide DR mode, plus reduced motion blur with support for frame rates up to 50p/59.94p for shooting slow-motion.
Flexible, creative control
With extensive options for automatic functions for exposure via Iris and gain control, One-Shot AF and Auto WB the ME20F-SH gives control over your shooting settings. Choose from Custom Picture settings, including Canon Log and Wide DR. The wide ISO 800 to 4 million range lets filmmakers shoot from daylight to ‘starlight‘ conditions.
Remote control over built-in ND and IR filters
Remote operation of the built-in, electronically controlled ND filters (3-stop and 6-stop) and IR cut filter is possible via the Canon Remote Controller RC-V100.
Extensive lens compatibility
Featuring an EF mount with Cinema Lock the ME20F-SH will support a wide selection of compatible lenses across the Canon range, including zooms, primes and selected Canon Servo lenses* (with a 12-pin interface) for greater control and creative shooting opportunities.
Compact and connectable
The small, compact and lightweight ME20F-SH features extensive connection options for a monitor, output to an external recorder and remote control, including HDMI out, Genlock and two 3G/HD-SDI terminals. Remote control is possible via two sockets, including a 2.5mm jack for the Canon Remote Controller RC-V100.* A list of compatible lenses to be confirmed.
| Camera | |
| Sensor | 35mm Full Size CMOS Sensor |
| Filter | RGB Primary Colour Filter (Bayer array) |
| Effective pixels per sensor | Approx. 2.26MP (2000 x 1128) |
| Minimum illumination | 0.0005 lux or less( Gain 75dB, f/1.2, 29.97P, 50 IRE) |
| Horizontal Resolution | Depends on the lens used. |
| Lens Mount | Canon EF mount with Cinema Lock |
| ND filter | Yes, 2 density (1/8, 3 stops or 1/64 , 6 stops) Manually selected electronic control |
| Focus control | Manual Focus using lens or via RC-V100 Remote Control; One Shot AF via assignable button |
| Iris control | Manual; 1/2 stop increments. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation) |
| Aperture range | Depending on selected lens |
| Filter diameter | Depending on selected lens |
| Image stabilization system | Depending on selected lens |
| Digital Tele Converter | Yes : X2/ X4 tele converter |
| Type | DIGIC DV 4 |
| Sampling accuracy | YbCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI |
| Bit depth | 10 bit (8 bit effective) |
| Recording | |
| Video storage media | External Recording Device |
| Recording file format | Depending on External Device |
| Recording frame rate | 3G/HD-SDI Output: 1920x1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P |
| 1280x720: 59.94P/50P/29.97P/25P/23.98P | |
| HDMI Output: 1920x 1080: 59.94P/59.94i/50P/50i/29.97PsF/25PsF | |
| 1280x720: 59.94P/50P | |
| 640x480: 59.94P | |
| Slow/Fast motion | No |
| Interval Record | No |
| Frame Record | No |
| Pre Record (cache record) | No |
| Scan Reverse | No |
| Custom Picture Options | Nine Custom Picture options: Canon Log, Wide DR, EOS Standard, CP1 - CP6 . User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance. Adjustable for Chroma Key performance¹ |
| HD->SD conversion | No |
| System | |
| Automatic Exposure Settings | Shutter Priority, Aperture Priority, Auto Gain Control (AGC)¹ |
| Audio in | 3.5mm stereo mini jack, plug-in power mic supported |
| Headphone output | No |
| Video monitor output | Yes, 3G/HD-SDI (BNC) OSD output compatible, HDMI. |
| HDMI | Yes. Output only, |
| USB | No |
| 3G/HD-SDI output | Yes, X2; Output 1 OSD compatible, Output 2 Clean output only. |
| Time code | No |
| Genlock | Yes, input only, BNC |
| Component out | No |
| AV terminal | No |
| DC input | Yes. 4-Pin XLR, 2-Pin connection. Input voltage 11 - 17V |
| Lens Terminal | Yes, 12-pin connector¹ |
| Remote Control Terminal | Yes, x2: Remote A: 2.5mm mini jack/Remote B: Circular 8-pin . Both utilise Canon Unique Protocol. |
| Memory Card connector | Yes, microSD card (for firmware update only, no recording capability) |
| Colour Bars | Yes, SMPTE, EBU and ARIB depending on system frequency |
| Tally lamp | No |
| Custom key | No |
| User Assigned Functions | Yes, 4 buttons. |
| Assignable items:One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Bar / Set WB /Tele-converter / Infrared / External Rec / Custom Picture / | |
| Camera Mode A/M. These items work with the RC-V100 remote controller. | |
| Custom Dial | No |
| Shooting functions | |
| Exposure metering | Backlight, Standard, Spotlight |
| Exposure compensation | Yes: ±2.0, ±1.75, ±1.50, ±1.25, ±1.0,±0.75, ±0.50, ±0.25 or ±0 |
| Exposure Lock | No |
| Auto Gain Control setting | Yes , OFF (75dB) or value from 36dB to 75 dB (in 3 dB increments) |
| ISO Sensitivity | Maximum in excess of ISO 4,000,000 equivalent at -75dB |
| Dynamic Range | Canon Log/Wide DR mode: 800%/12 stops at +9.0dB (Approx. ISO2300) |
| Gain setting | 0dB to -75dB in 3dB intervals. |
| Control Modes | Manual 1/4 stop increments, Auto (combined function combining Iris, Gain, Shutter and ND filter operation) |
| Shutter speed | 1/3 sec - 1/2000 sec depending on recording mode and system frequency |
| Shutter Angle | No |
| Slow Shutter (SLS) | No |
| Scan Reverse | Yes |
| Clear Scan | No |
| Infrared shooting mode | Yes: IR Cut-out filter, electrically operated. |
| Built-in IR lamp | No |
| Auto | YES |
| Preset | Daylight/Tungsten |
| Shockless WB | Yes, via Custom Function Menu |
| Manual setting | Set A, Set B (Default 5,500K)Kelvin ( 2000K - 15000K) |
| Countup system | No |
| Start value setting | No |
| Recording | Linear PCM 48 kHz 16-bit digital conversion, 2 channels |
| Accessories | |
| Supplied | 2-pin Power Connector |
| Optional | RC-V100 remote Control Unit, Tripod Adapter RB-1, RS-422 8-pin remote cables RR-10 (10m)/ RR-100 (100m) |
| AC-E19 Compact Power Adapter | |
| Operating Voltage | DC: 11 - 17V via 4-pin XLR or 2pin connector |
| Power Consumption | Approx 12W (Body Only), |
| Miscellaneous | |
| Dimensions | 102mm x 116mm x 113mm (W xH x D) 4.0 x 4.6 x 4.4 inches |
| Weight (camera only) | Approx. 1.1 kg (2.4 lbs) |
| Operating Temperature range | Approx. 0 to 40°C, 85% (relative humidity), Approx. -5 to 45°C, 60% (relative humidity) |
| All specifications are subject to change without notice | |
| All specifications are subject to change without notice | |
| ¹ Connector activation may require firmware update | |
| ¹ Firmware upgrades may be required to enable all camera features. Visit the Canon Support website for more information, or contact your local Canon representative. | |
| ¹ Firmware upgrades may be required to enable all camera features. Visit the Canon Support website for more information, or contact your local Canon representative. | |
| ¹ Connector activation may require firmware update | |
| ¹ Firmware upgrades may be required to enable all camera features. Visit the Canon Support website for more information, or contact your local Canon representative. | |
| ¹ Firmware upgrades may be required to enable all camera features. Visit the Canon Support website for more information, or contact your local Canon representative. | |
