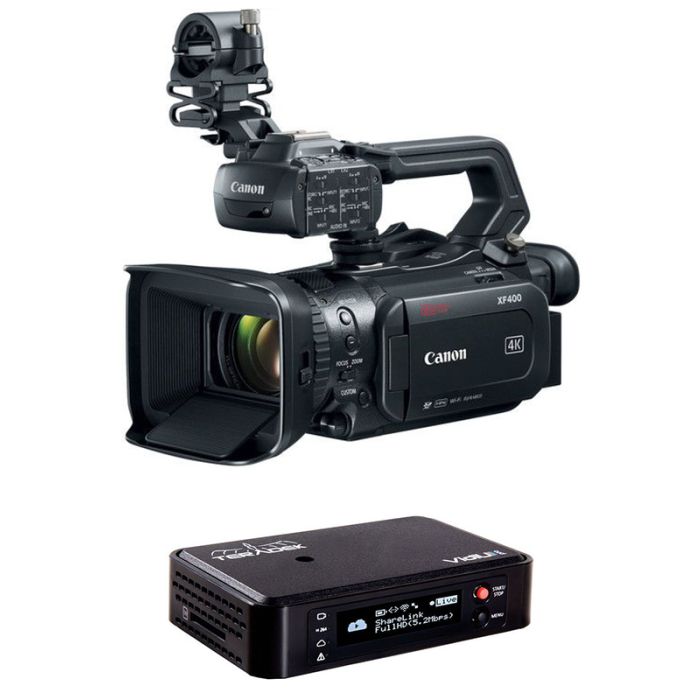

Canon XF400 Streaming bundle with Teradek VidiU Pro
by CanonReady to stream bundle with Canon XF400 Camcorder and Teradek's VidiU Pro.
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1x XF400 Camcorder
- 1x Handle Unit
- 1x Lens hood with lens barrier
- 1x Battery pack BP-828
- 1x Power adapter CA-946
- 1x Mic holder
- 1x Wireless Controller WL-D89
- Teradek VidiU Pro
- AC Power Supply
- Hot Shoe Adapter with Thumbscrew
- Ethernet Cable
- Full-to-Mini HDMI Cable
- Quick Start Guide
The Canon XF400 HD Camcorder is a compact, ergonomic camera featuring UHD 4K capture, a 1" CMOS sensor, Dual-Pixel CMOS AF, and two XLR audio inputs. The XF400's optics include an integrated 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for more natural highlights, and five-axis optical image stabilization. Pro-style HD features include Dual-Pixel Autofocus (DPAF), and dual DIGIC DV 6 image processors with high sensitivity and low noise, supporting Wide DR Gamma.
The camera records full HDMI and UHD 4K up to 60 fps, captured to dual SD card slots, and outputs via an HDMI 2.0 port. On the audio side, the XF400 features four channels of audio with manual/automatic recording levels, and two XLR inputs. Built-in Wi-Fi allows you to control the camera's functions via browser and transfer proxy files. Camera control is also available using the included WL-D89 remote. XF-AVC UHD 4K 60p Long GOP recording is scheduled to be available through a firmware update in 2018.
- Features
-
- 8.29MP, 1" CMOS sensor
- Integrated 15x optical zoom lens
- Advanced Zoom up to 30x
- UHD 4K 60 fps, HD 120 fps onboard recording
- Dual XLR inputs, four channels of audio
- Dual-pixel CMOS autofocus feature
- Two DIGIC DV 6 processors
- Two SD memory card slots
- HDMI 2.0 output only
Teradek's VidiU Pro delivers high definition live streaming video with the quality and reliability expected in traditional HD broadcast. Broadcast your events on the most popular, natively integrated, streaming platforms like Ustream, Livestream, Twitch, and YouTube Live, or as manual RTMP address to services like Wowza Streaming Server. VidiU Pro is compatible with virtually every streaming platform, so you can choose when and where you go live.
VidiU Pro accepts any HDMI camera source and is configurable via Bluetooth using your tablet or smartphone. Download the free VidiU App on your iOS or Android device for complete control. Roam cable-free for up to two hours of internal Li-ion rechargeable battery life. You can also record your stream to an SD card via VidiU Pro's built-in SD port for archive, quick edits, and redistribution. (Recorded video file bit rate and resolution match encoded stream quality.)
Additionally, get the bandwidth needed to stream your HD content from anywhere to everywhere using Teradek's ShareLink cloud services (subscription sold separately). ShareLink allows you to achieve maximum bandwidth and ultimate reliability by bonding multiple Internet connections from different sources. You can use any combination of interfaces: Ethernet, WiFi, USB Modem, or even up to 4 iPhone cellular connections.
Key Features
Deliver broadcast quality HD live streaming video to streaming platforms and manual RTMP addresses
Accepts any HDMI camera source
Configurable via Bluetooth using a tablet or smartphone
Two hour internal Lithium-ion rechargeable battery life
Record your stream to an SD card via VidiU Pro's built-in SD port
Get maximum bandwidth using Teradek's ShareLink cloud services (subscription sold separately)
Image Sensor |
|
|
Sensor |
1.0Inch type CMOS |
|
Filter |
RGB Primary Colour Filter |
|
Total Pixels |
13.4 MP |
|
Effective pixels per sensor |
8.29 MP |
|
Subject illumination range |
Approx. 0.1 lx to 100,000 lx |
|
Minimum illumination(PAL/50.00Hz Mode) |
Approx. 1.4 lx , P Mode(shutter speed 1/25 sec.) (50.00P; with auto slow shutter On), Low Light Mode: Approx. 0.1 lx (shutter speed 1/2 sec.) |
Lens |
|
|
Zoom ratio |
15 x Optical |
|
Focal Length |
Approx. 25.5 to 382.5 mm |
|
Minimum focus distance |
10 mm at wide end, 60 cm across entire zooming range |
|
ND filter |
3 densities: turret switched, motor-driven. Each press of the ND button will switch the display between ND 1/4, ND 1/16, and ND 1/64. |
|
Zoom control |
Via Zoom Rocker Switch, Lens Control ring or Remote Control |
|
Zoom Speed |
Selectable. Variable or constant speed. Fast, Normal or Slow speed. |
|
Focus control |
Manual via Lens Ring, Dual Pixel CMOS AF, Face Only, Face Priority |
|
Iris control |
Manual via Iris Control Dial, Auto |
|
Aperture range |
f/2.8 - f/11 (AV Priority and Manual Modes) |
|
Filter diameter |
58mm |
|
Lens elements/groups |
14 groups of 18 elements (double aspherical lenses and single Hi-UD lenses) |
|
Aperture blades |
9 Blades |
|
Image stabilization system |
Optical system (lens shift) + electronic stabilization Dynamic, Powered IS, Standard |
|
Digital zoom/Teleconverter |
Yes. 300 X Digital Zoom, 2 X Digital Teleconverter. |
Image Processor |
|
|
Type |
Dual DIGIC DV6 |
|
Dynamic Range |
12 stops (800%) in Wide DR mode |
|
Sampling accuracy |
YCC 4:2:0 |
|
Bit depth |
8 bit |
|
Looks settings |
Standard, Wide DR, Monochrome |
Recording |
|
|
Video storage media |
SD/SDHC/SDXC card |
|
Type |
Class U3 recommended for recording at 150MBPS |
|
Recording time (64GB Card, approx.) |
150 Mbps: 55 Minutes. 35Mbps: 240 Mins |
|
Recording file system |
FAT32/exFAT |
|
Internal Recording |
MP4 3840x2160 (150 Mbps) / 1920x1080 (35/17 Mbps) / 1280x720 (8/4 Mbps) |
|
External Recording Output |
SDI: XF405 Only |
|
Recording frame rate (PAL model) |
50.00P/25.00P |
|
Slow/Fast motion |
Yes. |
|
Interval Record |
No |
|
Frame Record |
No |
|
Pre Record (cache record) |
Yes. 3 Seconds |
|
Scan Reverse |
No |
|
Still quality |
3840x2160 / 1920x1080 / 1280x720 |
|
Photo storage media |
SD Card |
Audio |
|
|
Recording |
MPEG-4 AAC-LC (16-bit 2CH) / LPCM (16-bit 4CH) |
|
Control |
Manual or Auto |
|
Reference Tone |
1KHz, -12dB / -18dB / -20dB / Off |
|
Microphone level meter |
Yes |
Panel |
|
|
Type |
LCD Capacitive touch panel |
|
Size |
3.5-inch (8.9 cm) |
|
Dots |
(approx. 1.56 million dots) |
|
Adjustable |
Yes |
|
Waveform Monitor |
No |
|
Focus Assist |
Yes. Focus Guide Function in MF |
|
Peaking |
Yes. Selectable Peaking Colour: Red / Blue / Yellow |
|
Zebra |
Yes. 70%, 100% |
|
Markers |
Yes. Horizontal (grey) / Horizontal (white) / Grid (grey) / Grid (white) |
CVF |
|
|
Size |
0.24-inch |
|
Dots |
approx. 1.56 million dots |
|
Adjustable |
Yes |
|
Viewing Angle |
100% |
|
Correction lens |
.+2.0 - -5 diopter |
Inputs/Outputs |
|
|
Audio in |
XLR 3-pin jacks (x2), balanced on Handle Unit. 3.5mm Stereo jack (unbalanced) on camera body |
|
Headphone output |
Yes. 3.5mm |
|
Video monitor output |
No |
|
HDMI |
Yes |
|
USB |
Yes. Min-B and Hi-Speed USB supported |
|
SD-SDI output |
Yes. BNC Connector |
|
Time code |
No. Timecode out via HDMI is possible |
|
Genlock |
No |
|
LAN |
Yes. Ethernet connector (RJ45) (supports 1000 BASE-T) |
|
AV terminal |
No |
|
DC input |
Yes. 3.4mm Jack |
|
Remote Control Terminal |
Yes. 2.5mm mini jack |
Exposure |
|
|
Exposure metering |
Centre-weighted average metering: In the AUTO, P, Av, Tv, Portrait, Sports, Low Light and IR modes Segment evaluative metering: Snow, Beach, Sunset, Spotlight, Night modes |
|
Exposure Compensation |
Highlight AE, Exposure lock, Auto backlight compensation, Exposure compensation amount shown as ±3 when locked or ±2 in AUTO (±8 increments). |
|
Auto Exposure mode |
P, Tv, Av,), SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks) |
|
Auto Gain Control setting |
Yes |
|
Auto Gain Control limit |
In manual exposure (P, Av, and Tv modes): 0-29 dB (in 1 dB increments) |
|
Gain setting |
M (Manual) shooting, |
White Balance |
|
|
Settings |
Auto, Manual |
|
Preset |
Daylight: 5,600 K, Tungsten: 3,200, Default value for set 1, |
Shutter Speed |
|
|
Control Modes |
Manual, Tv, Auto, P Mode |
|
Shutter speed (PAL) |
1/2 - 1/2000 sec |
|
Slow Shutter (SLS) |
50.00P: Auto slow shutter On: 1/25 to 1/500 sec. Auto slow shutter Off |
|
Clear Scan |
No |
Infrared |
|
|
Infrared shooting mode |
Yes |
|
Built-in IR lamp |
Yes, in Handle Unit |
Misc. |
|
|
Tally lamp |
Yes |
|
Colour Bars |
EBU / SAMPTE (PAL); SMPTE / ARIB (NTSC) |
|
Accessory shoe |
Cold Shoe |
|
Custom Button Assignment |
Yes. 5 assignable buttons. Powered IS / BLC Always On / Face Only AF / WB Priority / Pre Rec / IR Light / Audio Output CH / Focus Guide / [AF/MF] / Rec Review / Enlarged Display / PHOTO / Off |
|
Custom Dial |
Yes. [Av / Tv / M] / Exposure Compensation / AGC Limit / Off |
|
Wireless LAN standards |
IEEE802.11b/g/n/a (2.4 GHz/5 GHz) |
|
Supported Wi-Fi Functions |
Browser Remote. (Camera Mode) FTP file transfer (Media Mode) |
|
Supported Browser for Remote Operation |
Internet Explorer 8 or later, Safari (iOS 9 or 10), Safari (MacOS), Android standard browser Andoid 4.4 - 6.0 |
|
Remote Operation Control Features |
1) Aperture (including ND control) (2) Focus The amount by which the focus is driven toward NEAR and toward FAR can each be controlled in 3 steps. (3) White balance (4) Shutter speed (5) Gain (6) Exposure compensation (7) Shooting mode (8) Zooming and SLOT SELECT control can be exercised. The free memory remaining on the media, time code, remaining battery charge, etc. can be checked. Live View. |
|
Live view image Resolution |
Camera setting mode: 680 x 383 |
|
GPS Information (Optional Accessory) |
Location (latitude, longitude and altitude) as well as the GPS |
Time code |
|
|
Countup system |
Rec Run / Free Run |
|
Start value setting |
00:00:00:00 - 23:59:59:29 (PAL 23:59:59:24) |
|
Drop Frame |
DF / NDF |
|
User BIT Type |
Setting (00 00 00 00 - FF FF FF FF) / Time / Date |
Accessories |
|
|
Supplied |
Lens hood with barrier, Mic holder unit (w/ screw), Handle unit, Wireless Controller (WL-D89), Lithium battery (CR2025), AC adapter (CA-946), Battery Pack BP-828, AC Cable, Lens Cap |
|
Optional Accessories (Includes items not currently on sale) |
Canon Battery Pack BP-820/BP-828 Canon AC Adapter CA-946 (included with XF405/XF400) |
Battery |
|
|
Power Consumption |
8.4W (MP4, 3840 x 2160, 50.00P Panel in use) |
|
Battery Pack |
Canon Battery Pack BP-828 (supplied) BP-820 (Optional) |
|
Continuous Recording Time |
BP-828: 125 mins (MP4, 3840 x 2160, 50.00P Panel in use) |
Miscellaneous |
|
|
Dimensions |
Approx. 150 x 216 x 267 mm (approx. 5.9 x 8.5 x 10.5 in.) |
|
Weight (camera only) |
XF405: 1150g(2.5 lb) XF400: 1145g (2.5lb) |
|
Weight (fully equipped) |
XF405:1670g (3.7lb) XF400: 1665g (3.7lb) |
|
Operating Temperature range |
Approx. 0 to 40 °C, 85 % (relative humidity) |
