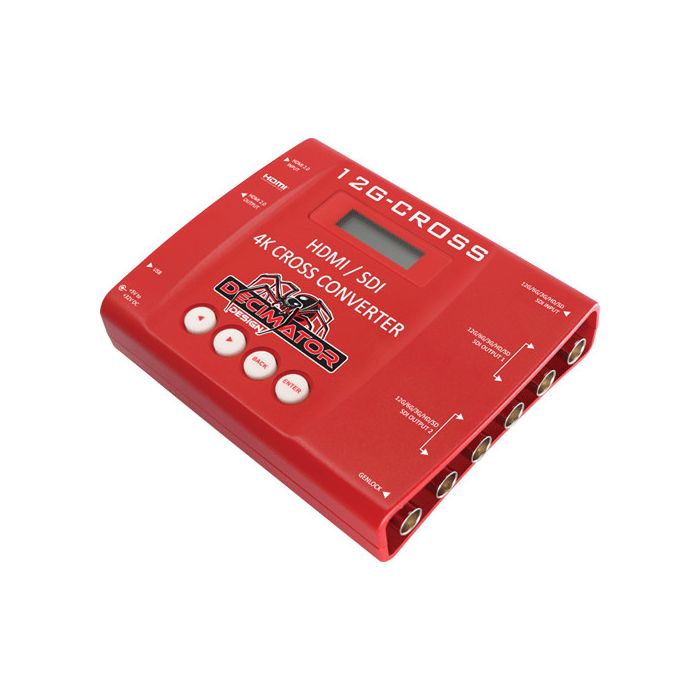

Decimator 12G-CROSS

by Decimator Design

Dostupnost: Isporuka 7-10 dana

SKU

DD-12G-CROSS

Up to 4K HDMI & 12G-SDI Input
Converts HDMI to SDI & SDI to HDMI
Upscales/Downscales, Converts Frame Rate
1 x HDMI Input, 1 x HDMI Output

690,25 € 552,20 €

Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakiranja

DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion
Power Supply
USB Cable

Opis

Combining capabilities usually reserved for a computer-controlled converter, the DECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter with Scaling and Frame Rate Conversion is an independent device that features both HDMI and a 12G/3G/HD/SD-SDI input, and can cross-convert either signal to the other. It features a built-in scaler and frame rate converter, allowing you to convert the input signal to your required output standard in 3249 possible conversion combinations.

The 12G-CROSS features one HDMI 2.0 output and two pairs of 12G/3G/HD/SD-SDI outputs, controllable via 57 selectable conversion modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a USB cable, a power supply, and features a threaded locking power socket to prevent accidental power loss during use.

57 Conversion Formats

(3840 or 4096) x 2160p: 50/59.94/60 via HDMI or 12G-SDI
(3840 or 4096) x 2160p: 30/29.97/25/24/23.98 via HDMI or 6G-SDI
(1920 or 2048) x 1080p: 50/59.94/60 via HDMI or 3G-SDI (Level A or B)
1920 x 1080i: 60/59.94/50 via HDMI or HD-SDI
(1920 or 2048) x 1080p: 30/29.97/25/24/23.98 via HDMI or HD-SDI
(1920 or 2048) x 1080PsF: 30/29.97/25/24/23.98 via HD-SDI
1280 x 720p: 60/59.94/50/30/29.97/25 via HDMI or HD-SDI
1280 x 720p: 24/23.98 via HD-SDI
720 x 480p59.94 or 720 x 576p50 via HDMI
720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard.

Four SD/HD/3G/12G-SDI outputs allow the converter to be used as a 1 to 4 distribution amplifier. SDI output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.

The 12G-CROSS incorporates an LCD and button-controlled system. This gives you access to features that usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are not needed.

The audio pairs in the SDI and HDMI outputs can be rearranged as required.

The unit incorporates a USB port for control and firmware updates.

Decimator Design have introduced an exciting new product feature for the 12G Cross in UCP 3.0.4.

As well as the existing wide ranging video conversion support for over 20,000 SMPTE and VESA video formats, the 12G Cross now offers a professional 12G/6G/3G/HD/SD Test Pattern Generator with 57 selectable output formats and 58 test patterns including Luma and Chroma Zone-Plates.

The 12G Cross can now be used as a format/standards converter as well as a standalone 4K Test Pattern Generator.

Specifikacije

Input

Video Input Connectors	1 x HDMI (HDMI 2.0) Female 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
Input Video Format	HDMI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps
Embedded Audio Input	HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input)

Output

Video Output Connectors	1 x HDMI (HDMI 2.0) Female 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female (Loop Output)
Output Video Format	HDMI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps 576p: 50 fps 480p: 59.94 fps PAL: 50 fps NTSC: 59.94 fps SDI DCI 4K: 23.98/24/25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps
Embedded Audio Output	HDMI: 2-Channel (per Output) SDI: 2-Channel (per Output)
