Decimator MC-DMON-QUAD
by Decimator Design
Dostupnost:
Isporuka 7-10 dana
SKU
DD-MC-QUAD

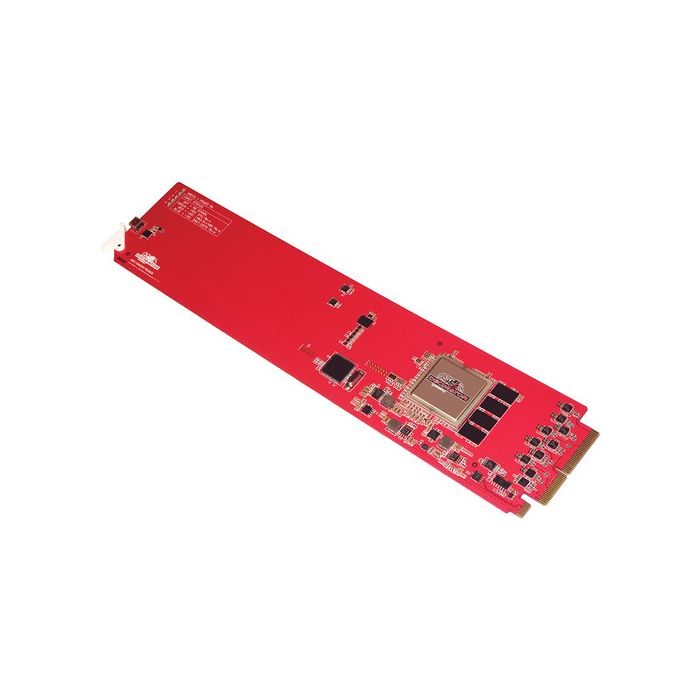

MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios.
408,25 €
326,60 €
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
The MC-DMON-QUAD from DECIMATOR is a 4-channel, 3G-SDI multiviewer for use in openGear frames. It supports a variety of resolutions and formats up to 1080p60 over 2.97 GB/s SDI, and can arbitrarily mix formats and aspect ratios. For SDI connectivity and tally, the card is compatible with the separately available DR1-10B1G rear.
- Four 3G-SDI inputs with automatic format detection
- Each input can have a unique format - data rate, resolution, and frame rate
- Supports unique aspect ratios per quadrant
- Functions as 1 to 4 multiviewer or 4 to 1 multiplexer
- Custom Layouts with various standard layouts
- 16-Character UMD overlay per window with custom positioning and size
- 8-Channel Audio Metering overlay per window with custom positioning and size
- Audio ID overlay
- Supports dynamic UMD and tallies via RS422/485 using the widely implemented TSL protocol (requires separately available DR1-10B1G connectivity module)
- Tallies can be applied to either tally boxes (default) or border element
- Tally boxes allows for up to four Tallies per window
- Selectable output format in both Full-Screen MultiViewer mode
- Low latency buffering enables connection of unsynchronized sources
- Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
- In pass-through mode, the selected input is passed to both SDI outputs
- Mini-USB port for firmware updates
- Supports openGear DashBoard for control
Connectivity | |
---|---|
Inputs | 4 x 3G-SDI 1 x mini-USB Type-B for control and updates 1 x 3-pin connector for UMD and Tallies via RS-422/485 |
Outputs | 1 x 3G-SDI |
Supported Standards | |
---|---|
SDI | 3G-SDI (SMPTE 424M) Data rate: 2.97; 2.967 Gb/s Resolutions: 1080p: 60; 59.94; 50 Hz HD-SDI (SMPTE 292M/274M/296M) Datarate: 1.485; 1.435 Gb/s Resolutions: 1080i: 60; 59.94; 50 Hz 1080p/psf: 30; 29.97; 25; 24; 23.98 Hz 720p: 60; 59.94; 50; 30; 29.97; 25; 24; 23.98 Hz SD-SDI (SMPTE 259M) Datarate: 270 Mb/s Resolutions: 625i50 (PAL); 525i59.94 (NTSC) |
General | |
---|---|
Status Indication | 1 x Power / Update 4 x Signal lock and rate |
