Decimator MD-HX

by Decimator Design
Dostupnost: Isporuka 7-10 dana
SKU
DD-HX

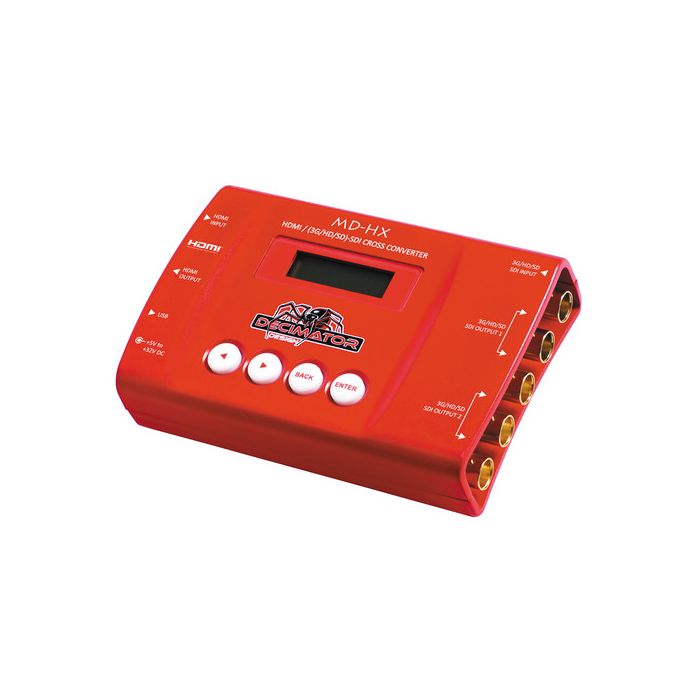

ECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC.

422,50 € 338,00 €

Sadržaj pakiranja

  • DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion
  • Universal Power Supply
  • HDMI Cable
  • USB Cable

Combining capabilities usually reserved for a computer controlled converter the DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.

The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.

Inputs HDMI: 1 x Type A
SD/HD.3G-SDI: 1 x BNC
Outputs HDMI: 1 x Type A
SD/HD.3G-SDI: 4 x BNC (2 x Active Loop Through or addition outputs, 2 x output)
SDI Formats Supported 3G: SMPTE 424M 2.97 and 2.967 Gb/s
1080p: 60/59.94/50Hz

HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s
1080i: 60/59.94/50 Hz
1080p/psf: 30/29.97/25/24/23.98 Hz
720p: 60/59.94/50/30/29.97/25/24/23.98 Hz

SD: SMPTE 259M 270 Mb/s
525i: 59.94
625i: 50
Control Buttons
  • SDI output source from HDMI IN, SDI IN, Scaler
  • SDI output 1 is loop
  • HDMI output type and source from HDMI IN, SDI IN, Scaler
  • Scaler source, reference, format and Aspect Controls
  • Audio pair routing for HDMI and SDI output
  • LCD backlight off time
  • Back to Status time
Power 5 to 32 VDC
Pin Positive
Dimensions 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm
