Decimator MD-LX

Raspoloživost: Dostupno
SKU
DD-LX

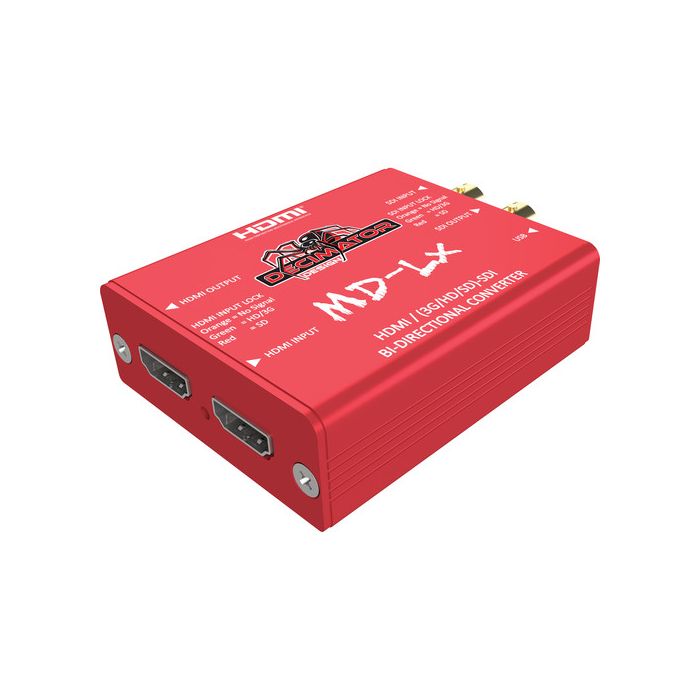

DECIMATOR MD-LX is a pocket-sized bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other.

1.000,00 kn 800,00 kn

Sadržaj pakiranja

  • DECIMATOR MD-LX HDMI/SDI Bi-Directional Converter
  • Power Supply
  • USB Cable

The DECIMATOR MD-LX is a pocket-sized bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.

Conversion Modes

  • Auto Select: Active input to all outputs / or SDI to HDMI & HDMI to SDI if both inputs are active
  • HDMI input to SDI output & SDI input to HDMI output
  • SDI input to HDMI and SDI outputs
  • HDMI input to HDMI and SDI outputs

Other Features

  • Supports 3G Level A and B and allows for conversion between both
  • USB port for power, control, and firmware upgrades
  • HDMI and SDI input locks
Input 1 x HDMI Type A
1 x 3G/HD/SD-SDI
1 x Micro USB port for power, control, and firmware updates
Output 1 x HDMI Type A
1 x 3G/HD/SD-SDI
HDMI Format Support 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz
1920 x 1080i at 50/59.94/60 Hz
1280 x 720p at 25/29.97/30/50/59.94/60 Hz
625i at 50 Hz
525i at 59.94 Hz
SDI Format Support 3G-A or 3G-B:
SMPTE 424M at 2.97 and 2.967 Gbps
1080p at 50/59.94/60 Hz

HD:
SMPTE 292M/274M/296M at 1.485 and 1.435 Gbps
1080i at 50/59.94/60 Hz
1080p/psf at 23.98/24/25/29.97/30 Hz
720p at 23.98/24/25/29.97/30/50/59.94/60 Hz

SD:
SMPTE 259M at 270 Mbps
625i at 50 Hz
525i at 59.94 Hz
Power USB: 4.4 to 5.25 VDC
Uses under 2.5 W
Dimensions 2.4 x 2.9 x 0.9" (6 x 7.4 x 2.3 cm)
