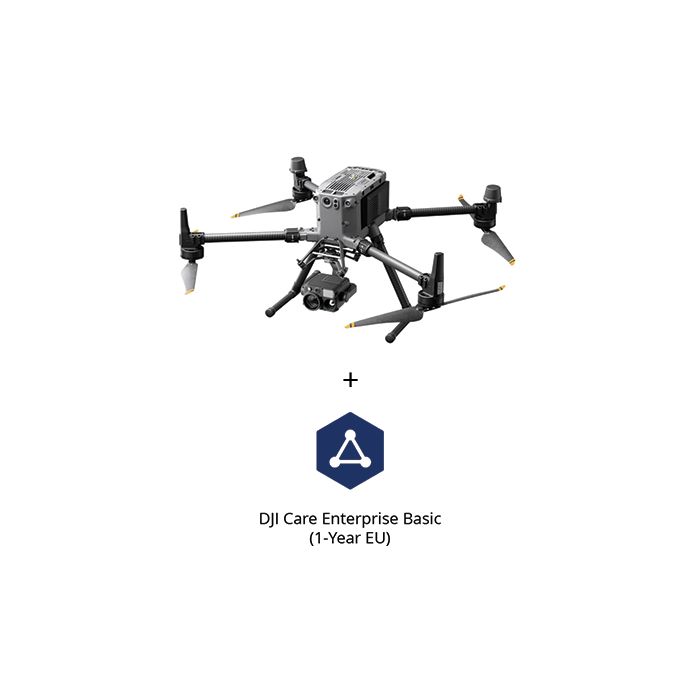

DJI Matrice 350 RTK Single H30T Payload Kit (Universal Edition) (EU) SP 1Y

by DJI
Dostupnost: Isporuka 14-20 dana
SKU
CB.202404230973

DJI Matrice 350 RTK Single H30T Payload Kit with DJI Care Enterprise Basic (1-Year EU).

22.410,00 € 17.928,00 €

Sadržaj pakiranja

  • DJI Matrice 350 Aircraft
  • H30T Thermal Camera
  • DJI RC Plus
  • DJI WB37 Intelligent Battery
  • DJI Matrice 350 Carrying Case
  • DJI Matrice 350 Landing Gear x2
  • DJI Matrice 350 RTK 2110s Propellers (2-Pair)
  • Screws and Tools
  • Cleaning Tools
  • Spare Gimbal Damper ×4
  • Rubber Port Cover (Set)
  • DJI Care Enterprise Basic (1-Year EU)

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Effortlessly Powerful Flight Performance

Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.

Stay Stable With New Transmission System

O3 Enterprise Transmission

Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, and a max transmission distance of 20 km. Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.

New Control Experience

DJI RC Plus

Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.

Built Ready for Harsh Environments

IP54 rated, DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.

Smooth and Efficient Control

There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.

DJI Pilot 2

The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.

New Dual-Battery System

The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, [3] reducing the cost of a single flight.

Next-Gen Intelligent Battery Station

The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

Multiple Charging Modes

In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.

Intelligent Management

When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.

Effortless Transitions

The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.

Enhanced Flight Safety

Arm Lock Indicator

Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night.

Night-Vision FPV Camera

Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night.

6-Directional Sensing & Positioning

With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. The effective detection range is up to 30 m, further improving flight safety.

CSM Radar

With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. The effective detection range is up to 30 m, further improving flight safety.

Multi-Layered Redundancy Design

Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to maximumly ensure flight safety, allowing you to cope with harsh operating environments more confidently.

Powerful Payloads

The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, and can carry three payloads simultaneously. The aircraft also has an E-Port open interface and a max payload capacity of 2.7 kg, meeting the needs of different operation scenarios like public safety, inspection, and mapping.

Intelligent Operation

High-Precision Mapping

Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.

Air-to-Ground Coordination

With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.

Automated Precision Inspection

Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, [15] the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

DJI Care Enterprise Basic (1-Year EU)

Comprehensive Protection for Your Fleet

DJI Care Enterprise was specially created to provide comprehensive protection for your DJI Enterprise products. Offering coverage options with unlimited replacements or free repair services for accidental damage such as crashing, water damage, or signal interference. This efficient and total accident protection service provides greater peace of mind for your entire DJI fleet.

Water Damage Coverage

Fly fearlessly with DJI Care Enterprise, replace your aircraft even if its water damaged. Replacement units are also provided for: Crash & Collision Damage, Signal Interference, and other accidents caused by User Error.

Aircraft
Dimensions (unfolded, without propellers) 810×670×430 mm (L×W×H)
Dimensions (folded, with propellers) 430×420×430 mm (L×W×H)
Diagonal Wheelbase 895 mm
Weight (with single downward gimbal) Without batteries:
  Approx. 3.77 kg
  With two TB65 batteries:
  Approx. 6.47 kg
Single Gimbal Damper’s Max Payload 960 g
Max Takeoff Weight 9.2 kg
Operating Frequency 2.4000-2.4835 GHz
  5.150-5.250 GHz (CE: 5.170-5.250 GHz)
  5.725-5.850 GHz
  In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP) 2.4000-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
  5.150-5.250 GHz (CE: 5.170-5.250 GHz):
  < 23 dBm (CE)
  5.725-5.850 GHz:
  < 33 dBm (FCC/SRRC)
  < 14 dBm (CE)
Hovering Accuracy (with moderate or no wind) Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)
  Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)
  ±0.1 m (with RTK positioning)
RTK Positioning Accuracy (RTK FIX) 1 cm + 1 ppm (horizontal)
  1.5 cm + 1 ppm (vertical)
Max Angular Velocity Pitch: 300°/s
  Yaw: 100°/s
Max Pitch Angle 30°
  When in N mode and with the forward vision system enabled: 25°.
Max Ascent Speed 6 m/s
Max Descent Speed (vertical) 5 m/s
Max Tilted Descent Speed 7 m/s
Max Horizontal Speed 23 m/s
Max Flight Altitude 5000 m
  When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.
  7000 m
  When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.
Max Wind Speed Resistance 12 m/s
Max Flight Time 55 minutes
  Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Supported DJI Gimbals Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1
Third-Party Payload Supports only certified payloads developed based on DJI Payload SDK.
Supported Gimbal Configurations Single downward gimbal
  Single upward gimbal
  Dual downward gimbals
  Single downward gimbal + single upward gimbal
  Dual downward gimbals + single upward gimbal
Ingress Protection Rating IP55
  The IP rating is not permanently effective and may decrease due to product wear and tear.
Global Navigation Satellite System GPS + GLONASS + BeiDou + Galileo
Operating Temperature -20° to 50° C (-4° to 122° F)
Remote Controller
Screen 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
Weight Approx. 1.25 kg (without WB37 battery)
  Approx. 1.42 kg (with WB37 battery)
Global Navigation Satellite System GPS + Galileo + BeiDou
Built-in Battery Type: Li-ion (6500 mAh@7.2 V)
  Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
  Charging Time: 2 hours
  Chemical System: LiNiCoAlO2
External Battery (WB37 Intelligent Battery) Capacity: 4920 mAh
  Voltage: 7.6 V
  Type: Li-ion
  Energy: 37.39 Wh
  Chemical System: LiCoO2
Ingress Protection Rating IP54
Operating Time Built-in Battery: approx. 3.3 hours
  Built-in Battery + External Battery: approx. 6 hours
Operating Temperature -20° to 50° C (-4° to 122° F)
Operating Frequency 2.4000-2.4835 GHz
  5.725-5.850 GHz
Transmitter Power (EIRP) 2.4000-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
  5.725-5.850 GHz:
  < 33 dBm (FCC)
  < 14 dBm (CE)
  < 23 dBm (SRRC)
Wi-Fi Protocol Wi-Fi 6
Wi-Fi Operating Frequency 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz
Bluetooth Protocol Bluetooth 5.1
Bluetooth Operating Frequency 2.4000-2.4835 GHz
Video Transmission
Video Transmission System DJI O3 Enterprise Transmission
Antenna 4 video transmission antennas, 2T4R
Max Transmission Distance (unobstructed, free of interference) 20 km (FCC)
  8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference) Low Interference and Obstructed by Buildings: approx. 0-0.5 km
  Low Interference and Obstructed by Trees: approx. 0.5-3 km
  Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
  Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
  Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km
  Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.
Vision System
Obstacle Sensing Range Forward/Backward/Left/Right: 0.7-40 m
  Upward/Downward: 0.6-30 m
FOV Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
  Left/Right/Upward: 75° (horizontal), 60° (vertical)
Operating Environment Surfaces with discernible patterns and adequate lighting (lux > 15)
Infrared Sensing System
Obstacle Sensing Range 0.1-8 m
FOV 30° (±15°)
Operating Environment Large, diffuse, and reflective obstacles (reflectivity > 10%)
LED Auxiliary Light
Effective Illumination Distance 5 m
Illumination Type 60 Hz, solid glow
FPV Camera
Resolution 1080p
FOV 142°
Frame Rate 30fps
Intelligent Flight Battery
Model TB65
Capacity 5880 mAh
Voltage 44.76 V
Type Li-ion
Energy 263.2 Wh
Weight Approx. 1.35 kg
Operating Temperature -20° to 50° C (-4° to 122° F)
Ideal Storage Temperature 22° to 30° C (71.6° to 86° F)
Charging Temperature -20° to 40° C (-4° to 104° F)
  When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
Charging Time With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
  With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.
Intelligent Battery Station
Dimensions 580×358×254 mm (L×W×H)
Net Weight Approx. 8.98 kg
Compatible Stored Items Eight TB65 Intelligent Flight Batteries
  Four WB37 Intelligent Batteries
Input Voltage 100-120 VAC, 50-60 Hz
  220-240 VAC, 50-60 Hz
Max Input Power 1070 W
Output Power 100-120 V: 750 W
  220-240 V: 992 W
Operating Temperature -20° to 40° C (-4° to 104° F)
Footnotes The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Others
Guaranteed software updates until 2025/12/31
DJI Care Enterprise Basic (1-Year EU)
Sharing Service N/A
Number of Replacements 2
Replacement Fee At a Low Price
Extended Service Plan DJI Care Enterprise Basic Renew
