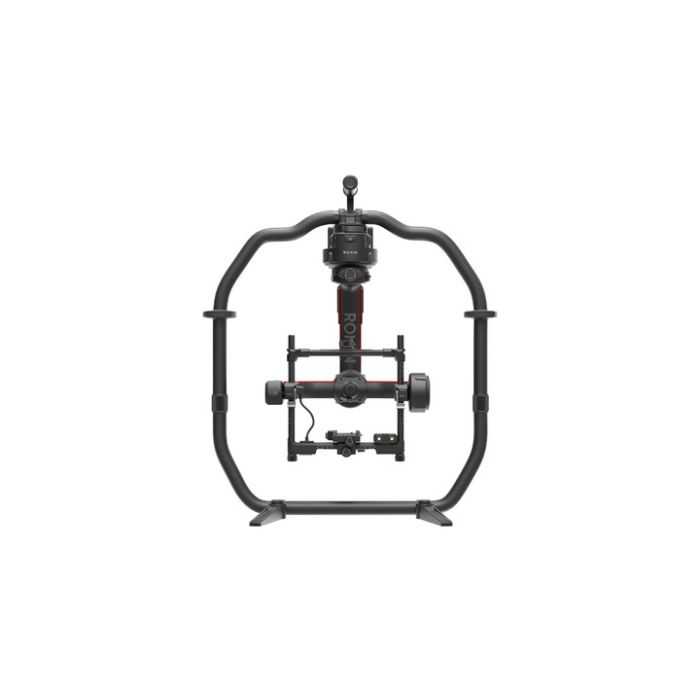

DJI Ronin 2 Professional Combo

by DJI
Dostupnost: Dostupno
SKU
DJI-Ronin-2

Most versatile professional 3-axis stabilization system, Monocoque carbon fiber frame design, High torque motors supporting cameras up to 30 lbs, Fine tune balancing for precision control, Self-heating hot-swappable batteries

7.375,00 € 5.900,00 €

Sadržaj pakiranja

  • DJI Ronin 2 3-Axis Handheld/Aerial Stabilizer
  • Gimbal
  • Grip
  • Remote Controller
  • 2 x TB50 Intelligent Batteries
  • Dual TB50 Battery Mount
  • Battery Charger
  • Quad Charging Hub
  • Battery Charger Power Cable
  • Ronin 2 Power Hub
  • Protective Case
  • Hex Tool
  • Camera Top Cross Bar
  • Camera Base Plate
  • Accessory Mount
  • 2 x 15mm Rod
  • 15mm Focus Rod Mount
  • Ronin 2 Universal Mount
  • Top Mounting Block
  • MotionBlock
  • ARRI ALEXA Mini Power Cable
  • ARRI ALEXA Mini Start/Stop Cable
  • RED Power Cable
  • RED RCP Control Cable
  • Ronin 2 Power Cable
  • 2-Pin Power Cable
  • DC Power Cable
  • Triple D-Tap Breakout Box
  • SDI-In Cable
  • SDI-Out Cable
  • USB Type-C Data Cable
  • UART to D-BUS Cable
  • Limited 6-Month Warranty for Gimbal Motors, Battery & Battery Charger
  • Limited 1-Year Warranty for Gimbal Mechanics, Remote & Thumb Controller













GENERAL

Built-In Functions

Operation Modes
-Underslung Mode
-Upright Mode
-Briefcase Mode
-Handheld, Car Mount, Aerial & Tripod Mode

Axis Modes

-3-axis

-Pan-Lock

-Roll-360 (enabled through firmware update)
Built-in, independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Touch Panel
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working Current Static current: 300 mA (@22.8 V)
Dynamic current: 500 mA (@22.8 V)
Locked motor current: Max 15 A (@22.8 V)
Run Time 8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)
Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Weight Including handle bar: 14 lb (6.4 kg)
Excluding handle bar: 11 lb (5.0 kg)
Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

PERIPHERAL

Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 245 mm
Maximum height measured from top of the camera base plate: 165 mm
Maximum width: 180 mm
Accessory Power Connections 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)
GCU Input Power Intelligent Battery: 4280 mAh-22.8 V
Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C
PC Assistant Software Requirements Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements iOS 9 or above; Android 4.4 or above

WORKING PERFORMANCE

Load Weight (Reference Value) 30 lbs (13.6 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±220°
Controlled Rotation Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±30°
