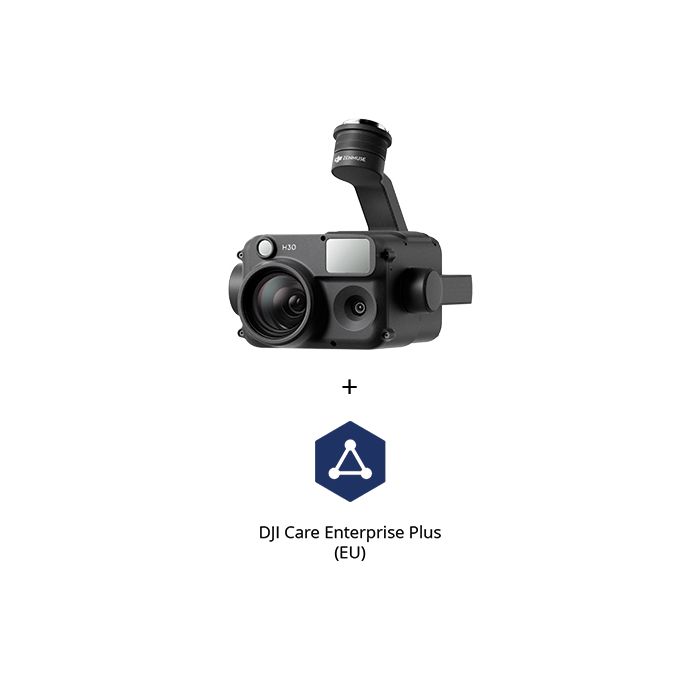

DJI Zenmuse H30 (Universal Edition) (EU) SP Plus

by DJI
Dostupnost: Isporuka 14-20 dana

DJI Zenmuse H30 (Universal Edition) with DJI Care Enterprise Plus (EU).

5.055,00 € 4.044,00 €

Sadržaj pakiranja

  • Zenmuse H30 × 1
  • Lens Cap × 1
  • microSD Card (64GB) × 1
  • Storage Case × 1
  • Lens Cleaning Cloth × 1
  • DJI Care Enterprise Plus (EU)

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Versatile Performance, Day and Night

Further and Clearer ‌Vision

Up to 34× Optical Zoom‌ and 400× Digital Zoom

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.

More Stable Imagery from the Zoom Camera

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

Max 3000m Laser Range Finder

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

Enhanced Night Vision

Supports Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

Supports Black and White Night Vision and NIR Illumination

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.

More Powerful Infrared Performance

280×1024 Infrared Resolution

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.

High-Res Mode for Precise Observation

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras Simultaneous Zoom

The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

Smarter Multi-Scenario Operations

Smart Capture for Improved Imaging

In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.

Electronic Dehazing

In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.

Superior Environmental Adaptability

IP54 Ingress Protection

With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

-20° to 50° C (-4° to 122° F) Operating Temperature

The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.

More Reliable Information Sync and Retention

Supports Pre-Recording

All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.

Media and Transmission Encryption with One-click Log Clearance

The Security Code function allows for the encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. Additionally, it supports one-click log clearance to prevent information leaks.

Cloud Information Sync for Collaborative Ground and Air Operations

Operators can check live views from the Zenmuse H30 Series through the cloud platform on DJI FlightHub 2 to stay up to date with on-site dynamics. This enables rapid remote command and facilitates coordinated air-to-ground operations.

Application Scenarios

With DJI Enterprise flight platforms, the Zenmuse H30 Series is suited for applications in a range of industries, such as public safety, electricity, oil and gas, water conservation, and forestry.

DJI Care Enterprise Plus (EU)

Comprehensive Protection for Your Fleet

DJI Care Enterprise was specially created to provide comprehensive protection for your DJI Enterprise products. Offering coverage options with unlimited replacements or free repair services for accidental damage such as crashing, water damage, or signal interference. This efficient and total accident protection service provides greater peace of mind for your entire DJI fleet.

Unlimited Free Replacements

Unlimited free replacements for drones are provided with DJI Care Enterprise.

* For each replacement, a fee equivalent to the damage assessment cost for the original product is deducted from the coverage amount.

Water Damage Coverage

Fly fearlessly with DJI Care Enterprise, replace your aircraft even if its water damaged. Replacement units are also provided for: Crash & Collision Damage, Signal Interference, and other accidents caused by User Error.

Product Name Zenmuse H30 Series
Dimensions 170×145×165 mm (L×W×H)
Weight 920±5 g
Power H30: 26 W
  H30T: 28 W
Ingress Protection Rating IP54
  Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
Supported Aircraft Matrice 300 RTK (requires DJI RC Plus)
  Matrice 350 RTK
Operating Temperature -20° to 50° C (-4° to 122° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Stabilization System 3-axis (tilt, roll, pan)
Angular Vibration Range Hover: ±0.002°
  Flight: ±0.004°
Mounting Detachable DJI SKYPORT
Mechanical Range Tilt: -132.5° to +73°
  Roll: ±60°
  Pan: ±328°
  (Structural limit, not controllable range)
Controllable Range Tilt: -120° to +60°
  Pan: ±320°
Operation Mode Follow/Free/Re-center
Zoom Camera
Sensor 1/1.8-inch CMOS, Effective Pixels: 40 MP
Lens Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
  Aperture: f/1.6-f/5.2
  DFOV: 66.7°-2.9°
Focus Mode MF, AFC, AFS
Exposure Mode Manual, Auto
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Spot Metering, Average Metering
AE Lock Supported
Electronic Shutter Speed 1/8000-2 s
ISO Range Single Shot: 100-25600
  Night Scene: 100-819200
Video Resolution Single Shot: 3840×2160@30fps, 1920×1080@30fps
  Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Video Format MP4
Video Subtitles Supported
Video Codec and Bit Rate Strategy H.264, H.265
Max Photo Size 7328×5496, 3664×2748
Photo Format JPG
Wide-Angle Camera
Sensor 1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
  Aperture: f/1.7
  DFOV: 82.1°
Focus Mode MF, AFC, AFS
Exposure Mode Manual, Auto
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Spot Metering, Average Metering
AE Lock Supported
Electronic Shutter Speed 1/8000-2 s
ISO Range Single Shot: 100-25600
  Night Scene: 100-409600
Video Resolution Single Shot: 3840×2160@30fps, 1920×1080@30fps
  Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Video Format MP4
Video Subtitles Supported
Video Codec and Bit Rate Strategy H.264, H.265
Max Photo Size 8064×6048, 4032×3024
Photo Format JPG
Infrared Thermal Camera (H30T)
Thermal Imager Uncooled VOx Microbolometer
Lens Focal Length: 24 mm (equivalent focal length: 52 mm)
  Aperture: f/0.95
  DFOV: 45.2°
Digital Zoom Equivalent 32×
Video Resolution 1280×1024@30fps
Video Format MP4
Video Subtitles Supported
Video Codec and Bit Rate Strategy H264, H265
Photo Resolution 1280×1024
Photo Format R-JPEG
Pixel Pitch 12 μm
Spectral Band 8-14 μm
Noise Equivalent Temperature Difference (NETD) ≤ 50 mk@f/1.0
Temperature Measurement Method Spot Measurement, Area Measurement, Center Point Temperature Measurement
Temperature Measurement Range High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
  Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
Temperature Alert Supported
Sun Burn Protection Supported
FFC Auto, Manual
Palette White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
Wavelength 905 nm
Measurement Range 3-3000 m
  Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*
  The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
  * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
Measurement Accuracy ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
  ‌> 500 m: ±1.0 m
Laser Spot Size @100 m: approx. 50×450 mm
  @1000 m: approx. 450×4500 mm
Safety Regulation Level Class 1
Accessible Emission Limit (AEL) 260 nJ
Reference Aperture 18 mm
Max Laser Pulse Emission Power Within 5 Nanoseconds 52 W
NIR Auxiliary Light
Wavelength 850 nm
FOV 4.6±0.6° (Round)
Safety Regulation Level Class 1
Illumination Range @100 m: Approx. 8m diameter circle
Special Features
Hybrid Optical Zoom 34×
Max Zoom 400×
Link Zoom Supported
Click to Aim Supported
High-Res Grid Photo Supported
Night Scene Supported
Timestamp Supported
Smart Capture Supported
Video Pre-Recording Supported
UHR Infrared Image Supported
Data Storage
Supported microSD Cards U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Supported File System exFAT
Recommended microSD Cards SanDisk Extreme Pro V30 A1 32GB microSDHC
  Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
  Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
  Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Post-Processing Software
Mapping Software DJI Terra, DJI FlightHub 2
Infrared Analysis Software DJI Thermal Analysis Tool 3
DJI Care Enterprise Plus (EU)
Sharing Service Yes
Number of Replacements Unlimited
Replacement Fee Free
Extended Service Plan DJI Care Enterprise Plus Renew
