DPA SCO60F00-H d:screet Omni Mic, Heavy Duty, Hi-Sens, Beige, MicroDot
by DPAOmnidirectional Polar Pattern, 20 to 20 kHz Frequency Range, Heavy Duty Stainless Steel Housing, High Sensitivity Capsule
MicroDot Connector Included
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- 1 x DPA SCO60F00-H d:screet Omni Mic, Heavy Duty, Hi-Sens, Beige, MicroDot

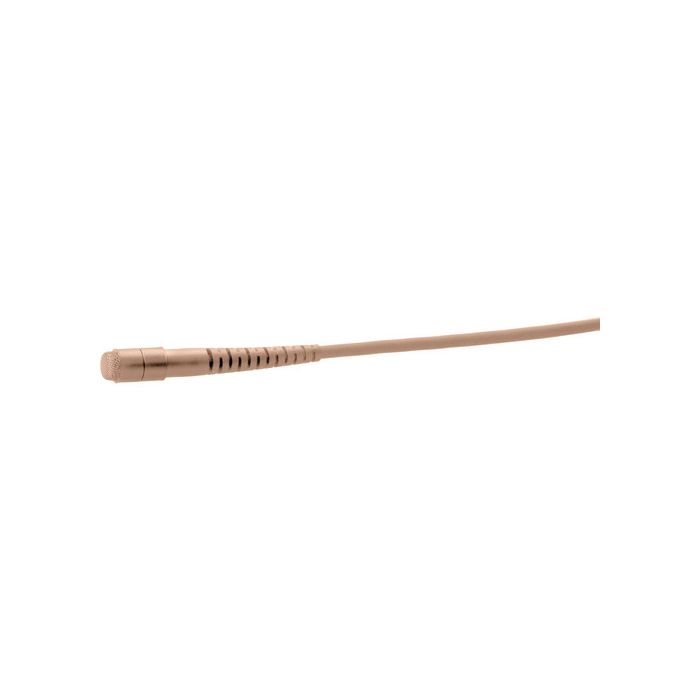

The beige d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector from DPA Microphones is a miniature microphone for capturing audio. It is used in various environments in applications where you require the maximum amount of security such as in theater, television, and more. This microphone features the 4060 high sensitivity capsule. It is used where visual size is of less importance. It features an omnidirectional polar pattern and has a frequency range of 20Hz to 20kHz.
This d:screet omnidirectional microphone is built with a heavy-duty stainless steel housing, a heavy-duty cable relief, and a thick 2.2mm cable. With a large selection of optional accessories available it can be used for wireless or hardwired applications. A carry case, soft boost grid, and a high boost grid are included.
- Heavy Duty Miniature Microphone
- Durable and built with a stainless steel housing and features a heavy-duty cable relief and a thick 2.2mm cable
- A Small Footprint
- A great choice for any application requiring a big sound and a small footprint
Directional Characteristic | Omnidirectional |
Principle of Operation | Pressure |
Cartridge Type | Pre-polarized condenser element with vertical diaphragm |
Frequency Range | +/- 2 db: Soft boost grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High boost grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
Sensitivity | 20 m V/Pa, -34 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) |
Equivalent Noise Level | Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A)), A-weighted Typ. 35 dB (max. 38 dB) ITU-R BS.468-4 |
Signal to Noise Ratio | 71 dB (A) A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL |
THD | < 1 % THD up to 123 dB SPL peak, < 1 % THD up to 120 dB SPL RMS sine |
Dynamic Range | Typ. 100 dB |
Maximum SPL | 134 dB peak before clipping |
Output Impedance | 30 to 40 Ω |
Cable Drive Capability | Up to 984' (300 m) |
Power Supply | For Wireless Systems: Min. 5 V - max. 50 V through DPA adapter With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance |
Connector | MicroDot |
Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
Temperature Range | -40 to 113 ° F (-40 to 45 ° C) |
Relative Humidity | up to 90% |
Cable | Length: 6" (1.8 m) Diameter: 0.09" (2.2 mm) |
Dimensions (L x Diam) | Microphone: 0.5 x 0.2" (12.7 x 5.1 mm) |
Weight | 0.26 oz (7.5 g) including cable and MicroDot connector |
Packaging Info | |
---|---|
Package Weight | 1.0 lb |
Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
