DZOFilm Arles 25/35/50/75/100mm FF/VV Prime Cine Lens (PL mount,meter)

by DZOFilm
Dostupnost: Isporuka 7-10 dana
SKU
DZO-SAP5A25MPL

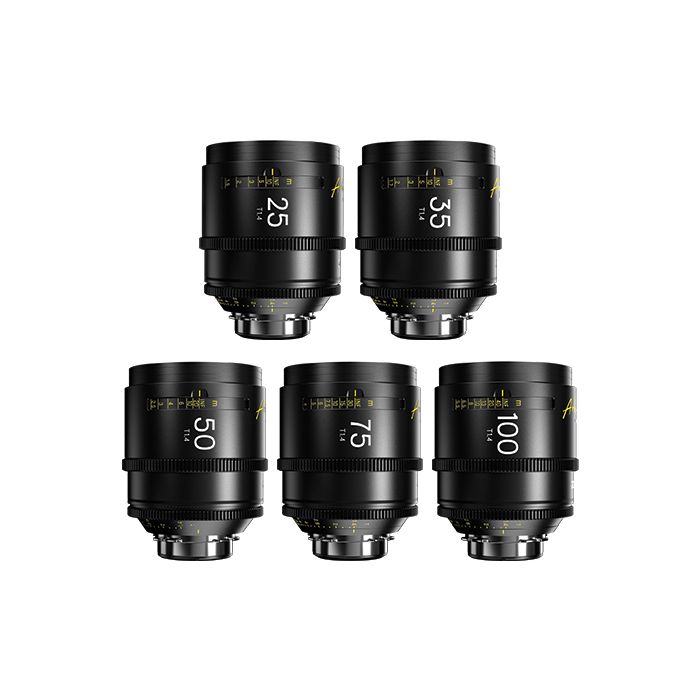

This DZOFilm Arles FF/VV Prime Cine 5-Lens Set includes five commonly used focal lengths for most cases. Included in this ARRI PL full-frame compatible set are 25, 35, 50, 75, and 100mm lenses.

11.248,75 € 8.999,00 €

Sadržaj pakiranja

  • DZOFilm Arles 25mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod

This DZOFilm Arles FF/VV Prime Cine 5-Lens Set includes five commonly used focal lengths for most cases. Included in this ARRI PL full-frame compatible set are 25, 35, 50, 75, and 100mm lenses. All the lenses share similar gearing, iris blades, front diameters, and aperture ranges for easy switching. See below for more information on the individual lenses included in this kit.

DZOFilm Arles 25mm FF/VV Prime Cine Lens (PL mount, meter)

Equip your full-frame ARRI PL-mount camera with the Arles 25mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 77° for intuitive manual adjustments.

The lens features an 87.44° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outer diameter, 16-blade aperture
  • Optical construction of 14 elements in 12 groups
  • 270° focus rotation, 77° iris rotation
  • 13.78" minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

DZOFilm Arles 35mm FF/VV Prime Cine Lens (PL mount, meter)

Equip your full-frame ARRI PL-mount camera with the Arles 35mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 14 elements in 12 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 80° for intuitive manual adjustments.

The lens features a 67.15° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outside diameter, 16-blade aperture
  • Optical construction of 14 elements in 12 groups
  • 270° focus rotation, 80° iris rotation
  • 13.78" minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

DZOFilm Arles 50mm FF/VV Prime Cine Lens (PL mount, meter)

Equip your full-frame ARRI PL-mount camera with the Arles 50mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 80° for intuitive manual adjustments.

The lens features a 50.23° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outside diameter, 16-blade aperture
  • Optical construction of 13 elements in 9 groups
  • 270° focus rotation, 80° iris rotation
  • 19.7" minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

DZOFilm Arles 75mm FF/VV Prime Cine Lens (PL mount, meter)

Equip your full-frame ARRI PL-mount camera with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 82° for intuitive manual adjustments.

The lens features a 34.1° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outside diameter, 16-blade aperture
  • Optical construction of 13 elements in 9 groups
  • 270° focus rotation, 82° iris rotation
  • 2.5' minimum focus distance
  • 46.5mm image circle
  • M86 filter thread

DZOFilm Arles 100mm FF/VV Prime Cine Lens (PL mount, meter)

Equip your full-frame ARRI PL-mount camera with the Arles 100mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 8 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 90° for intuitive manual adjustments.

The lens features a 25.96° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outer diameter, 16-blade aperture
  • Optical construction of 13 elements in 8 groups
  • 270° focus rotation, 90° iris rotation
  • 3' minimum focus distance
  • 46.5mm image circle
  • M86 filter thread
DZOFilm Arles 25mm FF/VV Prime Cine Lens (PL mount, meter)
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
  Horizontal: 80.36°
  Vertical: 47.28°
  Diagonal: 87.44°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 77° (Manual Only)
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.3 lb / 1490 g
DZOFilm Arles 35mm FF/VV Prime Cine Lens (PL mount, meter)
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
  Horizontal: 61.1°
  Vertical: 34.23°
  Diagonal: 67.15°
Focus Scales Imperial
Optical Design 14 Elements in 12 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 13.78" / 0.35 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 80° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.6 lb / 1650 g
Packaging Info
Package Weight 5.73 lb
Box Dimensions (LxWxH) 12.9 x 7 x 6.9"
DZOFilm Arles 50mm FF/VV Prime Cine Lens (PL mount, meter)
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
  Horizontal: 45.17°
  Vertical: 24.61°
  Diagonal: 50.23°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 19.7" / 0.5 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 80° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1688 g
Packaging Info
Package Weight 5.875 lb
Box Dimensions (LxWxH) 12.9 x 6.9 x 6.8"
DZOFilm Arles 75mm FF/VV Prime Cine Lens (PL mount, meter)
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View
Full Frame Horizontal: 30.45°
  Vertical: 16.35°
  Diagonal: 34.1°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 82° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1662 g
Packaging Info
Package Weight 5.795 lb
Box Dimensions (LxWxH) 12.9 x 6.7 x 6.6"
DZOFilm Arles 100mm FF/VV Prime Cine Lens (PL mount, meter)
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View Full Frame
  Horizontal: 23.12°
  Vertical: 12.34°
  Diagonal: 25.96°
Focus Scales Imperial
Optical Design 13 Elements in 8 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 3.0' / 0.9 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 90° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 4 lb / 1830 g
Packaging Info
Package Weight 6.165 lb
Box Dimensions (LxWxH) 12.9 x 7 x 6.6"
