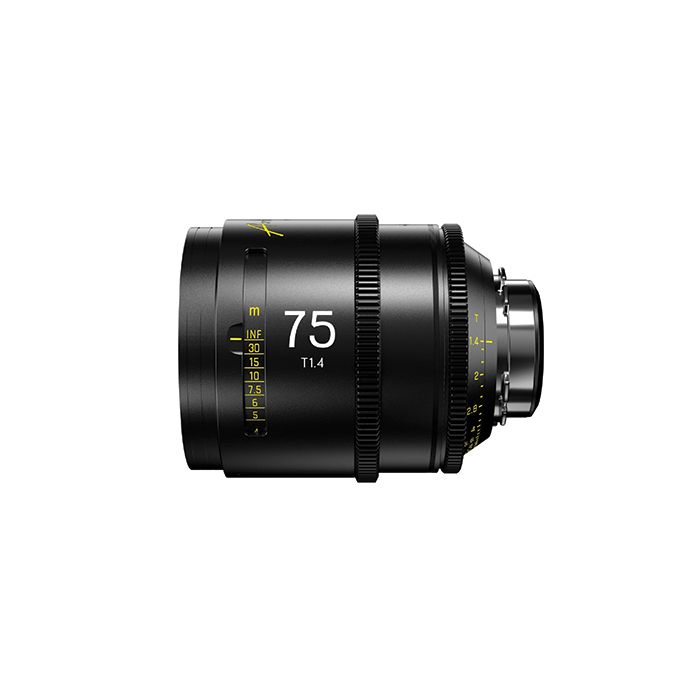

DZOFilm Arles 75mm FF/VV Prime Cine Lens (PL mount, meter)

by DZOFilm
Dostupnost: Isporuka 7-10 dana
SKU
DZO-SAP75MPL

Equip your full-frame ARRI PL-mount camera with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features.

2.498,75 € 1.999,00 €

Sadržaj pakiranja

  • DZOFilm Arles 75mm FF/VV Prime Cine Lens (PL mount, meter)
  • Front Cap
  • PL Rear Cap
  • Shim Set
  • Support Base
  • Support Rod

Equip your full-frame ARRI PL-mount camera with the Arles 75mm T1.4 FF/VV Prime Cine Lens from DZOFilm to capture cine-style images thanks to its improved features. This prime lens has an aperture range of T1.4 to T22 to achieve a wide depth of field. A 16-blade iris and optical construction of 13 elements in 9 groups provide a soft, natural bokeh to your high-quality imagery. The focus ring rotates 270°, and the iris ring 82° for intuitive manual adjustments.

The lens features a 34.1° diagonal field of view to ensure your subject remains in the frame. A 95mm outside diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outside diameters across the range of lenses, switching between focal lengths is a breeze.

Features at a Glance

  • T1.4 to T22 aperture range
  • 95mm outside diameter, 16-blade aperture
  • Optical construction of 13 elements in 9 groups
  • 270° focus rotation, 82° iris rotation
  • 2.5' minimum focus distance
  • 46.5mm image circle
  • M86 filter thread
Maximum Aperture T1.4
Minimum Aperture T22
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Image Circle 46.5 mm
Angle of View
Full Frame Horizontal: 30.45°
  Vertical: 16.35°
  Diagonal: 34.1°
Focus Scales Imperial
Optical Design 13 Elements in 9 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 2.46' / 0.75 m
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 270° (Manual Only)
  Iris 82° (Manual Only)
Coatings Multi-Coating
Environmental Protection No
Diameter 3.7" / 95 mm
Length 4.8" / 121 mm
Weight 3.7 lb / 1662 g
Packaging Info
Package Weight 5.795 lb
Box Dimensions (LxWxH) 12.9 x 6.7 x 6.6"
