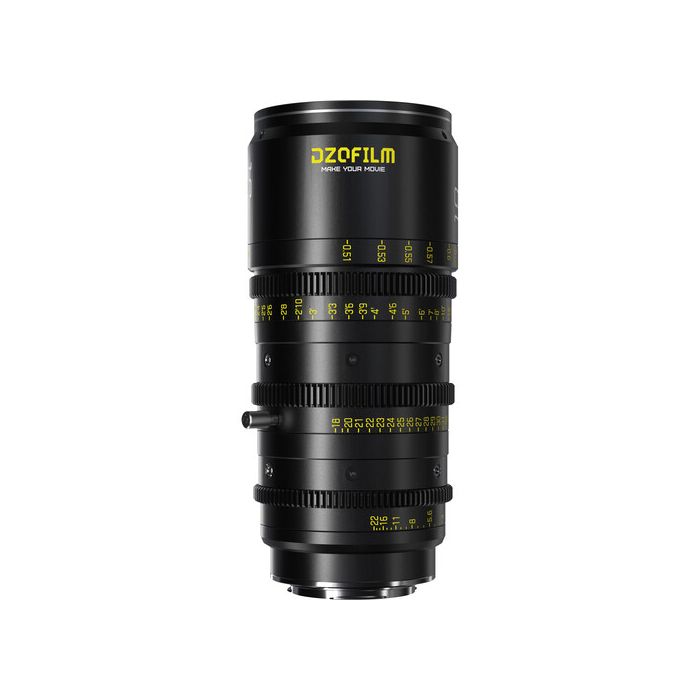

DZOFilm Catta FF Zoom 18-35MM T2.9-E Mount (Black)

by DZOFilm
Dostupnost: Isporuka 14-20 dana
SKU
DZO-FF1835E-BLK
  • Maintains Focus Throughout Zoom Range
  • Natural Color Rendering
  • Consistent T2.9 to T22 Aperture
3.757,50 € 3.006,00 €

Sadržaj pakiranja

  • DZOFilm Catta FF 18-35mm T2.9 Cine Zoom Lens (Sony E, Black)
  • Front Cap
  • Rear Cap
  • Shim Set
  • Support Base
  • Support Rod
  • Sticker Set

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta FF 18-35mm T2.9 Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out, and the Catta full-frame line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.1" close focus range.

True to its cine design, it has a focus rotation of 270°, a 100° zoom rotation range, and a 77° iris rotation range. The lens features a Sony E-mount, and it can be easily interchanged with optional RF, L, X, or Z mounts. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.

Key Features

  • Maintains focus throughout 18 to 35mm zoom range
  • Minimal breathing
  • 16-blade iris with a soft bokeh
  • T2.9 to T22 aperture; 1.9x magnification ratio
  • 270° focus rotation; 100° zoom rotation; 77° iris rotation
  • 20.1" minimum focus distance
  • 80mm front diameter; 75mm filter size
  • 0.8 MOD gears
  • Interchangeable mount with optional RF, L, X, and Z mounts available separately

DZOFilm CATTA ACE 18-35mm T2.9 Specs

Focal Length

18 to 35mm

Lens Mount

Sony E

Lens Format Coverage

Full Frame

Image Circle

43.5 mm

Maximum Aperture

T2.9

Minimum Aperture

T22

Minimum Focus Distance

From Unspecified Point in Lens: 29.13" / 0.74 m

Optical Design

20 Elements in 15 Groups

Diaphragm Blades

16

Gear MOD & Pitch

Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch

Front Diameter

80 mm

Filter Thread

77 mm

Focus Scales

Imperial

Focus Rotation

270°

Iris Rotation

77°

Zoom Rotation

100°

Zoom Ratio

2.3x

Electronic Communication

No

Image Stabilization

No

Dimensions (W x H)

8.4 x 3.1" / 214.4 x 80 mm

Length

8.4" / 214.4 mm

Weight

3.4 lb / 1532 g
