DZOFilm Tango Bundle 18-90mm T2.9/60-280mm T2.9-4 S35 Zoom Lens PL&EF

by DZOFilm
Dostupnost: Isporuka 7-10 dana
SKU
DZO-T189029M/DZO-T6528029M

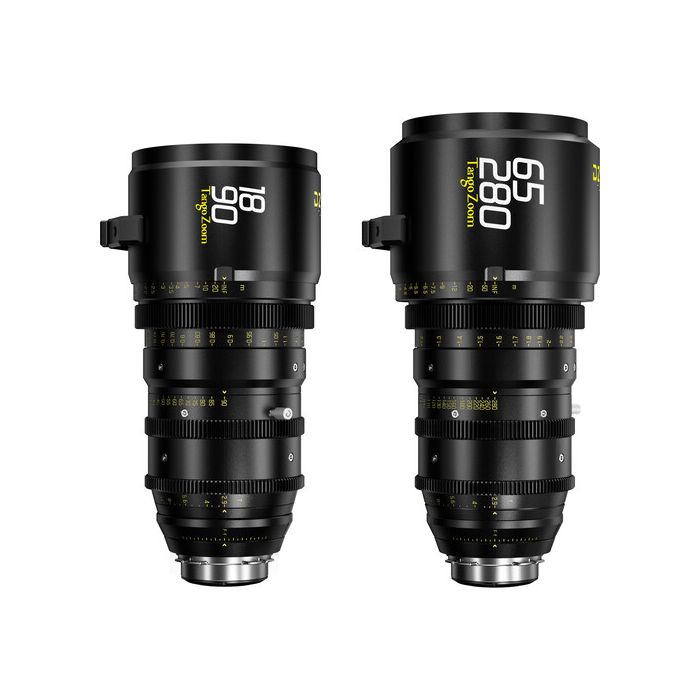

  • 18-90mm T2.9 S35 Zoom
  • 65-280mm T2.9-4 S35 Zoom
  • ARRI PL & Canon EF Mounts for Each Lens
  • Cinema Optics with ENG Functions
20.623,75 € 16.499,00 €

Sadržaj pakiranja

  • DZOFILM Tango 18-90mm T2.9 S35 Zoom Lens PL&EF mount - meter
  • Front Cap
  • ARRI PL Rear Cap
  • Canon EF Mount
  • Canon EF Rear Cap
  • Shim Set
  • Lens Support
  • 2 x Support Rod
  • DZOFilm Tango 65-280mm T2.9-4 S35 Zoom Lens PL&EF mount - meter
  • Front Cap
  • ARRI PL Rear Cap
  • Canon EF Mount
  • Canon EF Rear Cap
  • Shim Set
  • Lens Support
  • 2 x Support Rod
  • Hard-Shell Case

Versatile Coverage,Unlimited Perspective

The Tango series offers an impressive range of focal lengths, from wide-angle to telephoto, allowing filmmakers to capture everything from sweeping landscapes to intimate close-ups with stunning details.

With focal lengths spanning from 18mm to 280mm, the Tango lineup provides filmmakers with versatility and endless creative possibilities. The 18-90mm lens has a consistent T2.9 aperture throughout its 5x zoom range, while the 65-280mm lens boasts a T2.9 to T4 aperture with a 4.3x zoom ratio.

Cinematic Immersion with Artistic Colors

The Tango zoom series features advanced optical design that corrects chromatic aberrations for optimal image quality and color accuracy. This lineup ensures consistent colors, controlled distortion, and minimal focus breathing, delivering an immersive visual experience with unrivaled brilliance.

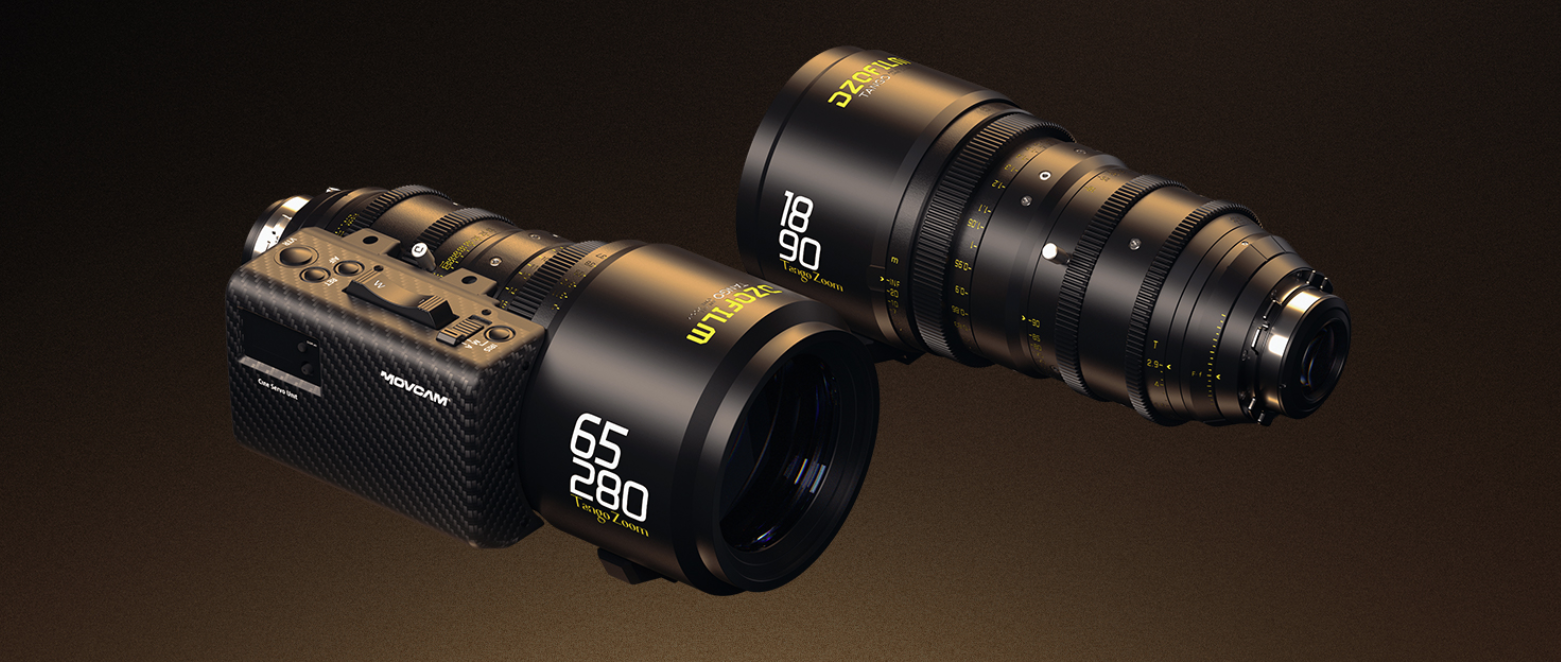

Seamless Integration with MOVCAM Servo Unit (Optional)

The Tango Zoom series combines cinema-grade optics with ENG-style functionality. These lenses support servo compatibility, integrating seamlessly with ENG cameras for remote control of focus, iris, and zoom. Ideal for broadcasting, events, and versatile shooting scenarios, they meet the demands of experienced cinematographers seeking professional performance.

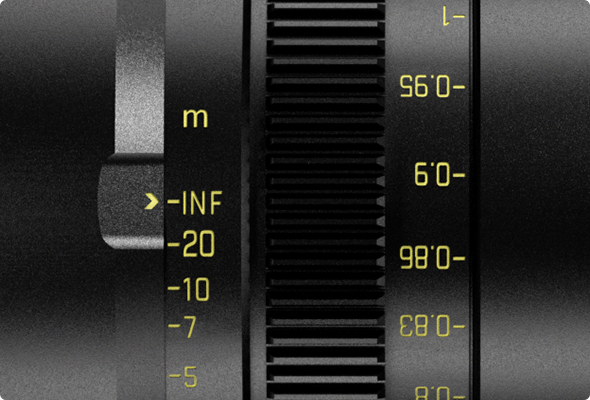

Fluorescent Markings for Practical Operation

Thoughtfully designed to accommodate the demands of low-light shooting, all focus ring, zoom ring, and aperture ring markings are coated with luminous paint.

This ingenious integration enhances clarity, empowering focus pullers and camera operators to effortlessly discern crucial details above the lens, elevating on-set efficiency.

Metric Scales

DZOFILM Tango 18-90mm T2.9 S35 Zoom Lens PL&EF mount - meter
Focal Length 18-90 mm
Colour Black
Mount PL / EF
Aperture T2.9-T22
Image Circle φ31.5mm(S35)
Construction Of Optics 24 Elements in 17 Groups
Flange Distance 52mm(PL)/44mm(EF)
Close Focus (From Sensor Plane) 0.7m/2ft3in
Zoom Ratio 5X
Iris Control Manual(74.1°)
Focus Control Manual(270°)
Zoom Control Manual(100°)
Front Dia. ∮114mm/4.48in
Length (From Lens Front To Flange Plane) 249.1mm/9.8" PL mount
  256.4mm/10.1" EF mount
256.4mm/10.1" EF mount
274.4mm/10.8" EF mount
Iris Blade 16
Filter Size M105
Gear Pitch 0.8 Mod
Material Aluminum Alloy
Weight(Product) ≈3539g
DZOFilm Tango 65-280mm T2.9-4 S35 Zoom Lens PL&EF mount - meter
Focal Length 65-280 mm
Colour Black
Mount PL / EF
Aperture T2.9/4-T22
Image Circle φ31.5mm(S35)
Construction Of Optics 21 Elements in 17 Groups
Flange Distance 52mm(PL)/44mm(EF)
Close Focus (From Sensor Plane) 1.1m/3ft7in
Zoom Ratio 4.31X
Iris Control Manual(73.5°)
Focus Control Manual(270°)
Zoom Control Manual(100°)
Front Dia. ∮114mm/4.48in
Length (From Lens Front To Flange Plane) 267.1mm/10.5" PL mount
  274.4mm/10.8" EF mount
Iris Blade 16
Filter Size M105
Gear Pitch 0.8 Mod
Material Aluminum Alloy
Weight(Product) ≈3962g
