Epiphan AV.io 4K

Dostupnost: Isporuka 14-20 dana
SKU
ESP1360

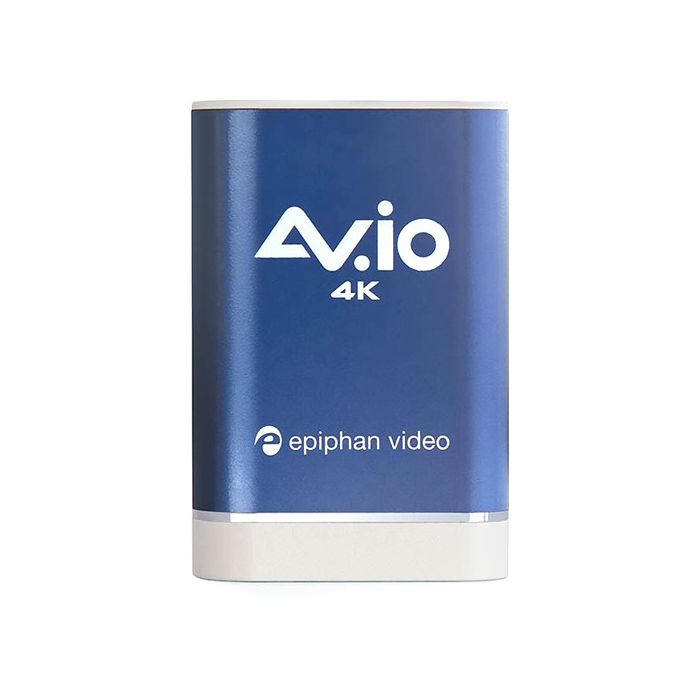

Transfer up to a 4K HDMI video signal to your computer with Epiphan's robust and compact AV.io 4K Video Grabber.

950,00 € 760,00 €

Sadržaj pakiranja

  • Epiphan AV.io 4K USB 3.0 Video Grabber
  • HDMI Cable (3')
  • USB 3.0 Cable (3')

Transfer up to a 4K HDMI video signal to your computer with Epiphan's robust and compact AV.io 4K Video Grabber.

This sleek capture device features an HDMI input and USB 3.0 output. It supports up to 4096 x 2160 (DCI 4K) resolution on input and allows you to retain the resolution on output or scale it up or down. Connect cameras, mobile devices, home entertainment devices, and other HDMI sources, and transmit the content to your computer with audio, uncompressed, and with near-zero latency.

The AV.io 4K is a UVC device that shows up on your computer as a webcam. As a UVC device it's designed to integrate with a capture software on your computer, and it's seamlessly compatible with all the popular capture software, including Wirecast, Skype, QuickTime, Adobe FMLE, VLC media player, Windows Camera, and any conferencing software. The captured data can be used for a variety of purposes, like high-end streaming, webcam applications requiring higher image quality than standard webcams offer, and for recording, such as if a doctor needs to capture an ultrasound.

The AV.io 4K is autodetected on Windows, Mac, and Linux systems, allowing for easy integration. Its USB 3.0 output is backwards-compatible with USB 2.0 but a USB 2.0 port will limit the maximum frame rate and resolution support.

The AV.io 4K has a tough build and can be relied on for long-term use. It has a metal exterior that's strong enough to withstand being dropped as well as stepped on. Included along with the grabber are a 3 ft HDMI cable and 3 ft USB 3.0 cable, so you'll be able to get started right away.

Note:
High-Bandwidth Digital Content Protection (HDCP) is a form of digital copy protection intended to prevent illegal copying of video and audio content. The AV.io 4K cannot capture from video sources protected by HDCP.

Key Features

  • Transfer up to a 4K HDMI video signal to your computer
  • HDMI input and USB 3.0 output
  • UVC device that seamlessly integrates with popular capture software
  • Up to 4096 x 2160 (DCI 4K) resolution on input and output
  • Up/down scaling on output
  • Near-zero latency
  • Autodetected on Windows, Mac, and Linux systems
  • Tough metal exterior
  • LED status indicators
  • HDMI and USB cables included
System Requirements Operating System:
Windows 8.1, 10
Mac OS X 10.10 +
Linux distribution with kernel 3.5.0 or higher

Processor:
2.4 GHz

RAM:
4 GB minimum recommended
Drivers Native UVC and UAC device autodetected by OS
Input 1 x HDMI (or DVI via optional adapter)
Output 1 x USB 3.0 type B connector with USB 2.0 backward compatibility

*For capturing 4K resolutions, Epiphan recommends using a computer with an Intel USB host controller (which is the most common type) to achieve the best results. With other USB host controllers, such as from ASM, AMD, VIA, Renesas, Eltron, Fresco, and TI, capture will be at 79 - 96% of the expected frame rate.
Supported Input Resolutions Standard and non-standard resolution from 640 x 360 to 4096 x 2160 (DCI 4K)
Output Resolutions 4096 x 2160 (DCI 4K) in YUY2 4:2:2 at 5, 10, 15, 20 fps and in NV12 4:2:0 at 15, 23.97, 24 fps

3840 x 2160 (UHD 4K) in YUY2 4:2:2 at 5, 10, 15, 20 fps and in NV12 4:2:0 at 15, 23.97, 24, 25, 29.97, 30 fps

640 x 360, 640 x 480, 960 x 540, 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 in YUY2 4:2:2 and NV12 4:2:0 at 15, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Scaling Output Scaling Options:
No scaling (1:1)
Preserve aspect ratio scaling
Aspect ratio conversion scaling
Supported Audio Captures PCM audio over HDMI at up to 24-bit 96 kHz. The two-channel stereo audio output has automatic resampling at 48 kHz and encodes in 16 bit.
Latency Near-zero, but 3rd-party applications may cause capture delay
HDCP HDCP is a form of digital copy protection intended to prevent illegal copying of video and audio content. AV.io 4K cannot capture from video sources protected by HDCP.
Dimensions 3.5 x 2.4 x 0.9" / 9 x 6 x 2.3 cm
