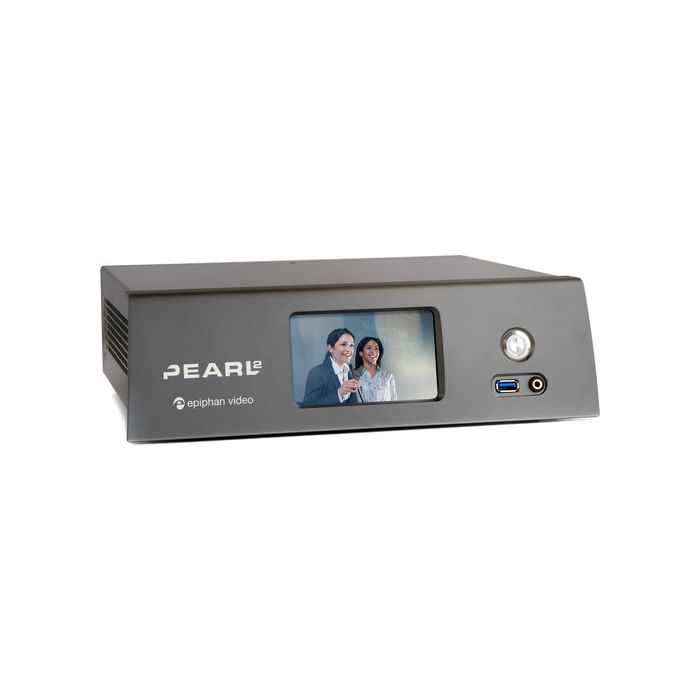

Epiphan Pearl-2

The Pearl-2 Base Video Mixer from Epiphan is a powerful live-production mixer that lets you create visually appealing live video programs by combining, encoding, switching, and recording up to six video sources and two audio sources. With Pearl-2 you can share any kind of video, anytime, anywhere. Simple to use with a web-based portal for initial configuration, you get a drag and drop interface to create completely customizable layouts for your live stream. You can choose to keep Pearl-2's default encoding settings or customize them to meet your exact needs. Control the video recorder and video switcher capabilities via the touchscreen or the tablet-friendly Epiphan Live interface.

Key Features

• Reliable, simple live streaming with Pearl-2's integrated live video production workflow
• Works with video sources from SD to 4K (separate add-on required for 4K)
• Connect up to six sources at once to encode and stream one 4K Ultra HD program, or up to six 1080p Full HD programs
• Use any combination of your video sources connected to the HDMI, 4K HDMI, or 12G-SDI video input ports, or from IP cameras over your network
• Sixth generation Intel i7 processor
• Use the touchscreen or Epiphan Live to preview and change the live content in your video programs
• See changes immediately in your live video stream, and on displays connected to Pearl-2’s 4K HDMI video output ports
• Simultaneously send live stream to YouTube, Facebook, and any other CDN or video portal
• At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes
• Control your streaming and recording from any mobile device or computer on your local network
• Capture embedded HDMI and SDI audio, or use the XLR/RCA ports for professional level audio from mixing consoles and sound equipment
• Built-in attenuation and gain adjustment
• Design your own custom layouts, including picture-in-picture, by using the drag and drop editor in Pearl-2’s web-based Admin panel
• Combine, crop, and scale up to six video sources
• Customize the video source completely with backgrounds, overlay images, text, and timestamping
• Hold hundreds of hours of HD recordings on the 512GB solid-state hard drive
• Configure automatic file transfer to a networked storage or local USB drive via USB 3.0, to ensure your files are always protected
• Connect your headphones and monitor audio using the front-mounted 3.5mm audio jack and on-screen VU meter
• Send the content to a larger confidence monitor with Pearl-2’s two 4K HDMI video output ports
• Use Pearl-2’s built-in streaming server to share via unicast or multicast stream to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP, and SAP
• Publish your live video stream to a large audience using an enterprise streaming server or CDN using RTMP or
• RTSP
• Supported CDNs including Facebook Live, YouTube, Wowza, Livestream, Akamai, Ustream, and more
• Stream your final program output, in any desired resolution, while also recording high quality ISOs for post-processing
• Pearl-2 integrates easily with content management systems (CMS) and with learning management systems (LMS) such as Blackboard, Kaltura, Mediasite, and Moodle
