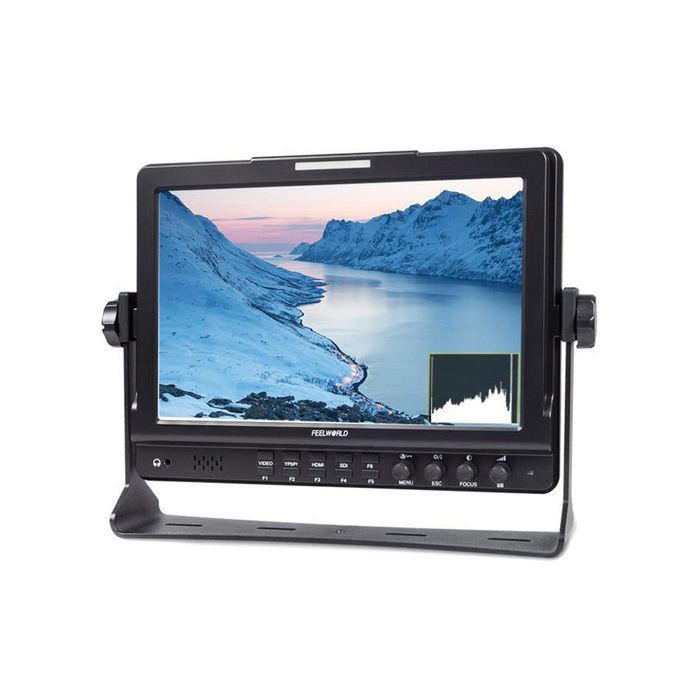

Feelworld FW1018SPV1 SDI monitor

by FeelWorld
Dostupnost: Isporuka 7-10 dana
SKU
FW1018SPV1
  • 1920 x 1200 Screen Resolution
  • SDI, HDMI, Analog I/O; Tally Input
  • Up to DCI 4K Resolution Support
398,25 € 318,60 €

Sadržaj pakiranja

  • FeelWorld 10" 4K IPS Professional Field Monitor
  • L-Series Battery Plate
  • Mini HDMI Cable
  • Foldable Sunshade
  • Shoe Mount
  • Tally Kit
  • U-Bracket

 Featuring a large screen, 1920 x 1200 resolution, and many image analysis tools, the 10" 4K IPS Professional Field Monitor from FeelWorld allows you to frame your shots with accuracy. It features 1/4"-20 mounting threads so you can attach it to your camera or camera rig, and it comes with a U-bracket so you can use it desktop-mounted. A sunshade is also supplied that lets you confidently monitor your image outdoors.

The monitor features SDI, HDMI, and analog inputs and outputs, audio and tally inputs, and a headphone jack and speaker. It supports up to DCI 4K resolution signals at 24 fps via the HDMI input and up to 1080p60 via the 3G-SDI input. Up to six of the image analysis tools can be assigned to function buttons on the front panel. An L-series battery plate comes included with the monitor but can be switched out for optional LP-E6, D28S, V-mount, or Gold mount plates. A battery is sold separately.

Key Features

  • 1920 x 1200 screen resolution
  • 170° IPS viewing angle
  • SDI, HDMI, and analog inputs and outputs
  • Audio and tally inputs
  • Headphone jack and speaker
  • Supports up to DCI 4K resolution signals at 24 fps via HDMI
  • Supports up to 1080p60 via 3G-SDI
  • Six assignable function buttons on front panel
  • L-series battery plate (interchangeable; D28S, LP-E6, V-mount, or Gold mount plates supported)
  • 320 cd/m² brightness
  • 800:1 contrast ratio

Image Analysis

  • Brightness histogram
  • Peaking focus assist
  • False colors
  • Zebra exposure (1-100 IRE adjustable)
  • Audio level meters for embedded audio monitoring
  • Check field (red, green, blue, mono)
  • Camera mode
  • Anamorphic mode (1.3x, 2.0x, 2.0x) - allows you to see the image unsqueezed, even if your camera does not de-squeeze in-camera
  • Image flip (H, V, H/V)
  • Image freeze
  • Center marker
  • Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Color temperature adjustment
  • Nine-grid (zoom in on an image to up to full screen - up to 1080p input only)
  • Zoom (4x, 9x, 16x - up to 1080p input only)
  • Pixel-to-pixel (up to 1080p)
  • Zoom-all (up to 1080p)
  • U/D zoom (up to 1080p)
  • L/R zoom (up to 1080p)

FeelWorld FW1018 Specs

Display

Panel Type

IPS-Type LCD

Display Size

10.00" / 25.4 cm

Resolution

1920 x 1200

Aspect Ratio

16:10

Viewing Angle

Horizontal: 170° (85/85)
Vertical: 170° (85/85)

Touchscreen

No

Maximum Brightness

320 cd/m2

Contrast Ratio

800:1

Dot Pitch

0.113 x 0.113 mm

Real-Time LUT Monitoring

No

I/O

Video

1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 1.4) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x BNC (3G-SDI) Output
1 x HDMI Type A (HDMI 1.4) Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output

Audio

1 x 2RCA Input

Built-In Speaker

1

Power I/O

1 x 4-Pin XLR Input

Other I/O

1 x Tally (DE-9/DB-9)

Media/Memory Card Slot

None

Format Support

Video Format

SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
480i
576i
HDMI
DCI 4K: 24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p
480p
480i
576i

Power

DC Input Power

6 to 36 VDC

Battery Type

1 x L-Series (Interchangeable Mount)

Power Consumption

12 W (Maximum)

Mounting

Mounting

3 x 1/4"-20 Female

Environmental

Operating Temperature

-4 to 131°F / -20 to 55°C

Storage Temperature

-22 to 149°F / -30 to 65°C

General

Dimensions

10.2 x 7.5 x 1.6" / 26 x 19 x 4 cm

Weight

1.76 lb / 0.8 kg

Packaging Info

Package Weight

3.57 lb

Box Dimensions (LxWxH)

12.05 x 10.6 x 3.35"
