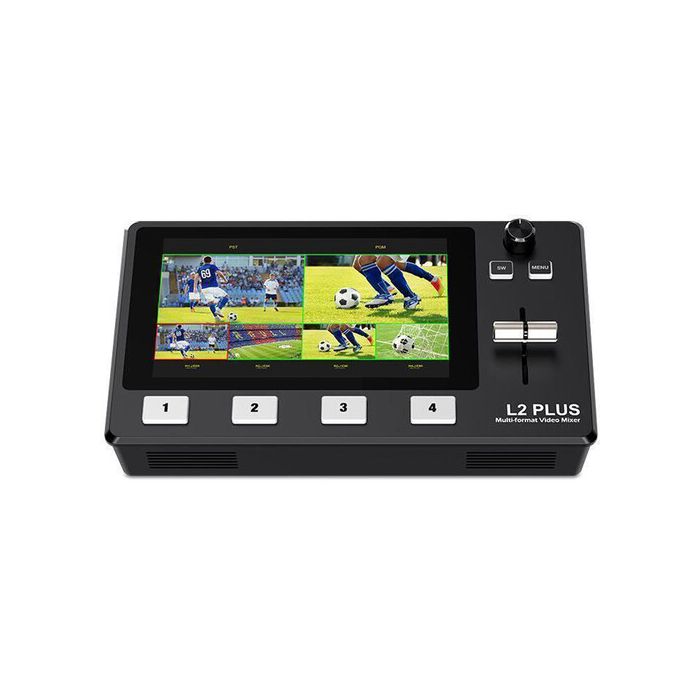

Feelworld LIVEPRO L2 PLUS Mini Switcher
by FeelWorld- 4-Channel Livestream HDMI/USB Switcher
- Input/Output up to 1080p60 Video
- 5" Touchscreen LCD Multiview Display
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld HDMI Live Stream Switcher with Built-In 5.5" LCD Monitor
- Power Adapter
- USB Cable
Live-switch, control, and stream up to four HDMI video sources such as PTZ cameras with transitions and effects using the HDMI Live Stream Switcher with Built-In 5.5" LCD Monitor from FeelWorld. The compact video switcher can switch up to four HDMI inputs, output program and preview video via one HDMI port, and stream up to 1080p60 video via USB with third-party streaming software. You can view up to six pictures on the 5.5" touchscreen display, including the four individual inputs, PGM preview, and PST preview.
The switcher allows you to switch between the inputs using the touchscreen or the large LED buttons that light up with green or red tally indicators, or it can be controlled via a computer or smartphone app. You can utilize the HDMI embedded audio or embed audio from a microphone or external source using the 3.5mm stereo input jack. There is also a 3.5mm output jack to de-embed the audio for use with external speakers or an audio mixer. You can monitor all four inputs using the built-in color TFT display on the unit, or you can output Program/Preview via the HDMI output. It supports video output up to 1080p60 via USB for use with a variety of third-party streaming software or NLE video editing systems.
Key Features
- 5.5" Full HD IPS screen; provides real picture
- Touchscreen operation; easy to use
- Real-time six-picture preview (four input sources + PST preview + PGM output picture)
- USB 3.0 fast livestreaming via computer
- PTZ camera control for up to eight cameras
- Chroma key and logo overlay
- T-bar easily switches transition effects and signal sources
- 15 transition effects and nine PiP modes
- Audio offers embedded or 3.5mm line-in mode
- Remote control via computer or smartphone app
CAME-TV L2-PLUS Specs
Processing
Switching Type |
Pushbutton |
Input
Number of Video Input Sources |
4 |
Video Input Connectors |
4 x HDMI Female |
Input Video Format |
HDMI |
Audio Input Connectors |
1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format |
Analog |
Embedded Audio Input |
HDMI |
Output
Video Output Channels |
2 |
Video Output Connectors |
1 x HDMI Female (Program) |
Output Video Format |
HDMI |
Audio Output Connectors |
1 x 1/8" / 3.5 mm TRS Analog Female (Loop Output) |
Output Audio Format |
Analog |
Embedded Audio Output |
HDMI |
Connectivity
Other I/O |
1 x RJ45 Control, LAN, PTZ Input/Output |
HDCP Support |
None |
Display
Display Size |
5.5" |
Power Connector |
1 x Barrel (12 VDC at 2 A) Input |
Power Consumption |
Device: 21 W |
Environmental
Operating Temperature |
32 to 122°F / 0 to 50°C |
Operating Humidity |
5 to 85% |
General
Dimensions |
7.5 x 4.3 x 1.7" / 191 x 110 x 43 mm |
Weight |
1.3 lb / 610 g |
