Feelworld Livepro L1 Video Switcher & Live Streaming
by FeelWorld4 x HDMI Inputs, 1 x HDMI Output
LAN/USB Live Streaming, PC/App Control
Manual T-Bar, Function Buttons/Knobs
3.5mm Audio Input and Output
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld LIVEPRO L1 Multicamera Video Switcher with 4 x HDMI Inputs & USB Streaming
- AC Adapter
- USB Cable

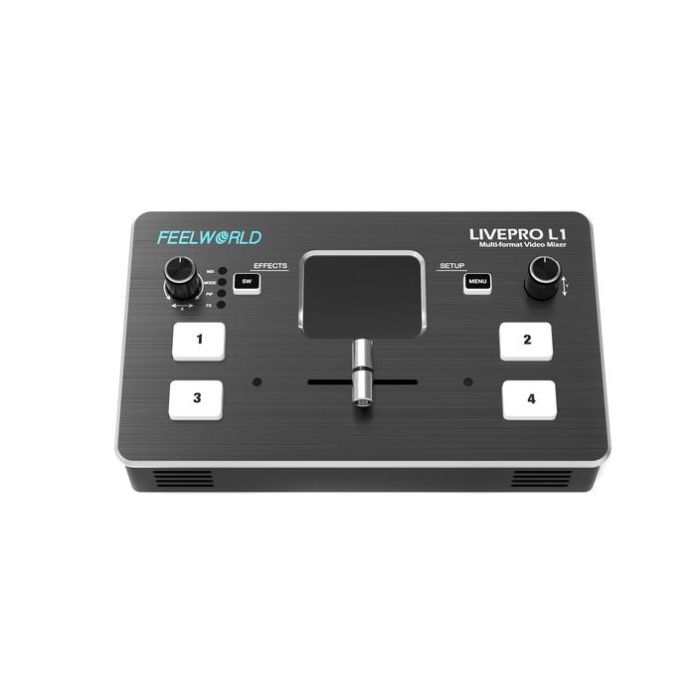

Switch live HDMI sources and output via USB for live streaming with this LIVEPRO L1 Multicamera Video Switcher with 4 x HDMI Inputs & USB Streaming from FeelWorld. The video switcher is a portable solution for HD video production that accommodates up to four HDMI inputs. You can control the switcher manually by using the built-in controls or connect it to a computer running optional software for additional control options. Select your working resolution and switch between your four input sources. Built into the switcher is an audio mixer that can embed audio signals from the 3.5mm analog audio input with the HDMI video signals.
There are USB and RJ45 LAN outputs that allow you to live stream via a computer to the internet or a broadcast, and you can also utilize a smartphone for control using an app. The HDMI output provides PGM (program) output with up to six sources. The built-in 2" TFT LCD allows you to view up to four PVW (preview) sources from your HDMI ports. It also supports Picture-in-Picture (PiP) mode, as well as DSK and PTZ control with optional software.
The integrated T-fader allows you to perform 14 different transition effects and manually control the speed of transitions. The unit features a program and multiview preview output, as well as an analog audio input and output.
Video switcher with four HDMI inputs and one HDMI output
Up to 1080p60 video input and output support
2" TFT display with live preview, 6-picture PVW (preview) and PGM (program) output over HDMI
Auto cut and 14 manual transitions supported with center T-bar
UVC-compliant USB video output for live streaming
Embedded audio or via external source via 3.5mm analog audio input
3.5mm analog audio output jack
Control using manual controls and buttons or via a PC or smartphone app
PiP (Picture-in-Picture) support
Optional DSK and PTZ camera control
Switching Type | Pushbutton, Software, T-Bar |
Processing Resolution | 1080p at 60 |
Number of Video Input Sources | 4 |
Video Input Connectors | 4 x HDMI Female |
Input Video Format | HDMI 1080p: 23.98/24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps FWXGA (1366 x 768): 60 fps SXVGA (1280 x 1024): 60 fps UXGA (1600 x 1200): 60 fps WUXGA+ (1680 x 1050): 60 fps WXGA (1280 x 800): 60 fps WXGA+ (1440 x 900): 60 fps XGA (1024 x 768): 60 fps |
Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Analog Female |
Embedded Audio Input | HDMI |
Video Output Channels | 1 |
Video Output Connectors | 1 x HDMI Female (Program) 1 x RJ45 Female |
Output Video Format | HDMI 1080p: 60 fps 720p: 60 fps FWXGA (1366 x 768): 60 fps WUXGA+ (1680 x 1050): 60 fps WXGA+ (1440 x 900): 60 fps SXGA (1280 x 1024): 60 fps WXGA (1280 x 800): 60 fps XGA (1024 x 768): 60 fps |
Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Analog Female |
Multiview Output | 6-Way Multiview |
Monitor Output | 1 x HDMI |
Other I/O | 1 x USB Type-A Output |
HDCP Support | None |
Display Size | 2" |
Power Connector | 1 x Barrel (12 VDC at 1.5 A) Input |
Power Consumption | Device: 18 W |
Operating Temperature | -22 to 122°F / -30 to 50°C |
Operating Humidity | 10 to 85% |
