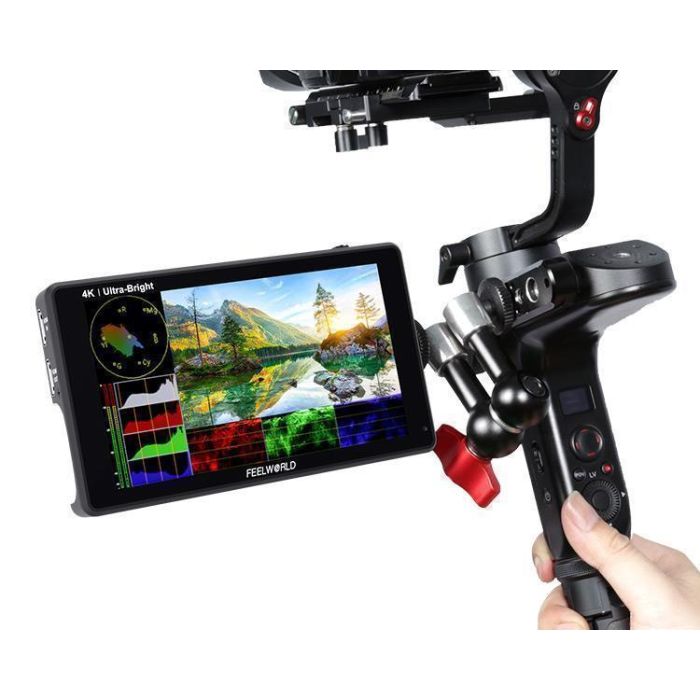

Feelworld LUT6 6" Touch Screen HDMI Monitor

by FeelWorld
Dostupnost: Dostupno
SKU
LUT6
  • 6" IPS
  • 1920x1080 pixels
  • 16:9
  • 2600cd/m²
375,00 € 300,00 €

Sadržaj pakiranja

  • Feelworld LUT6 6" Touch Screen HDMI Monitor
  • Mini/ Micro HDMI to HDMI Cable
  • Tilt Arm

Support 3D LUT Log to Rec.709, user 3D LUT Upload
Support Touch Menu
Support HDR Monitoring
High Resolution: Full HD 1920x1080, High Contrast: 1000:1
2600nit Daylight Viewable
160° wide viewing angles IPS Panel
Provides auxiliary power out; allowing shooters to power their cameras
Parade (RGB, YUV, Y)
Vector Scope
RGB Histogram
Histogram
Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
False Colors
Zebra Exposure (1%~100% adjustable)
Scan Mode (Under Scan, Over Scan)
Zoom (100%~300%)
Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
Pixel to Pixel
Nine Grid
Center Marker
Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
Marker Color (red, green, blue, white, black, yellow)
Check Field (red, green, blue, gray)
Image Flip (H, V, H/V)
Image Freeze
Color Temperature Adjustment

Display Spec.
 Model  LUT6
 Screen Size  6" IPS
 Resolution  1920x1080 pixels
 Pixel Pitch  0.069 (L) x 0.069 (W) (mm)
 Aspect Ratio  16:9
 Brightness  2600cd/m²
 Contrast Ratio  1000:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)

Input
 1 X HDMI  HDMI

Output
 1 X HDMI  HDMI
 1 X DC  Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
 Audio  3.5mm Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (30/29.97/25/24/23.98)
4096×2160p (30/29.97/25/24/23.98)

General
 Input Voltage  DC7~24V
 Power Consumption  ≤16W
 Working Temperature  -20°C~50°C
 Storage Temperature  -30°C~60°C
 Install Way  1/4"-20 Thread Socket (Right, Bottom)
 Battery Plate  F970 Battery Plate
 Unit Size  162Lx93.2Hx29D(mm)
 Unit Weight  300g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Support HDR Monitoring
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
