FeelWorld S55 5.5" Monitor
by FeelWorld5.5" 1280 x 720 HDMI Monitor
Supports up to DCI 4K Input & Output
500 cd/m² Brightness / 1000:1 Contrast
Sony L-Series/Canon LP-E6 Battery Plate
160° Viewing Angle
Histogram / Focus Peaking / False Color
Rec. 709 HD Color Gamut
3.5mm Stereo Headphone Jack
360° Tilt Arm with Cold Shoe
Sunshade Included
- Plaćanje na rate Plaćajte na rate Visa, Visa Premium, Maestro, MasterCard i Diners kreditnim karticama. Naknada je 5% na objavljenu cijenu a zaračunava se u košarici prilikom odabira plaćanja. Više detalja provjerite na linku Načini plaćanja.
- Brza dostava Za sve narudžbe unutar RH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana*. Za cijelu Europu vršimo brzu dostavu, a više detalja provjerite na linku Načini dostave.
- Međunarodna kupnja EU tvrtke(osim RH) s valjanim VAT ID brojem plaćaju cijenu bez PDV-a. Cijena će se obračunati prilikom check out-a. Svi kupci izvan EU plaćaju izvoznu cijenu bez PDV-a.
Sadržaj pakiranja
- FeelWorld S55 5.5" Lightweight HDMI Monitor with 4K Input/Output
- 1/4"-20 Threaded Mount
- 2 x Mounting Screw
- Micro-HDMI Cable
- Sunshade
- Tilt Arm

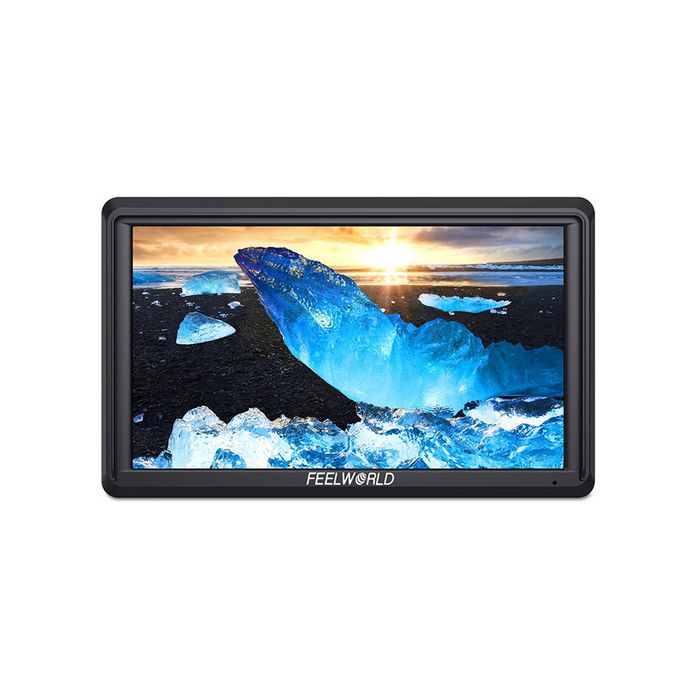

Suitable for both gimbal and handheld use, the lightweight, compact S55 5.5" HDMI Monitor from FeelWorld features a bright 5.5" IPS LCD screen, 4K input and output, multiple display features, and the ability to power select cameras via its 8.4 VDC output.
The S55 features a native 1280 x 720 resolution, a 160° viewing angle, 500 cd/m² brightness, a contrast ratio of 1000:1, and support for video resolutions up to DCI 4K. Advanced monitoring features include Rec. 709 color, histogram, focus assist, false colors, zebra, zoom, image flip, and more. Three user-assignable buttons enable you to quickly access your most frequently used functions.
Mount the S55 monitor via its 1/4"-20 thread that can be positioned on the side or bottom, or use the included tilt arm to mount it on your camera or stabilizer's shoe mount. The S55 is powered by one Sony L-series or Canon LP-E6 battery using its built-in, dual-purpose battery mount. Use the 8.4 VDC barrel output and a separately available dummy battery to power select DSLR or mirrorless cameras. A micro-HDMI cable and a sunshade to protect the monitor from sunlight are included with the S55 monitor.
5.5" LCD Display
Lightweight monitor with a 1280 x 720 resolution display
4K Input & Output wit Multirate Support
Supports up to DCI 4K at 24p, UHD 4K at 60p, 1080p60, and SD video resolutions
Tilt Arm Mount
The included arm provides 360° of tilt, attaches to your camera's shoe mount, and has a built-in shoe for mounting an accessory
Outputs Power to Select Cameras
Use with a separately available Sony L-series or Canon LP-E6 dummy battery to power select 8.4V cameras
User-Assignable Buttons
Use the three user-assignable buttons to quickly access your most-used functions
Sunshade
When shooting in bright sunlight, the included sunshade reduces glare and reflections for easier viewing
Display Features
- Histogram
- Embedded audio
- Focus peaking (red, green, blue)
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Underscan and overscan
- Check field (red, green, blue, mono)
- Anamorphic mode (1.3x, 2.0x, 2.0x magnification, user-adjustable 1.2x to 2.0x)
- Image flip (H, V, H/V)
- Image freeze
- Center marker
- Safe area (80, 85, 90, 93, and 96%, 2.35:1)
- Aspect ratios (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, and 2.35:1)
- Color temperature adjustment
- Nine-grid zoom
- Zoom (4x, 9x, 16x)
- Pixel-to-pixel
- Zoom all (0 to 100)
- U/D and L/R zoom (0 to 100)
Panel Type | IPS-Type LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1280 x 720 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 160° Vertical: 160° |
Touchscreen | No |
Maximum Brightness | 500 cd/m2 |
Contrast Ratio | 1000:1 |
Dot Pitch | 0.0315 x 0.0945 mm |
Pixels Per Inch (ppi) | 267 ppi |
Color Gamut | 100% Rec. 709 |
Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel Zoom, Screen Markers, Underscan, Zebra |
Wi-Fi | None |
Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
Embedded Audio | HDMI |
Audio | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power | 1 x Barrel Input |
Card Slot | None |
Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080PsF: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
Battery Type | 1 x LP-E6, L-Series |
Power Consumption | 9 W (Typical) |
Mounting | 1 x 1/4"-20 Female |
Operating Temperature | -4 to 131°F / -20 to 55°C |
Storage Temperature | -22 to 149°F / -30 to 65°C |
Dimensions | 5.6 x 3.4 x 1.1" / 142 x 87.2 x 27.5 mm |
Weight | 6.17 oz / 175 g |
Warranty Length | Limited 1-Year Warranty |
Package Weight | 1.32 lb |
Box Dimensions (LxWxH) | 7.3 x 5.05 x 3.45" |
